Sc2450 (54AEG4RV727) - Cub Cadet Yanmar Sc Series Compact Tractor Seat Stay Parts Diagram

Sc Series Compact Tractor

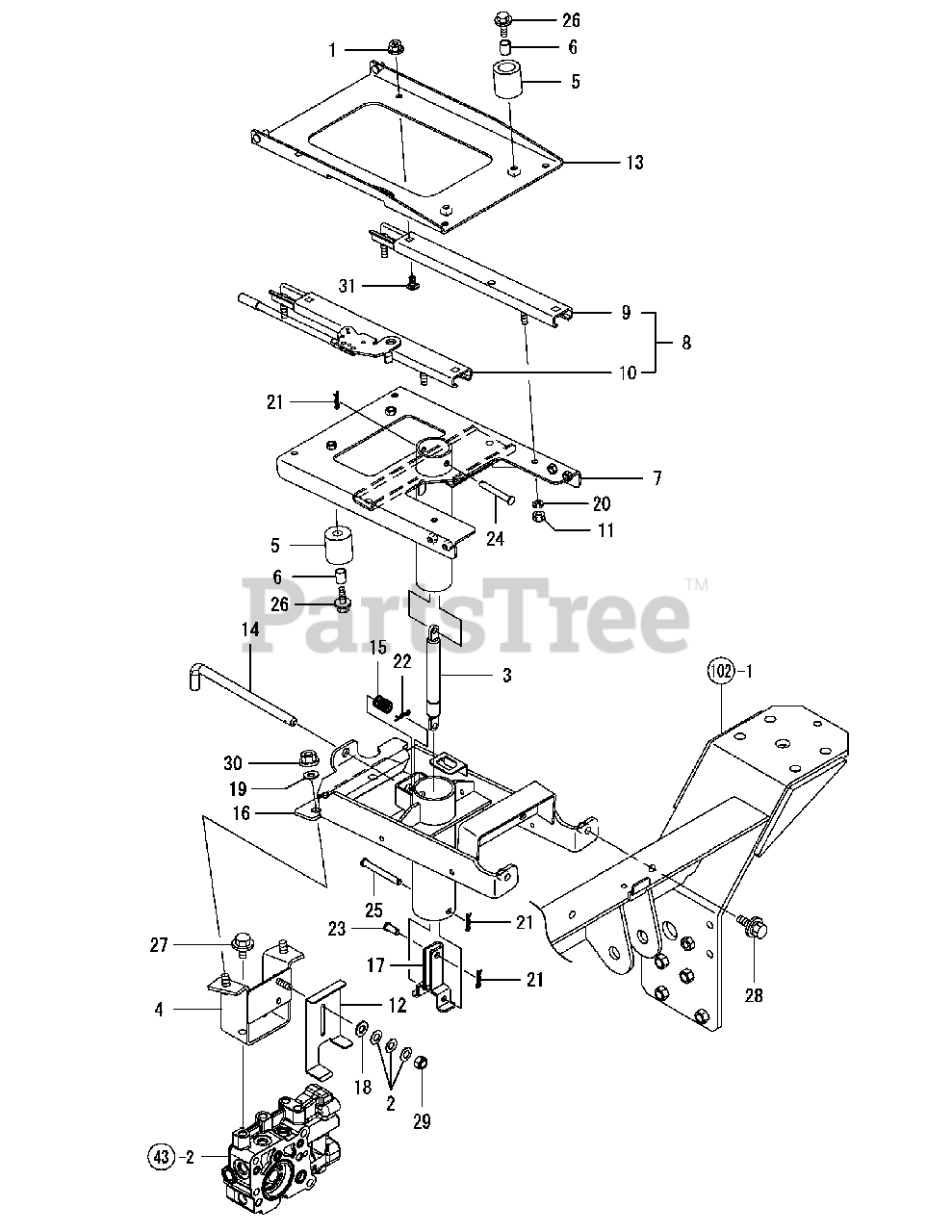

Seat Stay Parts Diagram

  • Title

1

Cub Cadet CY-194990-22140

NUT W/WASHER 8

$

$

Not available

2

Cub Cadet CY-194300-37570

SPRING, CONICAL

$

$

Not available

3

Cub Cadet CY-1A7880-61370

SPRING, GAS

$

$

Not available

4

Cub Cadet CY-1A7880-63200

STAY (SEAT CMP)

$

$

Not available

5

Cub Cadet CY-194151-63240

RUBBER, CUSHION

$

$

Not available

6

Cub Cadet CY-194151-63250

COLLAR

$

$

Not available

7

Cub Cadet CY-1A7882-63300

STAY ASSY, A RAIL

$

$

Not available

8

Cub Cadet CY-1A7880-63390

STAY KIT, RAIL

$

$

Not available

9

Cub Cadet CY-1A7880-63400

RAIL CMP, SEAT

$

$

Not available

10

Cub Cadet CY-1A7880-63410

RAIL CMP, SEAT LEVER

$

$

Not available

11

Cub Cadet CY-1A7880-63420

UNC NUT 5/16-18

$

$

Not available

12

Cub Cadet CY-1A7880-63450

PLATE, SWITCH

$

$

Not available

13

Cub Cadet CY-1A7882-63500

STAY ASSY, B RAIL

$

$

Not available

14

Cub Cadet CY-1A7882-63550

PIN, LOCK SEAT

$

$

Not available

15

Cub Cadet CY-1A7882-63560

SPRING, SEAT STAY

$

$

Not available

16

Cub Cadet CY-1A7882-63600

BRACKET ASSY, SEAT

$

$

Not available

17

Cub Cadet CY-1A7882-63700

STAY ASSY, GAS SPRING

$

$

Not available

18

Cub Cadet CY-22137-080000

WASHER 8, POLISHED

$

$

Not available

19

Cub Cadet CY-22137-100000

WASHER 10, POLISHED

$

$

Not available

20

Cub Cadet CY-22217-080000

WASHER, 8

$

$

Not available

21

Cub Cadet CY-22372-080000

SNAP PIN (JASO 8)

$

$

Not available

22

Cub Cadet CY-22372-120000

SNAP PIN 12

$

$

Not available

23

Cub Cadet CY-22487-080160

PIN, H8X16

$

$

Not available

24

Cub Cadet CY-22487-080550

PIN 8X 55

$

$

Not available

25

Cub Cadet CY-22487-080650

PIN 8X 65

$

$

Not available

26

Cub Cadet CY-26106-080252

BOLT M 8X 25 PLATED

$

$

Not available

27

Cub Cadet CY-26106-100162

BOLT M10X 16 PLATED

$

$

Not available

28

Cub Cadet CY-26014-100252

BOLT 10X25 W/PLW SPW

$

$

Not available

29

Cub Cadet CY-26346-080002

U-NUT M 8

$

$

Not available

30

Cub Cadet CY-26366-100002

NUT M10

$

$

Not available

31

Cub Cadet CY-26487-080163

BOLT 8 X 16

$

$

Not available

Note:43-2 Refers to Power Pump, Ref No. 2

$

$

Not available

Note:102-1 Refers to Lower Frame, Ref No. 1

$

$

Not available
