Sc2450 (54AGG4RV727) - Cub Cadet Yanmar Sc Series Compact Tractor Front Grille Guard Parts Diagram

Sc Series Compact Tractor

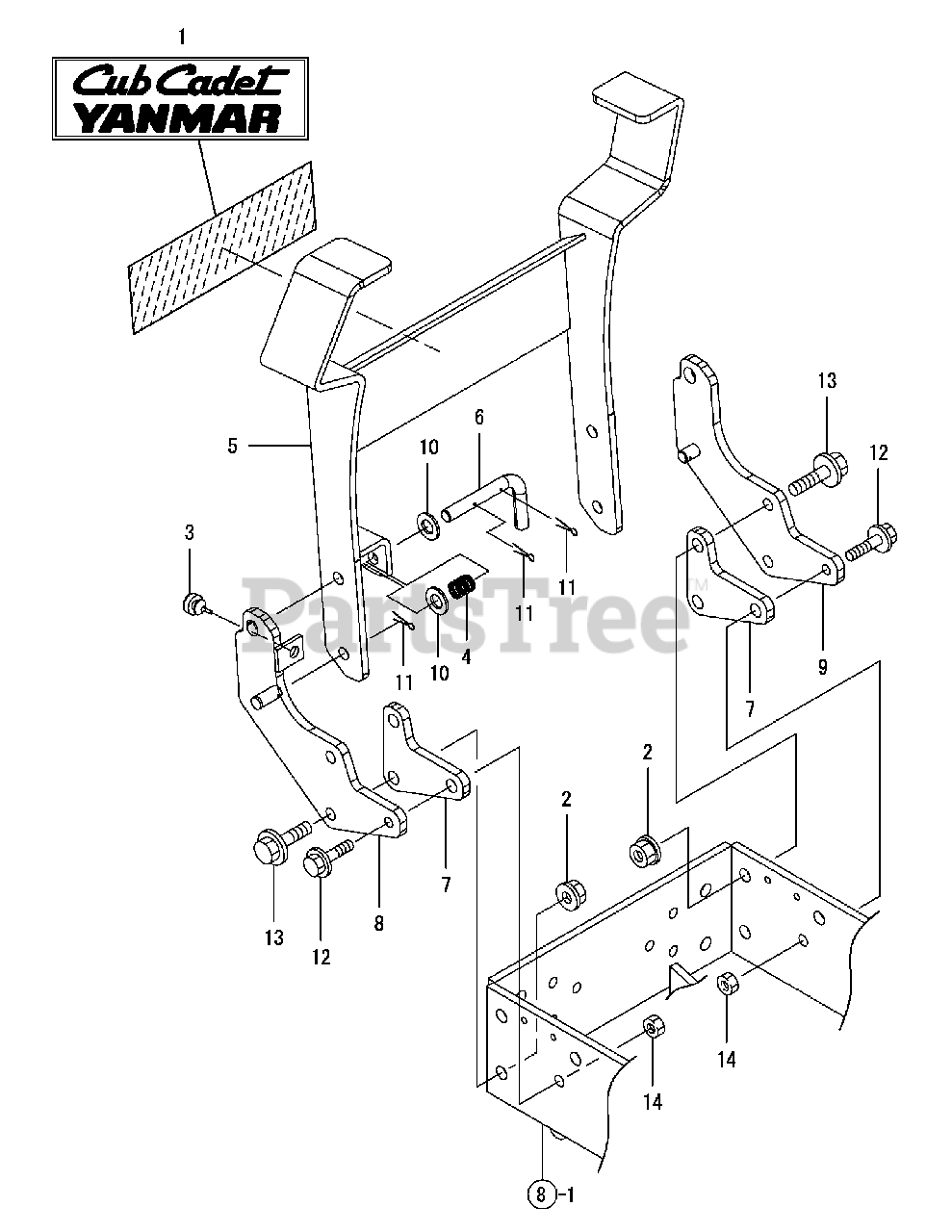

Front Grille Guard Parts Diagram

  • Title

1

Cub Cadet CY-1TN322-01630

LABEL, GRILL GUARD

$

$

Not available

2

Cub Cadet CY-194990-22160

NUT W/WASHER 12

$

$

Not available

3

Cub Cadet CY-194330-62530

STOPPER, PEDAL

$

$

Not available

4

Cub Cadet CY-1A7882-63560

SPRING, SEAT STAY

$

$

Not available

5

Cub Cadet CY-1A7882-93000

GUARD ASSY, GRILLE

$

$

Not available

6

Cub Cadet CY-1A7882-93050

PIN

$

$

Not available

7

Cub Cadet CY-1A7882-93060

SPACER

$

$

Not available

8

Cub Cadet CY-1A7882-93100

BRACKET ASSY, L

$

$

Not available

9

Cub Cadet CY-1A7882-93110

BRACKET ASSY, R

$

$

Not available

10

Cub Cadet CY-22137-140000

WASHER 14,POLISHED

$

$

Not available

11

Cub Cadet CY-22417-250300

COTTER PIN 2.5X30

$

$

Not available

12

Cub Cadet CY-26106-100402

BOLT M10X 40 PLATED

$

$

Not available

13

Cub Cadet CY-26106-120452

BOLT, M12X45

$

$

Not available

14

Cub Cadet CY-26716-100002

NUT 10

$

$

Not available

Note:8-1 Refers to Frame, Ref No. 1

$

$

Not available
