Sc2450 (54AGG4RV727) - Cub Cadet Yanmar Sc Series Compact Tractor Lower Frame Parts Diagram

Sc Series Compact Tractor

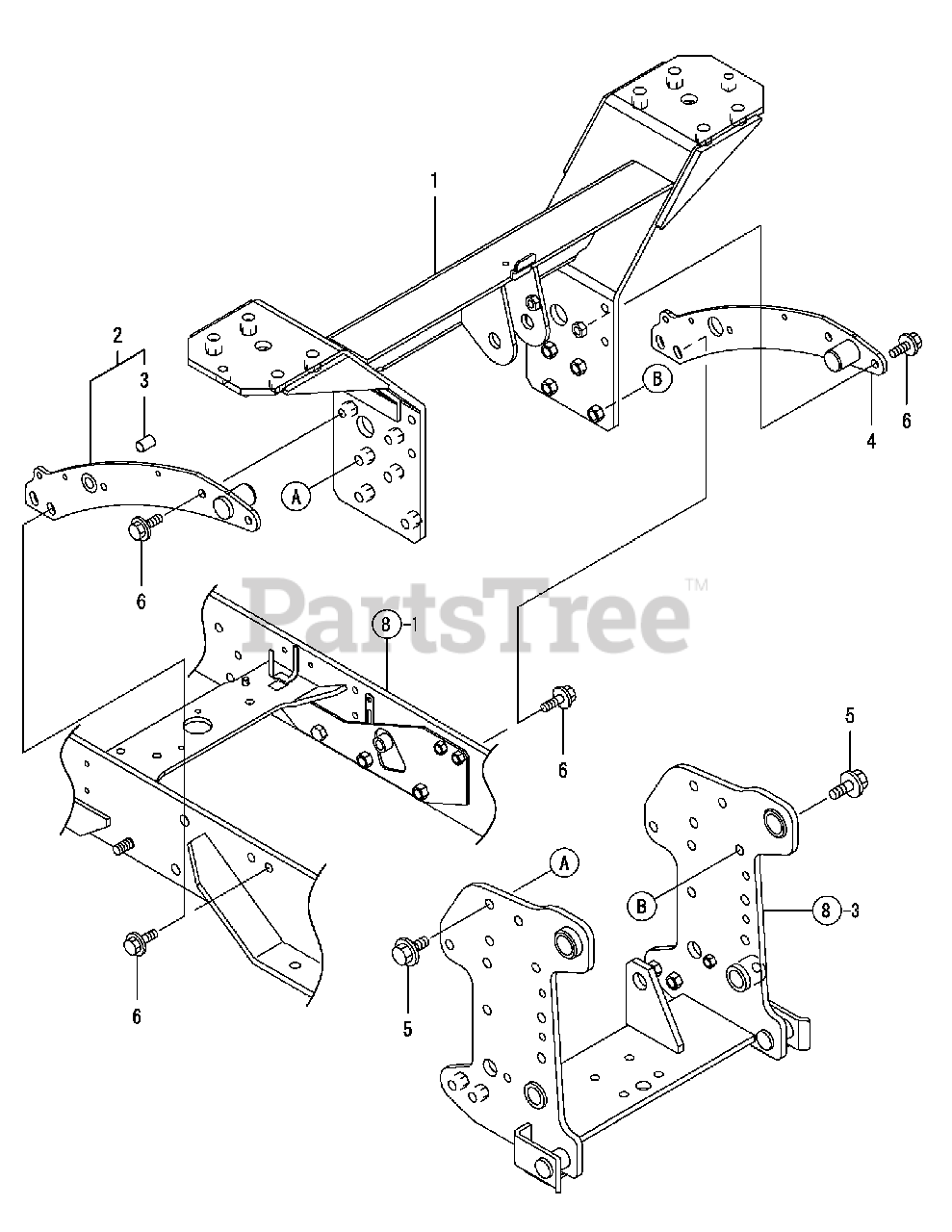

Lower Frame Parts Diagram

  • Title

1

Cub Cadet CY-1A7882-85300

FRAME ASSY, LOWER

$

$

Not available

2

Cub Cadet CY-1A7882-85490

PLATE ASSY, SIDE L

$

$

Not available

3

Cub Cadet CY-24550-012200

BUSH 12X20

$

$

Not available

4

Cub Cadet CY-1A7882-85550

PLATE ASSY, SIDE R

$

$

Not available

5

Cub Cadet CY-1A6770-85920

BOLT 12X30

$

$

Not available

6

Cub Cadet CY-26106-100302

BOLT M10X 30 PLATED

$

$

Not available

Note:8-1 Refers to Frame, Ref No. 1

$

$

Not available

Note:8-3 Refers to Frame, Ref No. 3

$

$

Not available
