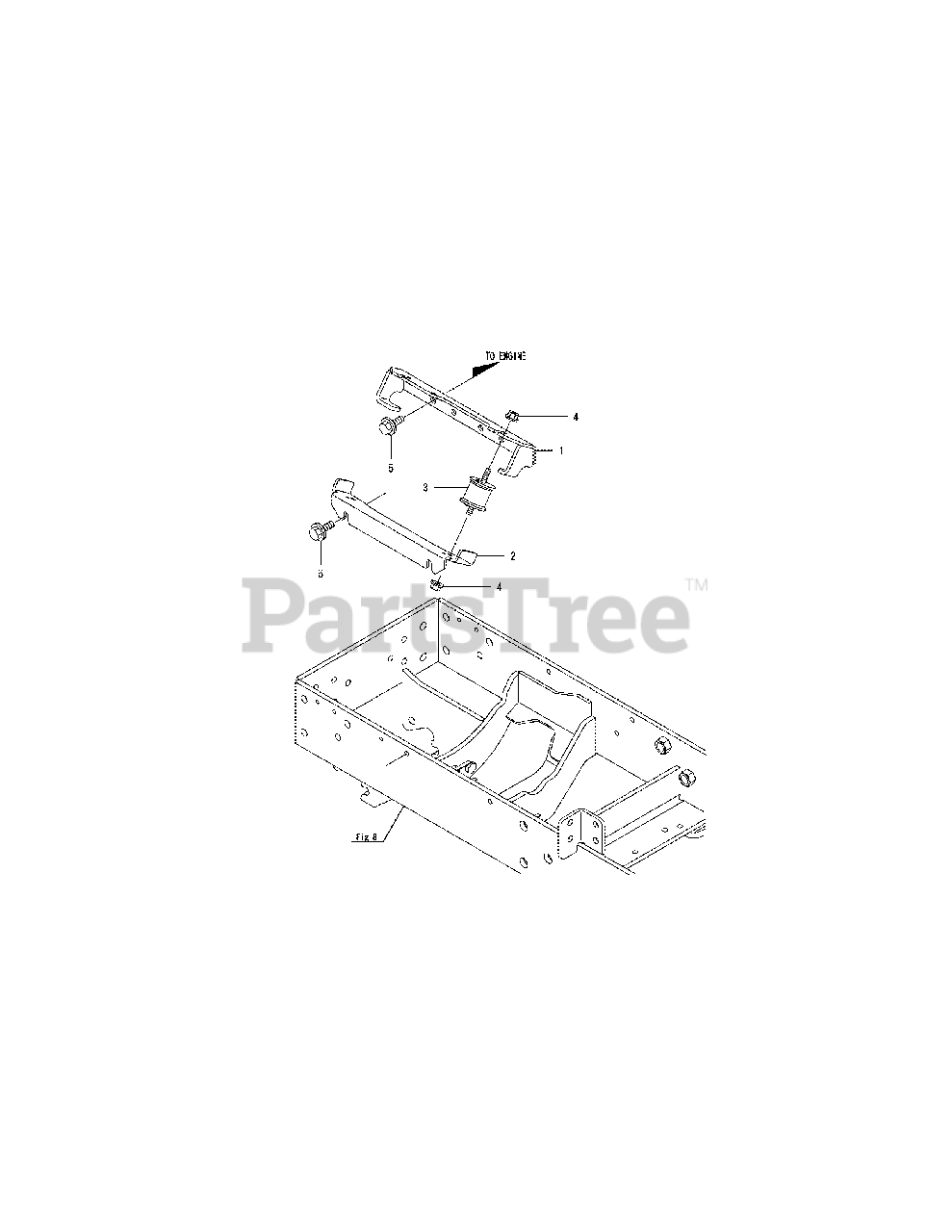

Sc2450 (54B-G4TV727) - Cub Cadet Yanmar Sc Series Compact Tractor Engine Mount (SN 020101 & After) Parts Diagram

Sc Series Compact Tractor

Engine Mount (SN 020101 & After) Parts Diagram

  • Title

1

Cub Cadet CY-1A7882-10800

STAY ASSY, ENGINE

$

$

Not available

2

Cub Cadet CY-1A7882-10900

STAY, MOUNT FRAME

$

$

Not available

3

Cub Cadet CY-1A7130-11790

RUBBER MOUNT

$

$

Not available

4

Cub Cadet CY-194990-22140

NUT W/WASHER 8

$

$

Not available

5

Cub Cadet CY-26106-100202

BOLT M10X 20 PLATED

$

$

Not available

Note:8 Refers to Frame page

$

$

Not available
