Sc2450 (54BEG4TV727) - Cub Cadet Yanmar Sc Series Compact Tractor Engine Cooling Water System Parts Diagram

Sc Series Compact Tractor

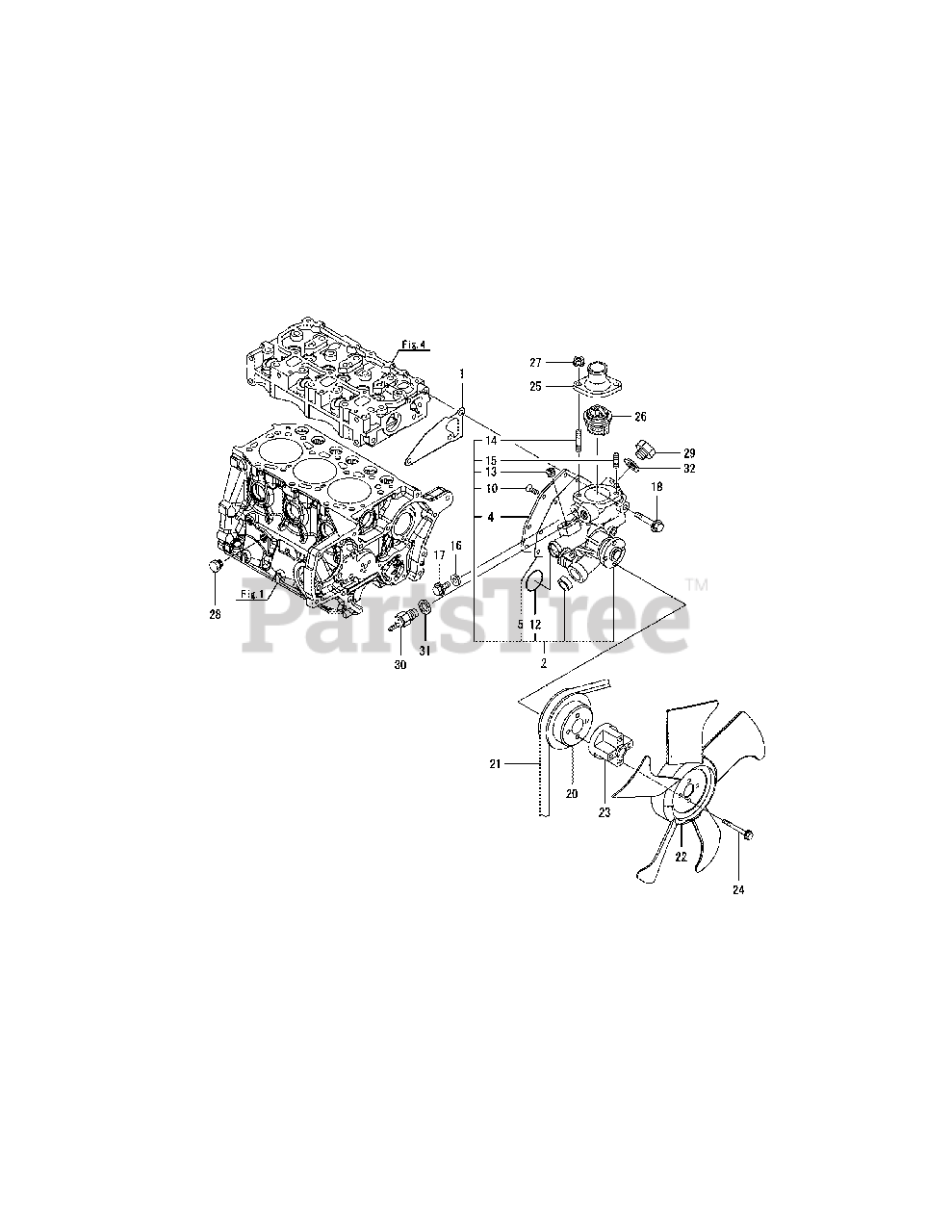

Engine Cooling Water System Parts Diagram

  • Title
1

Cub Cadet CY-119515-42020

GASKET, WATER PUMP

$

$

Not available

2

Cub Cadet CY-119025-42040

PUMP ASSY, WATER

$

$

Not available

4

Cub Cadet CY-119026-42020

COVER, WATER PUMP

$

$

Not available

5

Cub Cadet CY-119026-42030

GASKET, WATER PUMP

$

$

Not available

10

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

15

Cub Cadet CY-26216-080202

STUD M 8X 20 PLATED

$

$

Not available

16

Cub Cadet CY-23414-080000

GASKET 8, ROUND

$

$

Not available

17

Cub Cadet CY-26106-080122

BOLT M 8X 12 PLATED

$

$

Not available

18

Cub Cadet CY-26106-080452

BOLT M 8X 45 PLATED

$

$

Not available

20

Cub Cadet CY-119740-42350

V-PULLEY, WATER PUMP

$

$

Not available

$

$

Not available

22

$

$

Not available

23

$

$

Not available

24

Cub Cadet CY-26106-060552

BOLT M 6X 55 PLATED

$

$

Not available

25

Cub Cadet CY-129350-49530

COVER, THERMOSTAT

$

$

Not available

$

$

Not available

$

$

Not available

28

$

$

Not available

$

$

Not available

30

Cub Cadet CY-121250-44901

SWITCH, THERMOSTAT

$

$

Not available

$

$

Not available

$

$

Not available
