SCR48-25CH - Scag Cougar 48" Zero-Turn Mower, 25hp Kohler (SN: 5590001 - 5599999) Engine And Attaching Parts Parts Diagram

Cougar 48" Zero-Turn Mower, 25hp Kohler

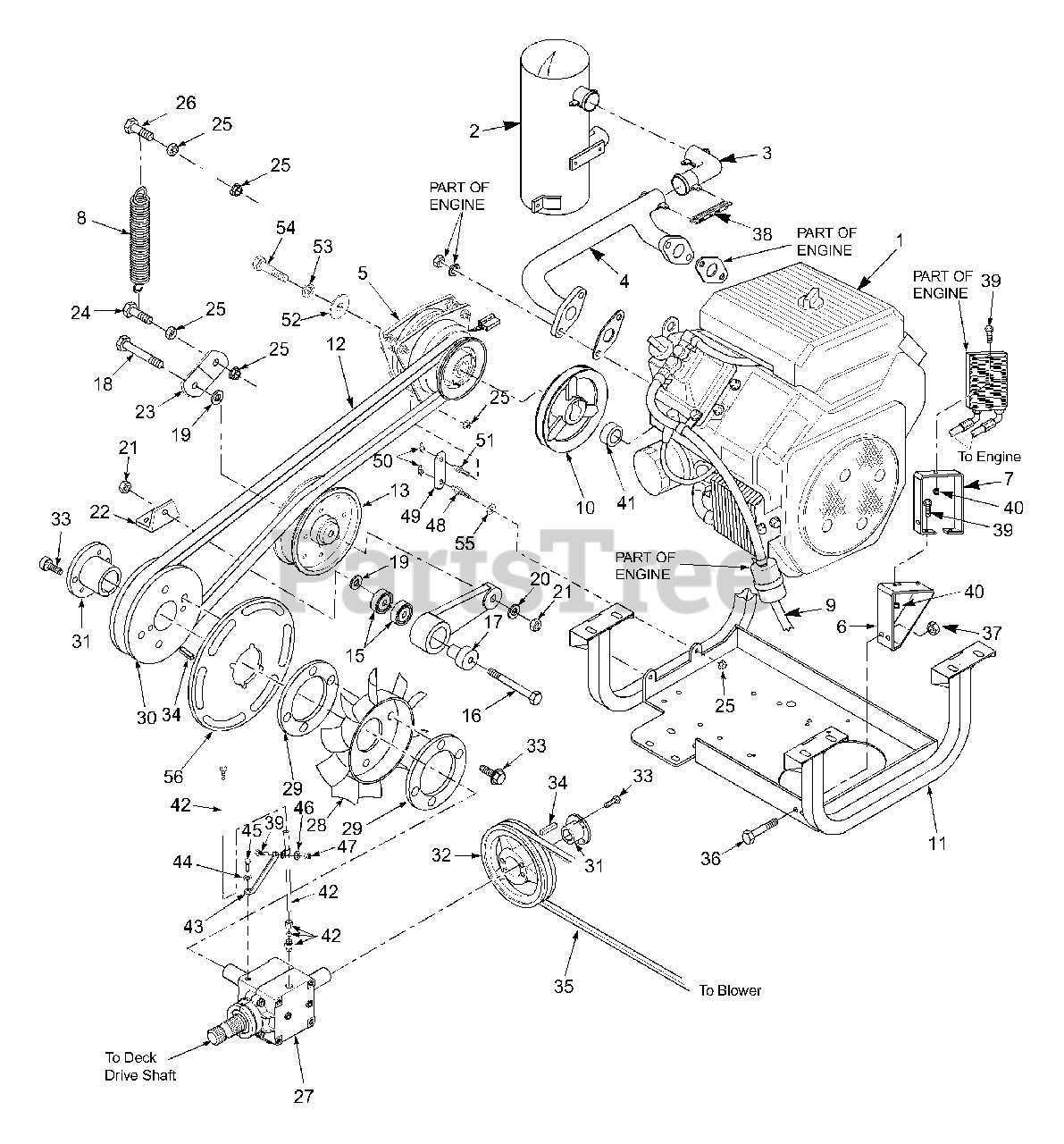

Engine And Attaching Parts Parts Diagram

  • Title

1

Scag 481967

Engine, 25 HP Kohler

Note: (Spec. No. PS-68650)

$

$

Currently unavailable

2

Scag 481946

Muffler

$351.99

$

Usually ships in 2-12 days

0

3

Scag 482081

Pipe, Exhaust

$

$

Not available

4

Scag 481947

Manifold, Exhaust

$269.99

$

Usually ships in 2-12 days

0

5

Scag 482203

Clutch, PTO
(Superseded to 483260)

$1260.99

$

Usually ships in 2-12 days

0

6

Scag 423005

Bracket, Oil Cooler

$29.99

$

Usually ships in 2-12 days

0

7

Scag 423006

Guard, OIl Cooler

$

$

Currently unavailable

8

Scag 481994

Spring, Gearbox Idler
(Superseded to 482717)

$48.99

$

In Stock, only 1 left!

0

9

Scag 48058

Hose, Fuel 1/4" ID (order by the inch)
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

10

Scag 481788

Pulley, 5.45" OD - 1.125 Bore
(Superseded to 482791)

$111.99

$

Usually ships in 2-12 days

0

11

Scag 451288

Weldment, Engine Deck

$

$

Not available

12

Scag 481976

Belt, Gearbox Drive

$109.99

$

Usually ships in 2-12 days

0

13

Scag 48269

Pulley, Idler 5.00" OD
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

?14

Scag 481756

Arm, Idler
(Superseded to 461091)

$111.99

$

Usually ships in 2-12 days

0

15

Scag 48224

Bearing, Idler Arm

$13.99

$

In Stock, Qty 20+

0

16

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2.5"

$0.99

$

In Stock, Qty 10

0

17

Scag 43503

Pivot, Idler

$27.99

$

In Stock, Qty 5

0

18

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2.75"

$1.49

$

In Stock, Qty 11

0

19

Scag 04043-04

Flatwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

20

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

21

Scag 04021-09

Nut, Elastic Stop 3/8"

$0.99

$

In Stock, Qty 20+

0

22

Scag 423014

Bracket, Mounting

$44.99

$

Usually ships in 2-12 days

0

23

Scag 423013

Bracket, Spring Mounting

$22.99

$

Usually ships in 2-12 days

0

24

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1.5" Grade 8

$0.99

$

In Stock, Qty 20+

0

25

Scag 04019-04

Nut, Serrated Flange 3/8"

$0.99

$

In Stock, Qty 20+

0

26

Scag 04001-135

Bolt, Hex Head 3/8-16 x 1.75" Grade 8

$0.99

$

In Stock, Qty 10

0

27

Scag 482066

Gearbox, T-Drive
(Superseded to 482500)

$1216.99

$

Usually ships in 2-12 days

0

28

Scag 482133

Fan, Cooling

$34.99

$

Usually ships in 2-12 days

0

29

Scag 423115

Spacer, Fan

$8.99

$

In Stock, only 2 left!

0

30

Scag 482067

Pulley, 4.95" OD

$157.99

$

Usually ships in 2-12 days

0

31

Scag 48141

Hub, Tapered 1" Bore

$30.99

$

In Stock, Qty 6

0

32

Scag 481435

Pulley, 5.35" OD
(Superseded to 482647)

$37.99

$

In Stock, only 1 left!

0

33

Scag 04001-14

Capscrew, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 10

0

34

Scag 04063-01

Key, 1/4 x 1/4 x 1.25"

$1.49

$

In Stock, only 3 left!

0

35

Scag 481977

Belt, Blower

$33.99

$

In Stock, only 1 left!

0

36

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1.5"

$0.99

$

In Stock, Qty 17

0

37

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

38

Scag 482329

Spring, Exhaust

$8.99

$

Usually ships in 2-12 days

0

39

Scag 04001-01

Bolt, Hex Head 1/4-20 x .75"

$0.99

$

In Stock, Qty 19

0

40

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

41

Scag 43570

Spacer, Crankshaft

$13.99

$

Usually ships in 2-12 days

0

42

Scag 482223

Dipstick Assembly

$57.99

$

Usually ships in 2-12 days

0

43

Scag 423236

Bracket, Dipstick Tube

$86.99

$

Usually ships in 2-12 days

0

44

Scag 04030-03

Lock Washer, 5/16"

$0.99

$

In Stock, Qty 20+

0

45

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

46

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, Qty 7

0

47

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

48

Scag 43507

Stud, Anti-Rotation

$33.99

$

In Stock, only 2 left!

0

49

Scag 423230

Link, Anti-Rotation

$31.99

$

Usually ships in 2-12 days

0

50

Scag 04069-01

Pin, Rue Cotter 3/8 Dia.

$1.49

$

In Stock, Qty 10

0

51

Scag 43531

Stud, Anti-Rotation

$16.99

$

In Stock, only 1 left!

0

52

Scag 04041-28

Washer, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 10

0

53

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 14

0

54

Scag 04001-93

Bolt, Hex Head 7/16-20 x 3"

$1.49

$

In Stock, only 3 left!

0

55

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

56

Scag 423078

Disk, Fan Support

$60.99

$

In Stock, only 1 left!

0
