SCR48-25CH - Scag Cougar 48" Zero-Turn Mower, 25hp Kohler (SN: 5590001 - 5599999) Fuel And Hydraulic Components Parts Diagram

Cougar 48" Zero-Turn Mower, 25hp Kohler

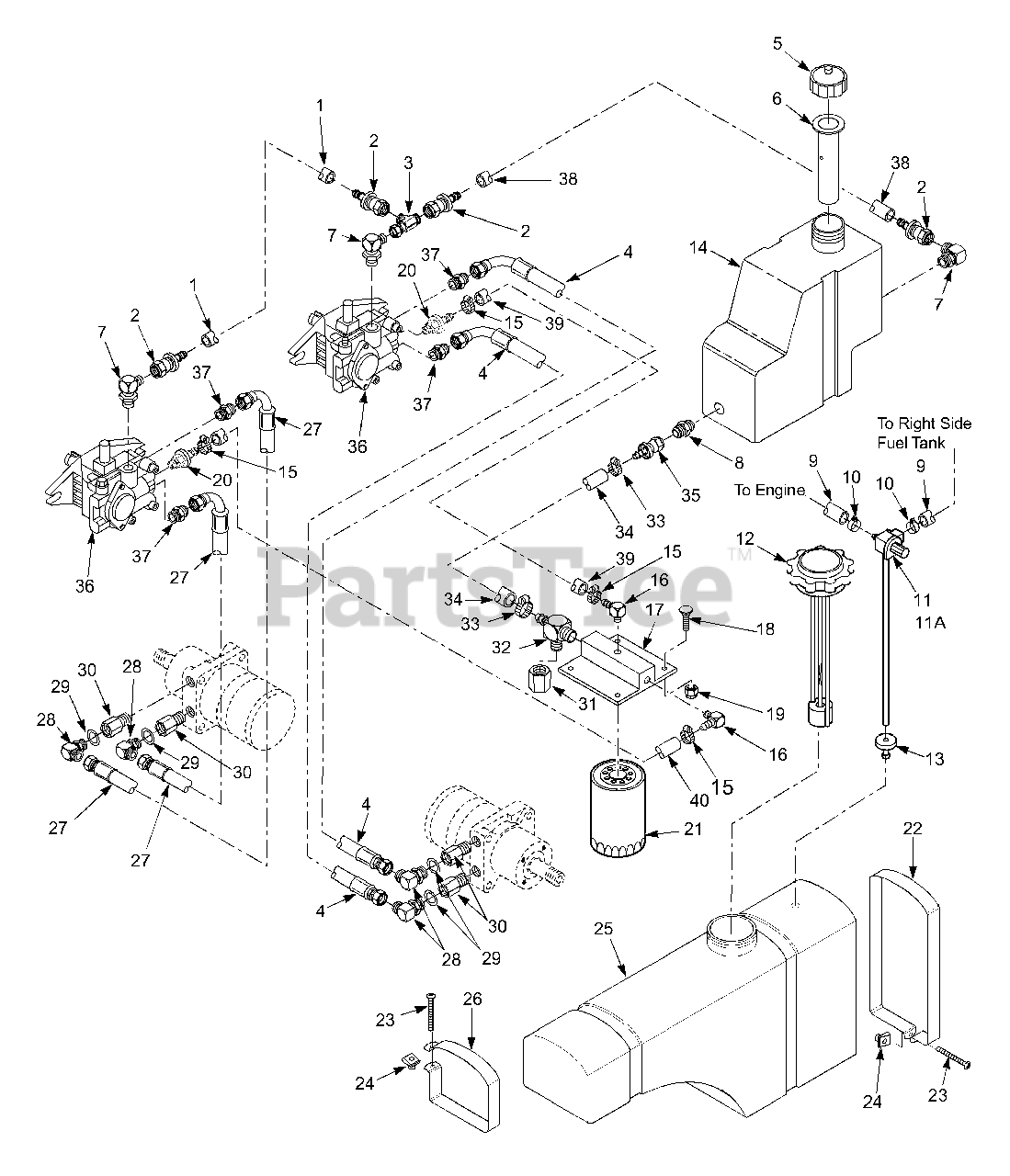

Fuel And Hydraulic Components Parts Diagram

  • Title

1

Scag 48811

Hose, 3/8 Pushlock 20" Long (order by the inch)

$0.99

$

In Stock, Qty 20+

0

2

Scag 48353-06

Coupling, 3/8 Hose x 9/16-18 Thread

$10.99

$

In Stock, only 2 left!

0

3

Scag 481384-02

Tee, Swivel 9/16-18 JIC

$25.99

$

Usually ships in 2-12 days

0

4

Scag 481960

Hose Assembly, LH

$120.99

$

Usually ships in 2-12 days

0

5

Scag 481164

Cap, Hydraulic Tank

$18.99

$

In Stock, only 4 left!

0

6

Scag 481507

Insert, Filler Neck

$13.99

$

In Stock, only 1 left!

0

7

Scag 48350-09

Elbow, 90 Degree 3/8 x 3/8

$25.99

$

Usually ships in 2-12 days

0

8

Scag 48572-04

Tube, Union 1/2 x 1/2

$8.49

$

In Stock, only 2 left!

0

9

Scag 48058

Fuel Hose 1/4" ID
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

10

Scag 48059-01

Clamp, Fuel Hose 1/4" Hose ID

$0.99

$

In Stock, Qty 20+

0

11

Scag 481989

Valve, Fuel Shutoff (LH Tank)

$118.99

$

Usually ships in 2-12 days

0

11A

Scag 482055

Tube, Fuel Standoff (RH Tank)

$14.99

$

Usually ships in 2-12 days

0

12

Scag 481958

Cap, Fuel Tank w/gauge
(Superseded to 483789)

$75.99

$

In Stock, only 4 left!

0

13

Scag 48309

Bushing, Tank
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

14

Scag 461229

Hydraulic Tank

$207.99

$

Usually ships in 2-12 days

0

15

Scag 48136-07

Clamp

$

$

Not available

16

Scag 481301-03

Elbow, 1/4 NTP x 3/8 Hose Barb

$10.99

$

In Stock, only 2 left!

0

17

Scag 48471-02

Filter Head

$108.99

$

Usually ships in 2-12 days

0

18

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

19

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

20

Scag 481467-01

Connector, 7/16 O-Ring x Hose Barb

$31.99

$

Usually ships in 2-12 days

0

21

Scag 48758

Filter, Hydraulic

$27.99

$

Usually ships in 2-12 days

0

22

Scag 422939

Strap, Fuel Tank Rear

$40.99

$

In Stock, only 1 left!

0

23

Scag 04010-10

Screw, 1/4-20 x 2"

$0.99

$

In Stock, Qty 12

0

24

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 19

0

25

Scag 481957

Fuel Tank

$204.99

$

Usually ships in 2-12 days

0

26

Scag 422940

Strap, Fuel Tank Front

$12.99

$

Usually ships in 2-12 days

0

27

Scag 481961

Hose Assembly, RH

$85.99

$

Usually ships in 2-12 days

0

28

Scag 48350-02

Elbow, 90 Degree 1/2 x 1/2

$26.99

$

In Stock, only 1 left!

0

29

Scag 48603-02

O-Ring

$3.49

$

In Stock, Qty 5

0

30

Scag 48938-02

O-Ring Bushing, 5/8 Tube

$15.99

$

Usually ships in 2-12 days

0

31

Scag 48571-02

Cap, 3/4-16 JIC

$5.99

$

Usually ships in 2-12 days

0

32

Scag 481981

Fitting, Tee Special

$52.99

$

Usually ships in 2-12 days

0

33

Scag 48136-05

Clamp

$3.99

$

In Stock, only 2 left!

0

34

Scag 481562

Hose, Return Line

$30.99

$

Usually ships in 2-12 days

0

35

Scag 48353-01

Coupling, 1/2 Hose x 3/4-16 Thread

$18.99

$

Usually ships in 2-12 days

0

36

Scag 48551

Pump, BDP 10L

$1217.99

$

Usually ships in 2-12 days

0

37

Scag 48572-04

Tube, Union 1/2 x 1/2

$8.49

$

In Stock, only 2 left!

0

38

Scag 48811

Hose, 3/8 Pushlock 5" Long (order by the inch)

$0.99

$

In Stock, Qty 20+

0

39

Scag 48811

Hose, 3/8 Pushlock 36" Long (order by the inch)

$0.99

$

In Stock, Qty 20+

0

40

Scag 48811

Hose, 3/8 Pushlock 30" Long (order by the inch)

$0.99

$

In Stock, Qty 20+

0
