SCR48-25CH - Scag Cougar 48" Zero-Turn Mower, 25hp Kohler (SN: 5590001 - 5599999) Sheet Metal Parts Diagram

Cougar 48" Zero-Turn Mower, 25hp Kohler

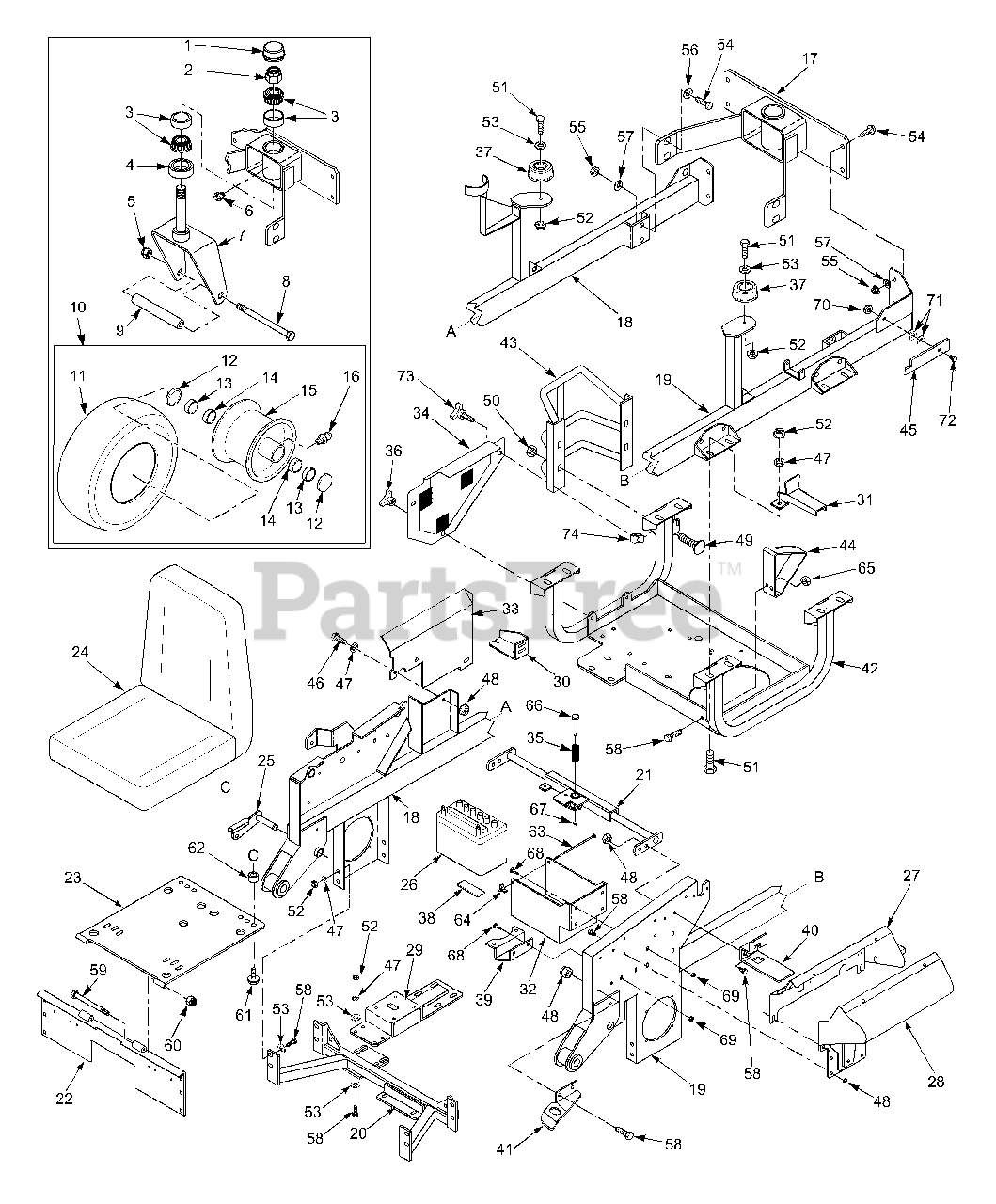

Sheet Metal Parts Diagram

  • Title

1

Scag 481559

Cap, Grease

$6.99

$

In Stock, Qty 20+

0

2

Scag 04021-20

Nut, Elastic Jam 1.0-14

$4.99

$

In Stock, Qty 20+

0

3

Scag 481657

Bearing, 1.0 Diameter
(Superseded to 48668)

$24.99

$

In Stock, Qty 20+

0

4

Scag 481025

Seal, 2.00 OD x 1.625 ID

$4.99

$

In Stock, Qty 20+

0

5

Scag 04021-13

Nut, Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 11

0

6

Scag 482028-01

Plug, 1/4-28

$6.49

$

Usually ships in 2-12 days

0

7

Scag 451187

Yoke, Wheel

$446.99

$

Usually ships in 2-12 days

0

8

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9.5"

$15.99

$

In Stock, Qty 20+

0

9

Scag 43021

Spacer

$50.99

$

Usually ships in 2-12 days

0

10

Scag 482043

Wheel Assy, 16 x 6.5-8

Note: (Inc. # 11 thru # 16)

$331.99

$

Usually ships in 2-12 days

0

11

Scag 482192

Tire, 16 x 6.5-8

$151.99

$

Usually ships in 2-12 days

0

12

Scag 481897

Seal, Wheel Bearing

$9.49

$

In Stock, only 3 left!

0

13

Scag 481896

Cone, Bearing

$22.99

$

In Stock, only 3 left!

0

14

Scag 481897

Cup, Bearing

$9.49

$

In Stock, only 3 left!

0

15

Scag 482193

Rim Assy,
(Superseded to 481894)

Note: (Includes Item # 12, 13, 14, & 16)

$312.99

$

In Stock, only 1 left!

0

16

Scag 48114-06

Fitting, Grease

$3.99

$

Usually ships in 2-12 days

0

17

Scag 451186

Weldment, Rear Caster Support

$499.99

$

Usually ships in 2-12 days

0

18

Scag 451172

Weldment, Main Frame RH

$

$

Currently unavailable

19

Scag 451171

Weldment, Main Frame LH

$

$

Currently unavailable

20

Scag 451173

Weldment, Axle Support

$

$

Not available

21

Scag 451174

Weldment, Seat Support

$

$

Currently unavailable

22

Scag 451177

Plate, Front Crossmember

$

$

Not available

23

Scag 451178

Weldment, Seat Plate

$

$

Not available

24

Scag 482220

Seat Assy.

$486.99

$

Usually ships in 2-12 days

0

25

Scag 451179

Weldment, Deck Stop

$

$

Not available

26

Scag 48015

Battery

$

$

Not available

27

Scag 423012

Cover, Instrument Panel
(Superseded to 461327)

$

$

Not available

28

Scag 422855

Rear, Instrument Panel
(Superseded to 461327)

$

$

Not available

29

Scag 451188

Weldment, Gearbox Support
(Superseded to 451415)

$231.99

$

Usually ships in 2-12 days

0

30

Scag 422976

Plate, Gearbox Upper

$108.99

$

Usually ships in 2-12 days

0

31

Scag 422859

Mount, Fuel Tank Rear

$

$

Not available

32

Scag 422936

Box, Battery

$

$

Not available

33

Scag 423031

Heatshield

$

$

Not available

34

Scag 423233

Cover, PTO Clutch

$57.99

$

Usually ships in 2-12 days

0

35

Scag 481389

Spring, Seat

$3.99

$

Usually ships in 2-12 days

0

36

Scag 481625-01

Knob with Stud

$2.99

$

In Stock, Qty 20+

0

37

Scag 482074

Pad, Rubber Hopper Rest

$19.99

$

Usually ships in 2-12 days

0

38

Scag 48657

Pad, Rubber

$5.99

$

Usually ships in 2-12 days

0

39

Scag 422935

Bracket, Hydraulic Filter Mounting

$79.99

$

Usually ships in 2-12 days

0

40

Scag 422858

Bracket, Fuel Tank Front

$

$

Not available

41

Scag 422934

Catch, Cutter Deck

$152.99

$

Usually ships in 2-12 days

0

42

Scag 451288

Weldment, Engine Deck

$

$

Not available

43

Scag 451256

Weldment, Muffler Guard

$

$

Not available

44

Scag 423005

Bracket, Oil Cooler

$29.99

$

Usually ships in 2-12 days

0

45

Scag 422988

Rod, Hopper Prop

$

$

Not available

46

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

47

Scag 04030-04

Lockwasher 3/8"

$0.99

$

In Stock, Qty 20+

0

48

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

49

Scag 04003-33

Bolt, Carriage 7/16-14 x 1"

$2.49

$

Usually ships in 2-12 days

0

50

Scag 04019-05

Nut, Serrated Flange 7/16-14

$0.99

$

In Stock, Qty 12

0

51

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1.5"

$0.99

$

In Stock, Qty 17

0

52

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

53

Scag 04041-07

Flatwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

54

Scag 04001-07

Bolt, Hex Head 1/2-13 x 1.5"

$0.99

$

In Stock, Qty 9

0

55

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

56

Scag 04040-07

Flatwasher 1/2"

$0.99

$

In Stock, Qty 13

0

57

Scag 04030-06

Lockwasher 1/2"

$0.99

$

In Stock, only 2 left!

0

58

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1.25"

$0.99

$

In Stock, Qty 15

0

59

Scag 04001-63

Bolt, Hex Head 5/16-18 x 3.5"

$1.49

$

In Stock, only 1 left!

0

60

Scag 04021-10

Nut, Elastic Stop 5/16"

$0.99

$

In Stock, Qty 20+

0

61

Scag 04017-16

Bolt, Capscrew 5/16-18 x .75"

$0.99

$

In Stock, Qty 10

0

62

Scag 43512

Spacer

$4.49

$

Usually ships in 2-12 days

0

63

Scag 04003-01

Bolt, Carriage 1/4-20 x 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 11

0

64

Scag 04029-01

Wing Nut, 1/4-20 x .75"

$2.49

$

In Stock, only 2 left!

0

65

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

66

Scag 43462

Pin

$28.99

$

In Stock, only 1 left!

0

67

Scag 04060-01

Roll Pin, Spring 5/32 x .75"

$0.99

$

In Stock, only 1 left!

0

68

Scag 04003-12

Bolt, Carriage 5/16-18 x .75"

$0.99

$

In Stock, Qty 15

0

69

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 16

0

70

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

71

Scag 04032-01

Washer

$0.99

$

In Stock, only 3 left!

0

72

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 16

0

73

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

74

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0
