SCZ48V-25CV - Scag Cheetah 48" Zero-Turn Mower, 25hp Kohler (SN: H6800001 - H6899999) SCZ Brake Components Parts Diagram

Cheetah 48" Zero-Turn Mower, 25hp Kohler

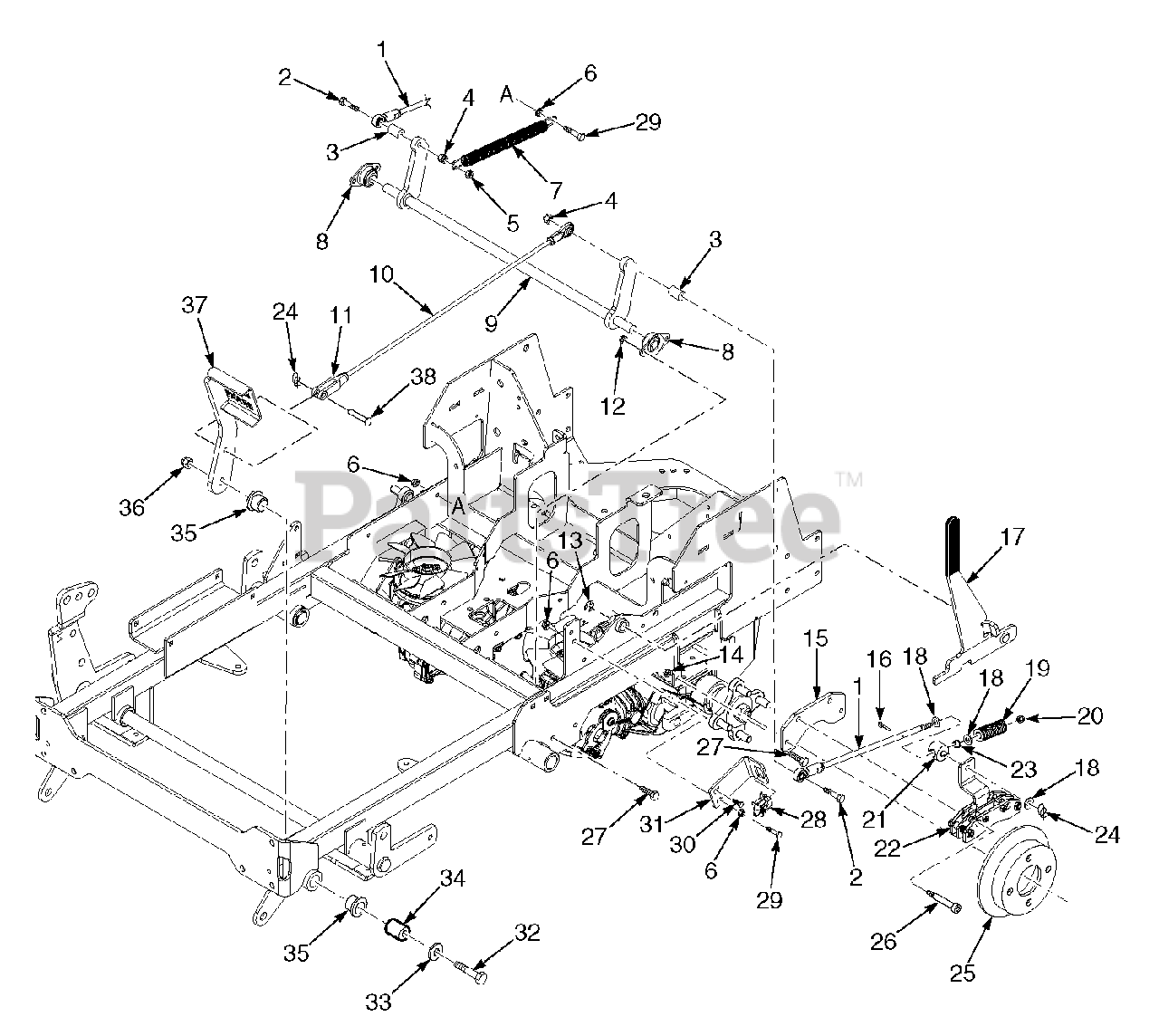

SCZ Brake Components Parts Diagram

  • Title

1

Scag 462465

Brake Link Assembly

Note: (incl. #16, 18, 19, 20, 21)

$70.99

$

Usually ships in 2-12 days

0

2

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 20+

0

3

Scag 43572

Spacer

$1.99

$

In Stock, only 3 left!

0

4

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

7

Scag 484575

Spring, Brake Return

$12.99

$

Usually ships in 2-12 days

0

8

Scag 48796

Bearing, Self Align - 5/8" I.D.

$12.99

$

Usually ships in 2-12 days

0

9

Scag 452342

Brake Bellcrank Weldment

$78.99

$

Usually ships in 2-12 days

0

10

Scag 492001

Brake Rod Assembly
(Superseded to 485740)

$28.99

$

Usually ships in 2-12 days

0

10

Scag 483340

Rod End, 3/8-24 LH

$20.99

$

Usually ships in 2-12 days

0

10

Scag 04020-26

Nut, 3/8-24 UNF LH Jam

$1.99

$

In Stock, Qty 7

0

11

Scag 48343-04

Clevis

$17.99

$

In Stock, only 2 left!

0

11

Scag 04020-25

Nut, 3/8-24 UNF Jam

$0.99

$

In Stock, Qty 5

0

12

Scag 04021-10

Nut, Elasticc Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 04050-01

Retaining Ring, .625 Ext "E"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 425706

Mounting Bracket, Brake

$15.99

$

Usually ships in 2-12 days

0

16

Scag 04061-02

Cotter Pin, 3/32 x 3/4"

$0.99

$

In Stock, Qty 6

0

17

Scag 462466

Lever w/Grip, Parking Brake

$77.99

$

Usually ships in 2-12 days

0

17

Scag 482102

Grip, Brake Lever

$3.99

$

In Stock, only 2 left!

0

18

Scag 04040-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, Qty 15

0

19

Scag 484535

Spring, Brake

$10.99

$

In Stock, only 1 left!

0

20

Scag 04021-18

Nut, Elastic Stop 3/8-24

$1.99

$

In Stock, Qty 11

0

21

Scag 462452

Swivel Assembly, Brake

$21.99

$

In Stock, only 1 left!

0

22

Scag 483701

Brake Caliper

$114.99

$

In Stock, only 2 left!

0

23

Scag 483453-23

Bearing

$5.49

$

In Stock, only 1 left!

0

24

Scag 04069-01

Pin, Rue Cotter - 3/8" Dia.

$1.49

$

In Stock, Qty 10

0

25

Scag 43853

Brake Hub

$128.99

$

Usually ships in 2-12 days

0

26

Scag 04009-10

Bolt, 1/2 x 2-3/4" Shoulder

$6.49

$

In Stock, Qty 17

0

27

Scag 04001-59

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 17

0

28

Scag 481638

Switch

$15.99

$

In Stock, Qty 20+

0

29

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 17

0

30

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 10

0

31

Scag 425858

Switch Mounting Bracket, Brake
(Superseded to 426064)

$13.99

$

Usually ships in 2-12 days

0

32

Scag 04001-194

Bolt, Hex Head 1/2-13 x 4-1/4"

$5.49

$

In Stock, Qty 8

0

33

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 6

0

34

Scag 43872

Sleeve, Brake Pivot

$22.99

$

Usually ships in 2-12 days

0

35

Scag 483453-03

Bearing

$7.99

$

In Stock, only 4 left!

0

36

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

37

Scag 452327

Brake Pedal Weldment

$69.99

$

Usually ships in 2-12 days

0

38

Scag 04064-02

Clevis Pin, 3/8 x 1.06"

$1.49

$

In Stock, only 4 left!

0
