SCZ61V-31CV-EFI - Scag Cheetah 61" Zero-Turn Mower, 31hp Kohler (SN: N2600001 - N2699999) SCZ Hydraulic System Parts Diagram

Cheetah 61" Zero-Turn Mower, 31hp Kohler

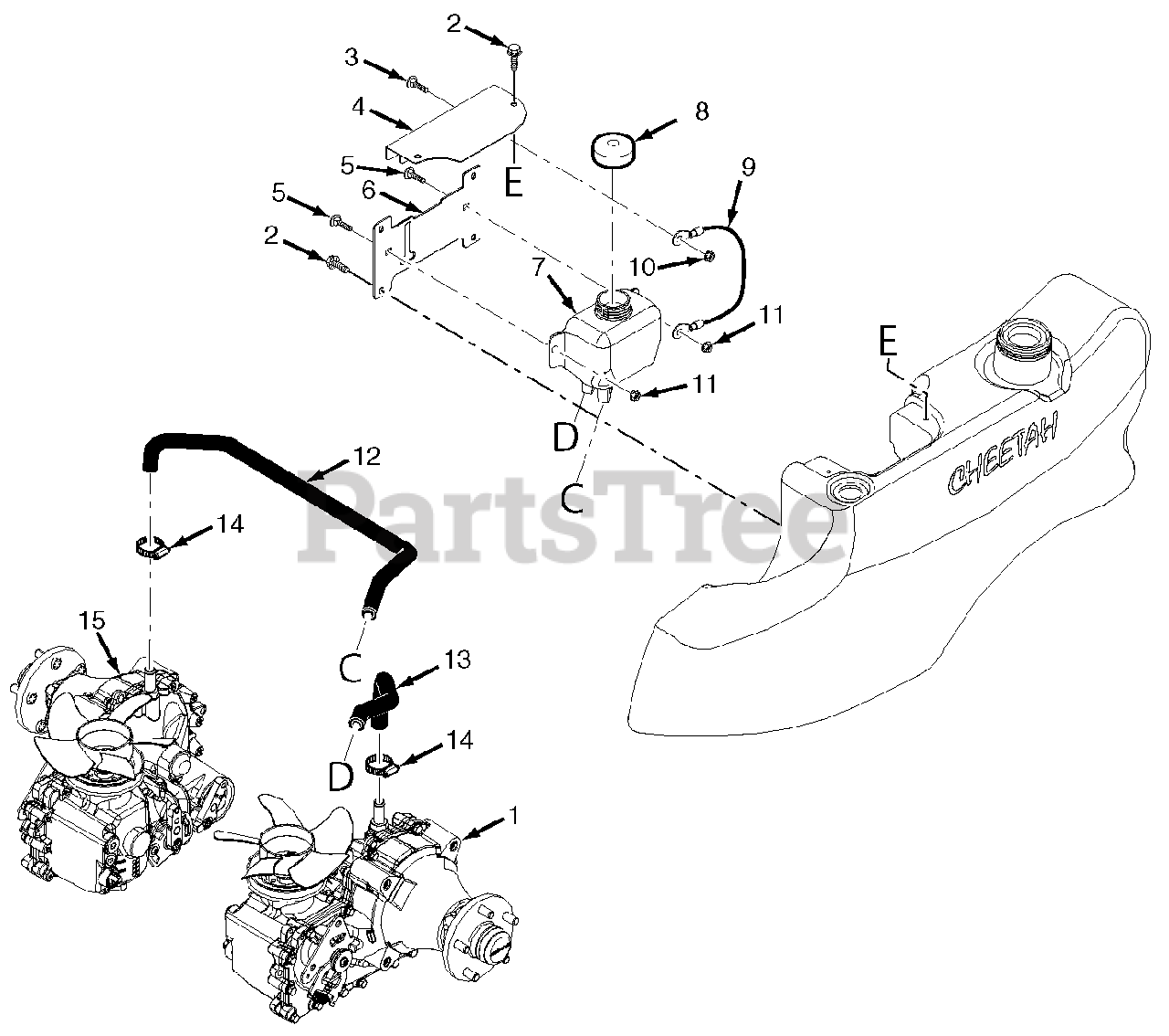

SCZ Hydraulic System Parts Diagram

  • Title

1

Scag 483797

Transaxle, LH

$2364.99

$

Usually ships in 2-12 days

0

2

Scag 04017-04

Bolt, Hex Head 1/4-20 X 1/2" Serrated Flange

$0.99

$

In Stock, Qty 20+

0

3

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

4

Scag 425390

Cover, Oil Reservoir

$19.99

$

Usually ships in 2-12 days

0

5

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

6

Scag 425421

Plate, Hydro Tank Mount

$21.99

$

Usually ships in 2-12 days

0

7

Scag 462907

Hydraulic Tank Assembly

Note: (incl. # 8)

$53.99

$

Usually ships in 2-12 days

0

8

Scag 483514

Cap, Hydraulic Tank

$23.99

$

Usually ships in 2-12 days

0

9

Scag 484196

Lanyard, Hydraulic Tank

$15.99

$

Usually ships in 2-12 days

0

10

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

11

Scag 04117-01

Nut, FLG HH Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

12

Scag 484161

Hose, RH Transaxle

$96.99

$

Usually ships in 2-12 days

0

13

Scag 484160

Hose, LH Transaxle

$38.99

$

Usually ships in 2-12 days

0

14

Scag 48136-16

Clamp, 1" Max Dia.

$1.99

$

Usually ships in 2-12 days

0

15

Scag 483798

Transaxle, RH

$2364.99

$

Usually ships in 2-12 days

0
