SCZII72V-37BV-EFI - Scag Cheetah II 72" Zero-Turn Mower, 37hp Vanguard (SN: S8400000 - S8499999) SCZII EFI ELECTRICAL SYSTEM Parts Diagram

Cheetah II 72" Zero-Turn Mower, 37hp Vanguard

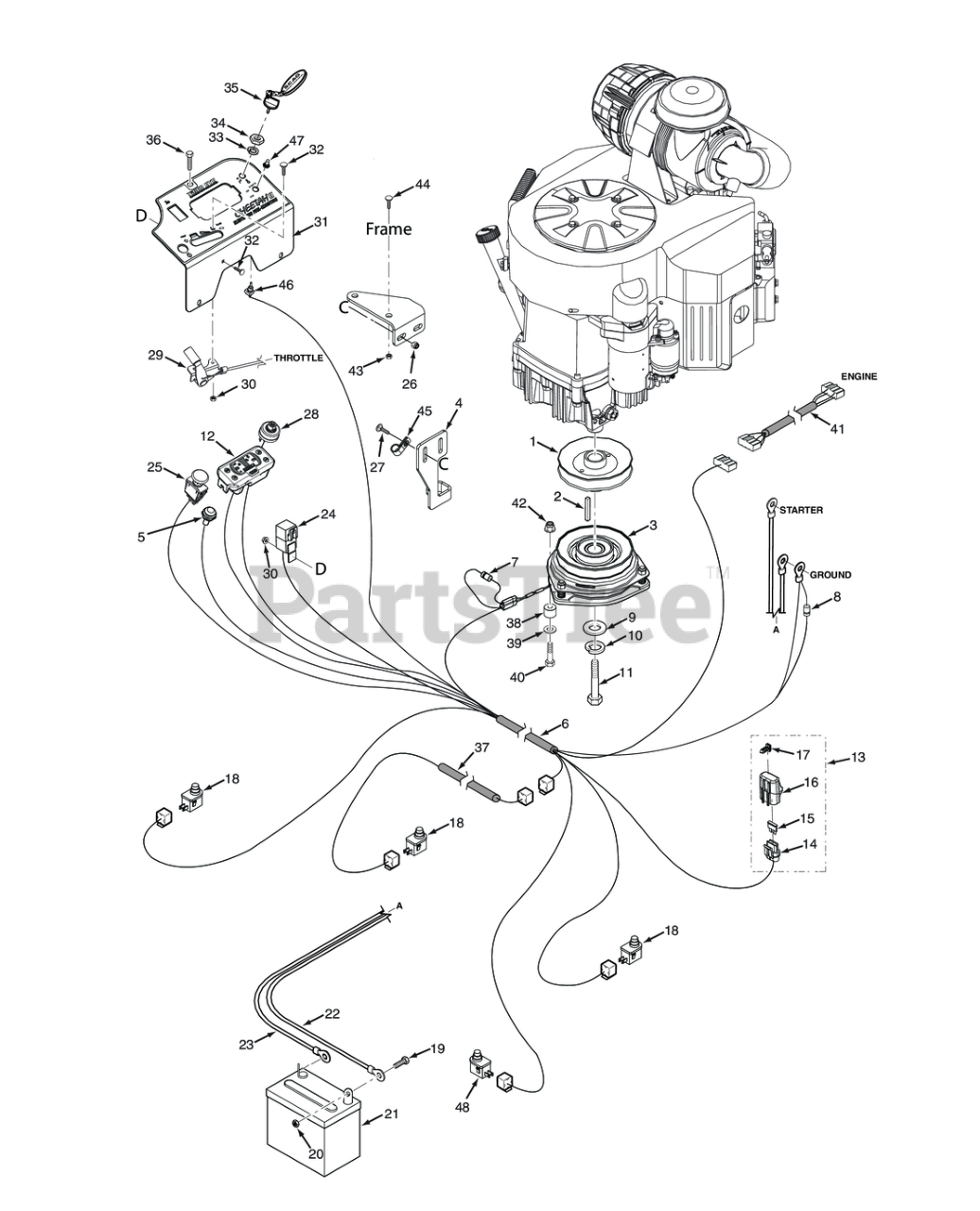

SCZII EFI ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 484098

Pulley, 5.80" Dia. - 1.125 Bore

$89.99

$

In Stock, only 1 left!

0

2

Scag 04063-23

Key, 1/4 x 1/4 x 3-1/4�

$2.49

$

In Stock, only 4 left!

0

3

Scag 461826

Electric Clutch w/Tag - GT-5 (ECV860, ECV940)

$789.99

$

In Stock, only 2 left!

0

4

Scag 426950

Bracket, Anti-Rotation

$16.99

$

Usually ships in 2-12 days

0

5

Scag 481182

Indicator Light, Glow Plugs (Includes Mounting Hardware)

$48.99

$

In Stock, only 1 left!

0

6

Scag 486508

Wire Harness, SCZII-EFI

$521.99

$

Usually ships in 2-12 days

0

6

Scag 486753

Wire Harness, SCZII-FX-EFI

$

$

Currently unavailable

7

Scag 483958

Diode, 600V 6 Amp

$2.49

$

In Stock, only 1 left!

0

8

Scag 482253

Decal, Forward Speed Selector

$8.49

$

Usually ships in 2-12 days

0

9

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 10

0

10

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 14

0

11

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch (Kawasaki)

$2.49

$

In Stock, Qty 10

0

12

Scag 484721

Tiger Eye, Cluster Gauge

$383.99

$

In Stock, only 4 left!

0

13

Scag 485739

Single Fuse Assy., Excluding Fuse

$34.99

$

Usually ships in 2-12 days

0

14

Scag 483629

Fuse Holder Assembly

$7.49

$

In Stock, Qty 10

0

15

Scag 48298

FUSE, 20 AMP BLADE TYPE AUTOMOTIVE

$

$

Not available

16

Scag 483643

Cover, Sealed Single

$4.99

$

In Stock, only 2 left!

0

17

Scag 482588

Clip, Fuse Holder

$1.99

$

Usually ships in 2-12 days

0

18

Scag 481638

Switch, Interlock, Normally Open

$15.99

$

In Stock, Qty 18

0

19

Scag 04001-44

Bolt, Hex Head 1/4-20 x .5" Battery, (Not Available Through Scag)

$0.99

$

In Stock, Qty 10

0

20

Scag 04020-02

Nut, 1/4 - 20 Hex

$0.99

$

In Stock, Qty 9

0

21

Battery

Note: Not available through Scag

$

$

Not available

22

Scag 48029-07

Battery Cable, 18" Black (Kohler)

$12.99

$

Usually ships in 2-12 days

0

23

Scag 48029-28

Battery Cable, 25" Red

$23.99

$

Usually ships in 2-12 days

0

Scag 48126

RUBBER BOOT

Note: Not Shown

$8.99

$

Usually ships in 2-12 days

0

24

Scag 483013

Relay, 12V 40 AMP Standard

$21.99

$

In Stock, Qty 17

0

25

Scag 485833

Switch, PTO - 10 Amp

$48.99

$

In Stock, only 1 left!

0

26

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

27

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, only 2 left!

0

28

Scag 48798

KEY SWITCH(INCLUDES MOUNTING HARDWARE)

$27.99

$

In Stock, Qty 20+

0

29

Scag 481544

Control Cable (Kawasaki FX921 Throttle & Choke Cable)

$28.99

$

In Stock, Qty 20+

0

30

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 9

0

31

Scag 463240

Instrument Panel w/Decal

$76.99

$

Usually ships in 2-12 days

0

32

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 8

0

33

Scag 48017-03

LOCK WASHER, 5/8" INTERNAL TOOTH

$0.99

$

In Stock, Qty 7

0

34

Scag 48017-04

Nut, 5/8-32 Special

$1.99

$

In Stock, Qty 5

0

35

Scag 462069

Key, Assembly w/Fob

$9.99

$

In Stock, Qty 9

0

36

Scag 04017-04

CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 20+

0

37

Scag 484722

Wire Harness, Operator Platform -SCZ

$61.99

$

Usually ships in 2-12 days

0

38

Scag 431009

Bushing, UHMW

$6.49

$

In Stock, only 1 left!

0

39

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 9

0

40

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 14

0

41

Scag 486139

Wire Harness Adapter, Briggs & Stratton 37 BV-EFI

$25.99

$

In Stock, only 1 left!

0

42

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

43

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

44

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

45

Scag 48030-09

Clamp, Cable 1/2" I.D.

$1.49

$

In Stock, only 4 left!

0

46

Scag 483120

SWITCH, ON / OFF

$25.99

$

Usually ships in 2-12 days

0

47

Scag 483121

BOOT, SWITCH

$16.99

$

Usually ships in 2-12 days

0

48

Scag 486616

Switch, N/C

$5.99

$

Usually ships in 2-12 days

0
