SD 18 (968981010) - Husqvarna Dethatcher (2000-12) Seeder Parts Diagram

Dethatcher

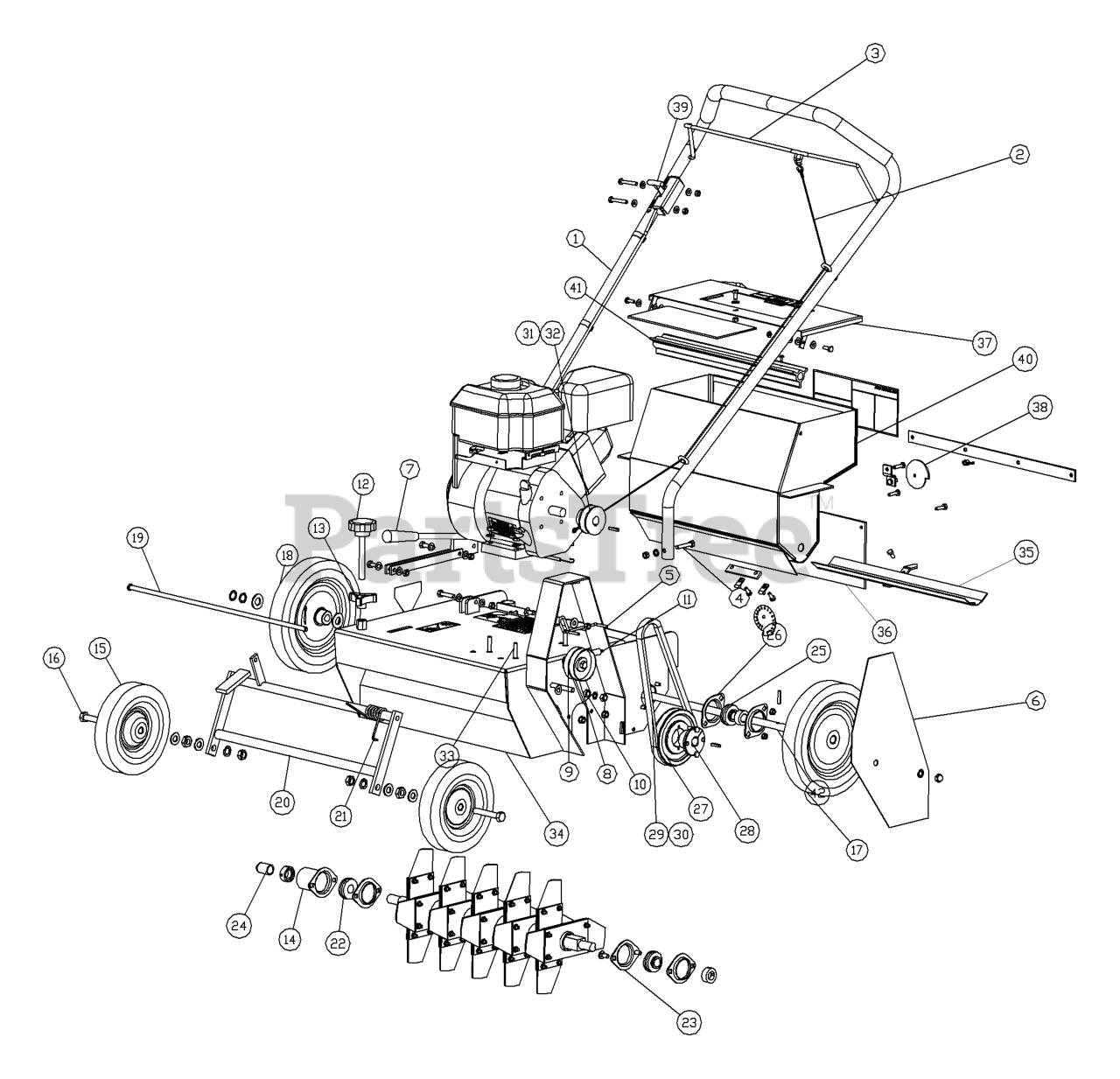

Seeder Parts Diagram

  • Title

1

Husqvarna 540054023

KIT, HANDLE ASSY

Note: Includes handle, bail, clutch cable, S-hook and handle grip

$

$

Not available

2

Husqvarna 540054024

CLUTCH CABLE
(Superseded to 540200578)

Note: Includes clutch cable and clip

$

$

Not available

3

Husqvarna 540054003

BAIL

$

$

Not available

4

Husqvarna 540005167

BOLT KIT
(Superseded to 539005167)

Note: Includes 5/6-18 x 1 3/4 hex cap screw (2 ea.), 5/16-18 hex nut (2 ea.)

$

$

Not available

5

Husqvarna 540005140

BELT KEEPER KIT
(Superseded to 539005140)

Note: Includes belt keeper, 5/16 washer, 5/16-18 hex lock nut, 5/16-18 x 3/4 carriage bolt

$45.99

$

Usually ships in 3-10 days

0

6

Husqvarna 540054025

BELT GUARD KIT ORN

Note: Includes shield, 3/8 internal lock washer and 3/8-16 acorn nut

$

$

Not available

7

Husqvarna 540054007

DEPTH LEVER ASSY
(Superseded to 539054007)

Note: Includes height adjustment link (2 ea.), adjustment lever, 5/16-18 x 1 1/4 hex head bolt (2 ea.), 5/16-18 x 1 1/2 hex head bolt, 5/16 flat washer (6 ea.), 5/16-18 hex lock nut (3 ea.)

$

$

Not available

8

Husqvarna 540005027

IDLER ASSY KIT
(Superseded to 539005027)

Note: Includes 2 3/4 idler pulley, clutch spring, idler arm, idler tab, 3/8 washer, 3/8-16 hex jam nut, 3/8-16 hex lock nut, 3/8-16 x 4 hex screw

$

$

Not available

9

Husqvarna 540000343

PULLEY
(Superseded to 539000343)

$28.99

$

Usually ships in 3-10 days

0

10

Husqvarna 540005121

MTG ARM, IDLER PULLEY
(Superseded to 539005121)

$

$

Not available

11

Husqvarna 540005129

SPRING
(Superseded to 539005129)

$6.99

$

In Stock, only 2 left!

0

12

Husqvarna 540054008

DEPTH ADJUSTMENT KNOB
(Superseded to 539054008)

$125.99

$

Usually ships in 3-10 days

0

13

Husqvarna 540054009

3-PRONGED LOCK DEPTH
(Superseded to 539030485)

$7.99

$

In Stock, only 4 left!

0

14

Husqvarna 540054010

ROTOR GUARD
(Superseded to 539054010)

$

$

Not available

15

Husqvarna 540005051

WHEEL
(Superseded to 540075051)

$37.99

$

In Stock, only 1 left!

0

16

Husqvarna 540054011

BOLT KIT
(Superseded to 539054011)

Note: Includes 1/2-13 x 3 1/4 hex bolt, 1/2 washer (2 ea.), 1/2-13 hex jam nut (2 ea.), 1/2 lock washer (1 ea.)

$

$

Not available

17

Husqvarna 540054041

KIT, WHEEL

Note: Includes 10 x 1.75 wheel 5/8 bore smooth, 1/4 x 1 1/8 roll pin

$

$

Not available

18

Husqvarna 540054042

KIT, WHEEL, RIGHT REAR

Note: Includes 10 x 1.75 wheel 5/8 bore bearing, 5/8 external self locking retaining ring (2 ea.)

$113.99

$

Usually ships in 3-10 days

0

19

Husqvarna 540200195

LIFT ARM ROD KIT

Note: Includes rod and caps (2 ea.)

$

$

Not available

20

Husqvarna 540054028

LIFT ARM ASSY OR

Note: Includes lift arm weldment, torsion spring

$

$

Not available

21

Husqvarna 540054014

TORSION SPRING
(Superseded to 539054014)

$

$

Not available

22

Husqvarna 540000315

BEARING
(Superseded to 539000315)

$39.99

$

In Stock, Qty 6

0

23

Husqvarna 540005185

STAMPING KIT
(Superseded to 539005185)

Note: Includes 5/16-18 hex nut (2 ea.), 5/16-18 x 3/4 carriage bolt (2 ea.), bearing flanges (2 ea.), 5/16 lockwashers (2 ea.)

$15.99

$

In Stock, only 4 left!

0

24

Husqvarna 540005005

ROTOR CAP
(Superseded to 539005005)

$22.99

$

Usually ships in 3-10 days

0

25

Husqvarna 540009127

BEARING

$

$

Not available

26

Husqvarna 540054049

STAMPING KIT
(Superseded to 539054049)

Note: 1/4-20 hex nut (2 ea.), 1/4-20 x 3/4 carriage bolt (2 ea.), bearing flanges (2 ea.)

$

$

Not available

27

Husqvarna 540054015

V-PULLEY
(Superseded to 539054015)

$

$

Not available

28

Husqvarna 540054016

BUSHING KIT

Note: Bushing 3/4 bore with screws, key 3/16 x 1

$

$

Not available

29

Husqvarna 540054018

V-BELT
(Superseded to 539054018)

$

$

Not available

30

Husqvarna 540000339

V-BELT
(Superseded to 539000339)

Note: (Used for 8HP engine only)

$

$

Not available

31

Husqvarna 540054019

V-PULLEY
(Superseded to 539054019)

Note: Includes V-pulley 2 1/2 OD x 3/4 bore, 3/16 x 1 square key

$193.99

$

Usually ships in 3-10 days

0

32

Husqvarna 540054020

V-PULLEY
(Superseded to 539054020)

Note: Includes V-pulley 2 1/2 OD x 1" bore, 1/4 x 1 square key (used for 8HP engine only)

$

$

Not available

33

Husqvarna 540054021

ENGINE BOLT KIT
(Superseded to 539054021)

Note: Includes 5/16-18 x 1 1/2 carriage bolt (4 ea.), 5/16 washer (8 ea.), 5/16-18 hex lock nut (4 ea.)

$

$

Not available

34

Husqvarna 540054030

DECK

$

$

Not available

35

Husqvarna 540005162

DEFLECTOR KIT
(Superseded to 540054058)

Note: Includes deflector strap (2 ea.), deflector plate, 1/4-20 x 3/4 slotted round screw (4 ea.), 1/4-20 nut hex (4 ea.), 1/4 lockwasher (4 ea.)

$

$

Not available

36

Husqvarna 540005161

DEFLECTOR, NEOPRENE

$

$

Not available

37

Husqvarna 540054043

KIT, HOPPER LID

Note: Includes lid, window and hardware

$

$

Not available

38

Husqvarna 540054044

DIAL GAUGE KIT

Note: Includes dial bracket and hardware

$

$

Not available

39

Husqvarna 540054045

KIT, PUSH-PULL CONTROL
(Superseded to 539054045)

Note: Includes push/pull control, control mount plate, bracket (2 ea.), gate and hardware

$136.99

$

Usually ships in 3-10 days

0

40

Husqvarna 540054046

SEED HOPPER

$

$

Not available

41

Husqvarna 540054047

AGITATOR BAR
(Superseded to 539054047)

$

$

Not available

42

Husqvarna 540054048

AXLE

$

$

Not available

43

Husqvarna 540006900

SEEDER CONVERSION KIT

Note: Includes hopper, agitator, seeder control, and hardware (not shown)

$

$

Not available

44

Husqvarna 54054055

Kit Decal SD18 Seeder

Note: (Not shown)

$

$

Currently unavailable
