SD 18 (968981010) - Husqvarna Dethatcher (2000-12) Spring Tine Reel Parts Diagram

Dethatcher

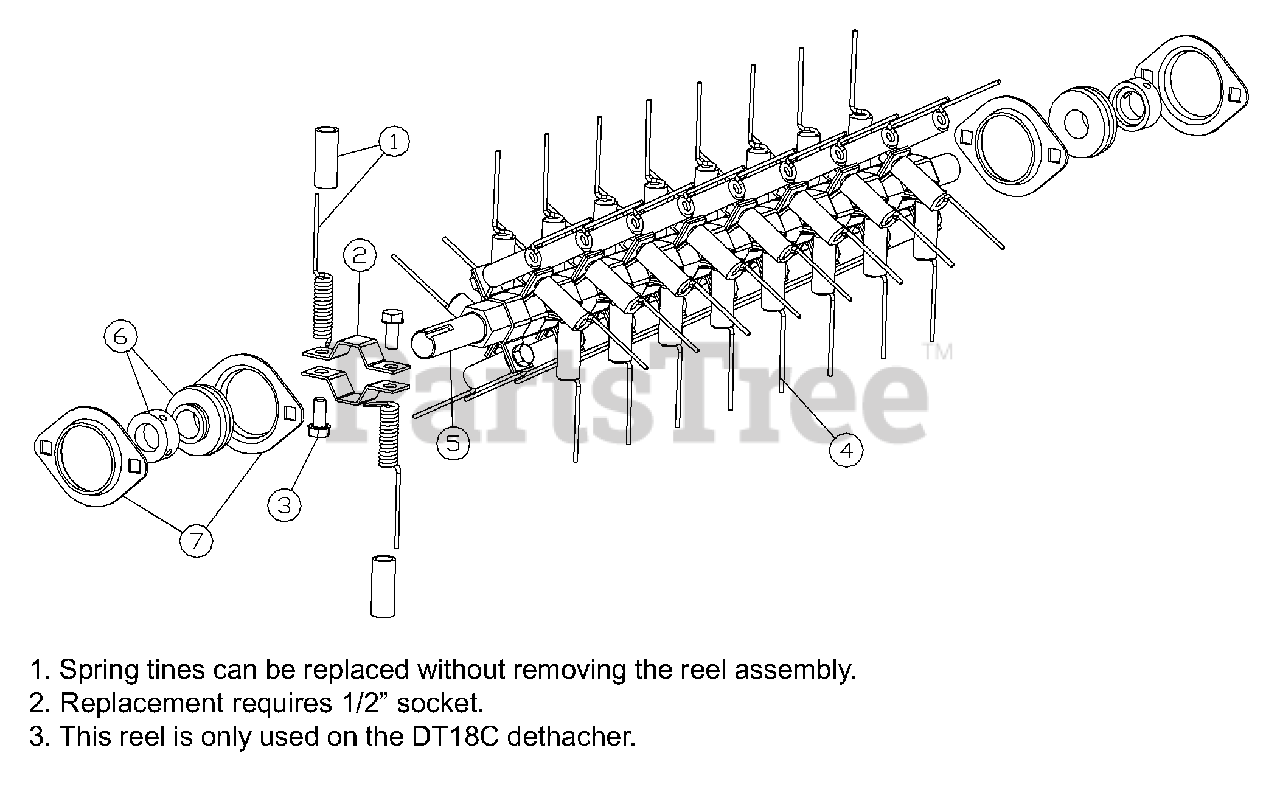

Spring Tine Reel Parts Diagram

  • Title

1

Husqvarna 540091010

Spring tine w/ sleeve

Note: (Orders in increments of 100 are preferred)

$21.99

$

In Stock, only 2 left!

0

2

Husqvarna 540091011

Clamp, tine

Note: (Orders in increments of 100 are preferred)

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 540091012

Screw for tine

Note: (Orders in increments of 100 are preferred)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 540054050

Reel tine assembly

Note: Complete w/o bearings

$

$

Not available

4

Husqvarna 540054056

Reel tine assembly

Note: Complete w/ bearings

$

$

Not available

5

Husqvarna 540054051

Shaft, tine reel

$

$

Not available

6

Husqvarna 540000315

Bearing, 3/4 with locking collar
(Superseded to 539000315)

$34.99

$

In Stock, Qty 10

0

7

Husqvarna 540005185

Stamping kit
(Superseded to 539005185)

Note: Includes flanges and hardware

$17.99

$

In Stock, only 3 left!

0
