Select 24 (CMXGBAM213101) (31AS6K1EB93) - Craftsman 24" Snow Blower (2022) Chute Parts Diagram

24" Snow Blower

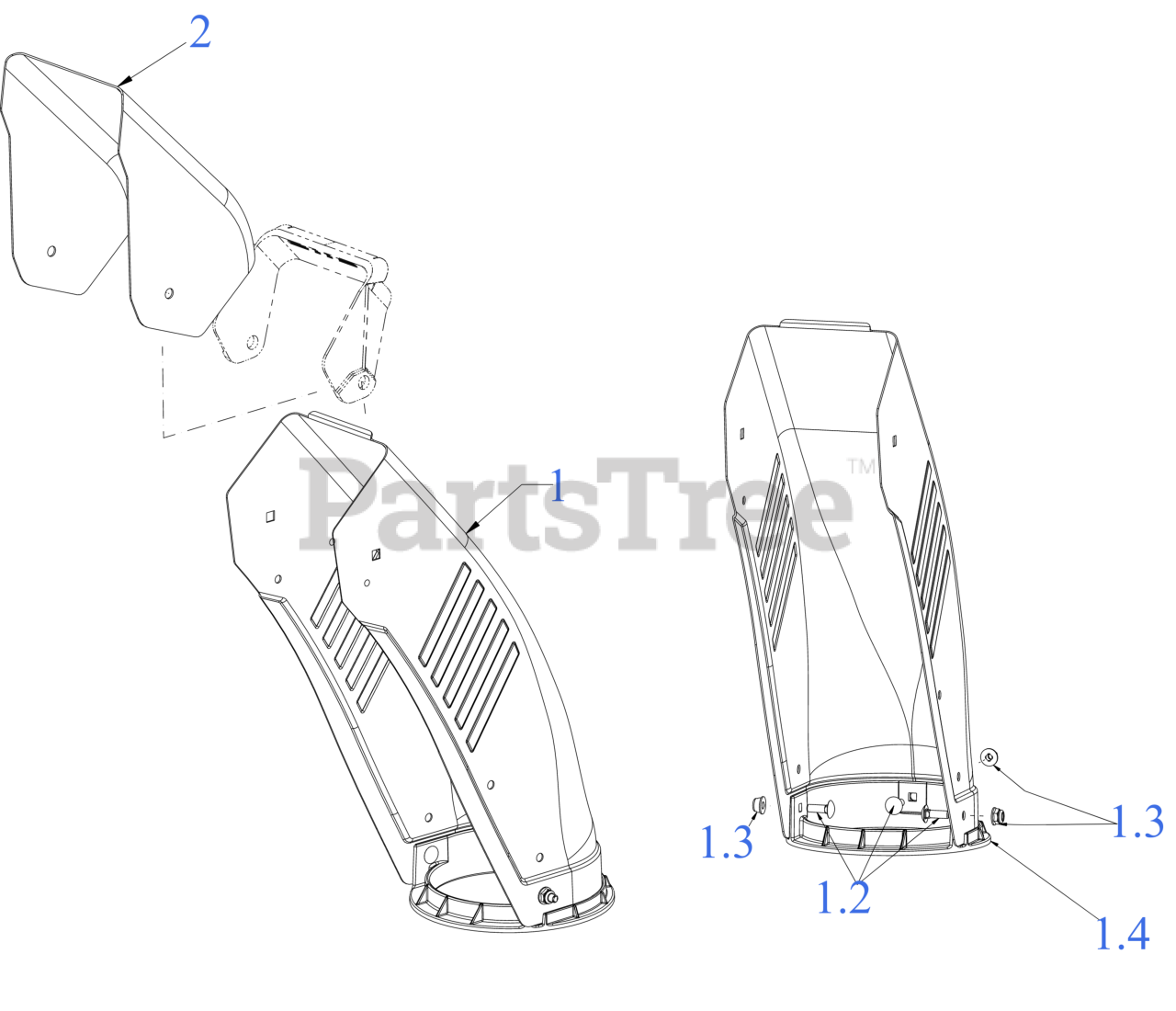

Chute Parts Diagram

  • Title

1

MTD 684-06765

STEEL CHUTE

Note: *CHOOSE COLOR WHEN ORDERING*

$42.99

$

Usually ships in 3-6 days

0

1.2

MTD 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 12

0

1.3

MTD 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

1.4

MTD 731-26321

CHUTE BASE 5.0 DIA

$10.99

$

Usually ships in 3-6 days

0

2

MTD 790-03875

STEEL CHUTE (UPPER)

Note: *CHOOSE COLOR WHEN ORDERING*

$39.99

$

Usually ships in 3-6 days

0
