Select 24 (CMXGBAM213101) (31AS6K1EB93) - Craftsman 24" Snow Blower (2022) Panel Parts Diagram

24" Snow Blower

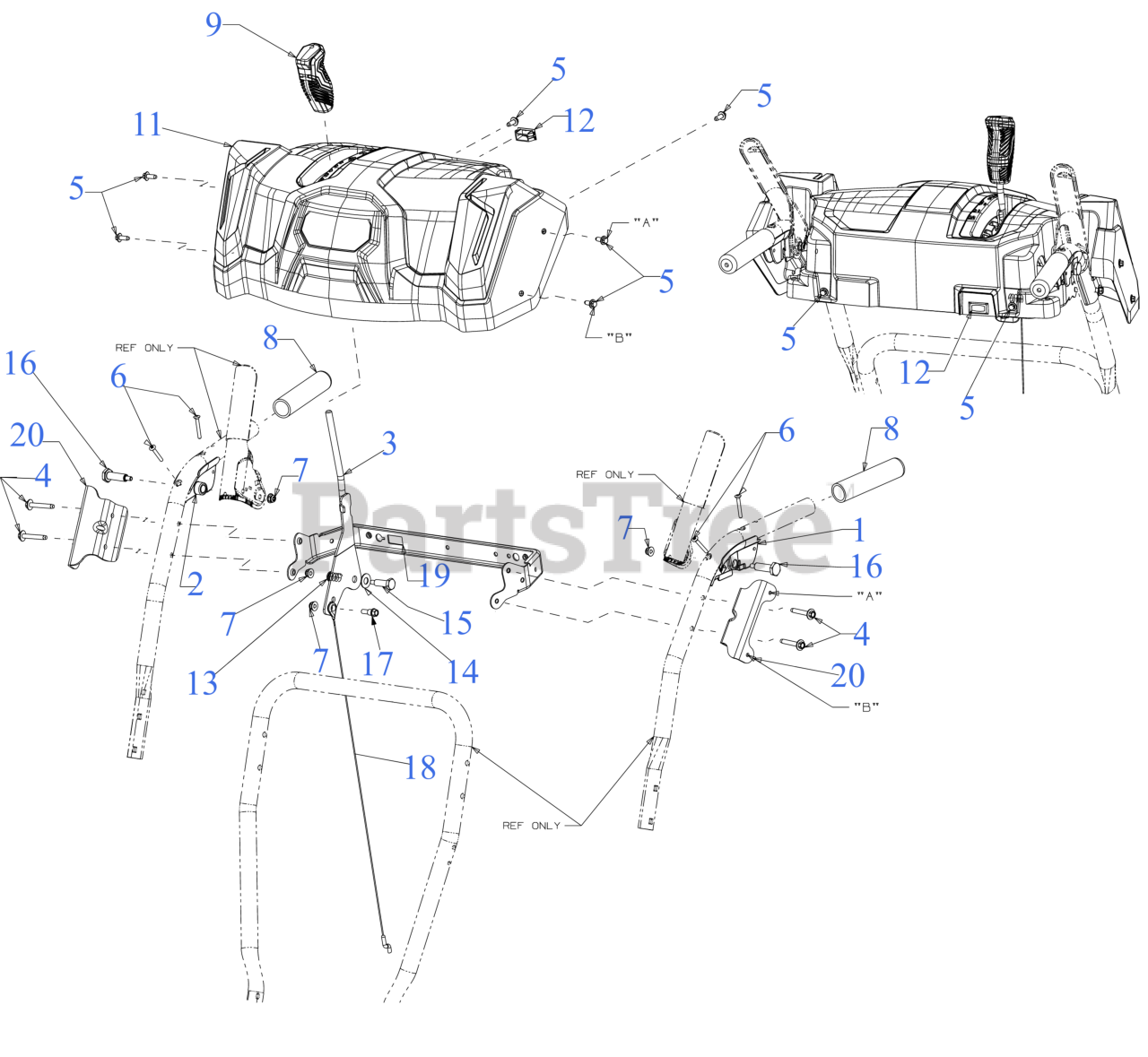

Panel Parts Diagram

  • Title

1

MTD 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, only 1 left!

0

1

MTD 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 8

0

2

MTD 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

In Stock, only 3 left!

0

2

MTD 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 8

0

3

MTD 984-05229

SPEED SHIFT CONTROL ASSEMBLY
(Superseded to 984-05229-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 984-05229-0637

SPEED SHIFT CONTRO - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

4

MTD 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

5

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 13

0

7

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

MTD 720-0274

GRIP

$11.99

$

In Stock, Qty 6

0

9

MTD 720-05970

GRIP

$5.99

$

Usually ships in 3-6 days

0

11

MTD 731-26375

HANDLE PANEL

$73.99

$

Usually ships in 3-6 days

0

12

MTD 731-26552

SWITCH PLUG

$2.49

$

Usually ships in 3-6 days

0

13

MTD 732-04756

COMPRESSION SPRING

$3.49

$

Usually ships in 3-6 days

0

14

MTD 736-0267

FLAT WASHER

Note: (11/1/22 & Before)

$4.49

$

Usually ships in 3-6 days

0

14

MTD 736-05080

FLAT WASHER

Note: (11/1/22 & After)

$3.49

$

Usually ships in 3-6 days

0

15

MTD 738-04125

SHOULDER SCREW

$4.99

$

In Stock, Qty 18

0

16

MTD 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, only 1 left!

0

17

MTD 738-05149A

SHOULDER SCREW .342X.335X1/4-20

$6.49

$

Usually ships in 3-6 days

0

18

MTD 746P06984

SELECTION CABLE

$5.49

$

In Stock, only 2 left!

0

19

MTD 790-00248E

HANDLE SUPPORT BRACKET
(Superseded to 790-00248E-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00248E-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

20

MTD 790-00846

HANDLE PANEL BRACKET
(Superseded to 790-00846-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00846-0637

BRACKET-HANDLE PAN - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0
