Select 26 (CMXGBAM213102) (31AM6C2FB93) - Craftsman 26" Snow Blower (2022) Panel Parts Diagram

26" Snow Blower

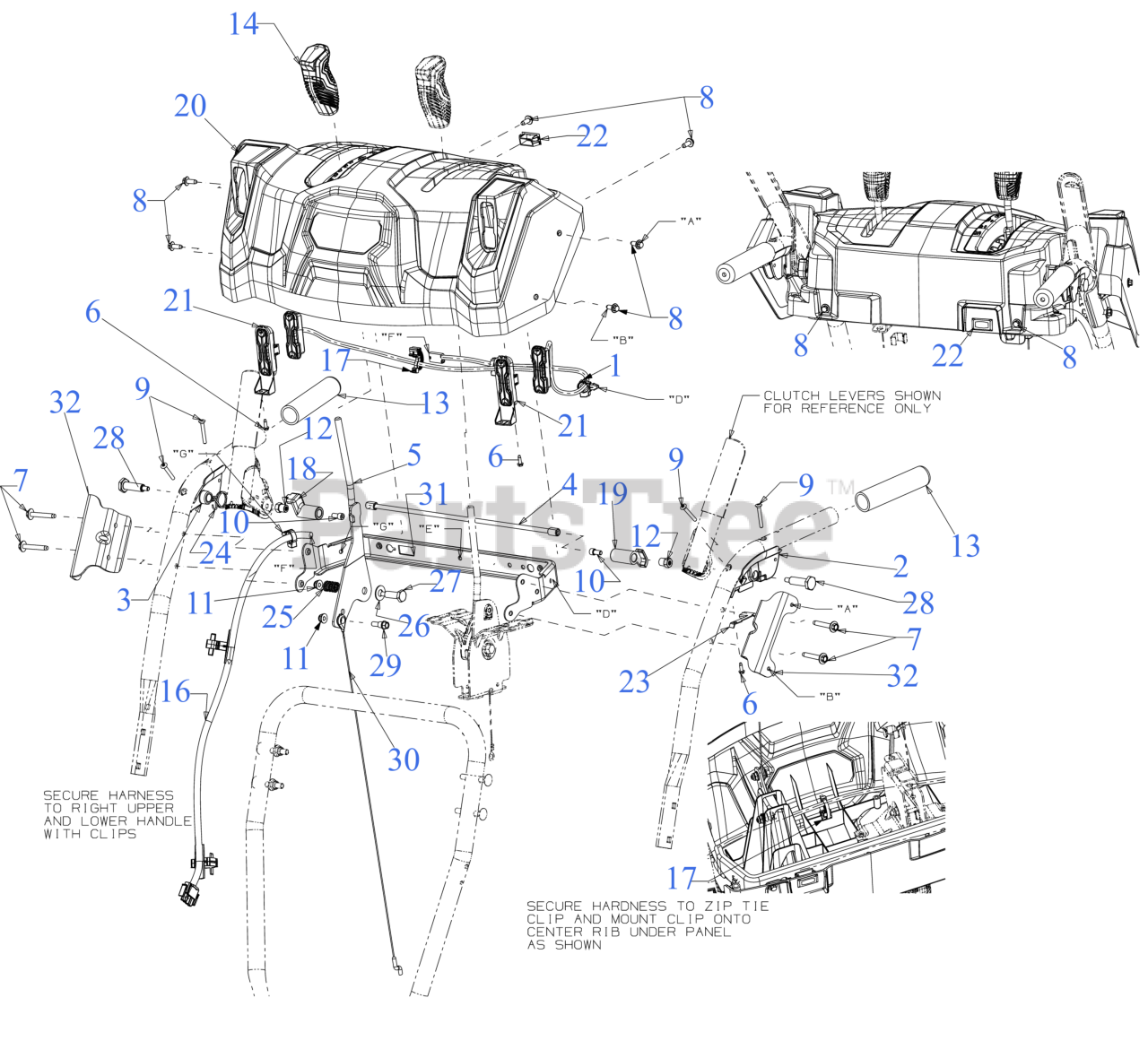

Panel Parts Diagram

  • Title

1

MTD 625P08430A

HEADLIGHT HARNESS (W/LED)

$46.99

$

In Stock, only 1 left!

0

2

MTD 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, only 1 left!

0

2

MTD 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 8

0

3

MTD 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

In Stock, only 3 left!

0

3

MTD 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 8

0

4

MTD 684-04250

PIVOT ROD

$12.99

$

In Stock, Qty 8

0

5

MTD 984-05229

SPEED SHIFT CONTROL ASSEMBLY
(Superseded to 984-05229-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 984-05229-0637

SPEED SHIFT CONTRO - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

6

MTD 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, Qty 11

0

7

MTD 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

8

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 13

0

10

MTD 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, Qty 13

0

11

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04081A

HEX NUT W/PATCH

$7.49

$

In Stock, Qty 7

0

13

MTD 720-0274

GRIP

$11.99

$

In Stock, Qty 6

0

14

MTD 720-05970

GRIP

$5.99

$

Usually ships in 3-6 days

0

16

MTD 725P17177

LED HEADLIGHT HARNESS

$35.99

$

Usually ships in 3-6 days

0

17

MTD 729-08608

EDGE MOUNT ZIP TIE CLIP

$9.99

$

Usually ships in 3-6 days

0

18

MTD 731-04894D

LOCK PLATE

$5.49

$

In Stock, only 4 left!

0

19

MTD 731-04896C

CLUTCH LOCK CAM

$4.49

$

In Stock, Qty 12

0

20

MTD 731-26396

HANDLE PANEL

$62.99

$

Usually ships in 3-6 days

0

21

MTD 731-26415

LENS BEZEL

$2.99

$

Usually ships in 3-6 days

0

22

MTD 731-26552

SWITCH PLUG

$2.49

$

Usually ships in 3-6 days

0

23

MTD 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

24

MTD 732-04238B

TORSION SPRING

$5.49

$

In Stock, Qty 12

0

25

MTD 732-04756

COMPRESSION SPRING

$3.49

$

Usually ships in 3-6 days

0

26

MTD 736-0267

FLAT WASHER

Note: (11/1/22 & Before)

$4.49

$

Usually ships in 3-6 days

0

26

MTD 736-05080

FLAT WASHER

Note: (11/1/22 & After)

$3.49

$

Usually ships in 3-6 days

0

27

MTD 738-04125

SHOULDER SCREW

$4.99

$

In Stock, Qty 18

0

28

MTD 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, only 1 left!

0

29

MTD 738-05149A

SHOULDER SCREW .342X.335X1/4-20

$6.49

$

Usually ships in 3-6 days

0

30

MTD 746P06984

SELECTION CABLE

$5.49

$

In Stock, only 2 left!

0

31

MTD 790-00248E

HANDLE SUPPORT BRACKET
(Superseded to 790-00248E-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00248E-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

32

MTD 790-00846

HANDLE PANEL BRACKET
(Superseded to 790-00846-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00846-0637

BRACKET-HANDLE PAN - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0
