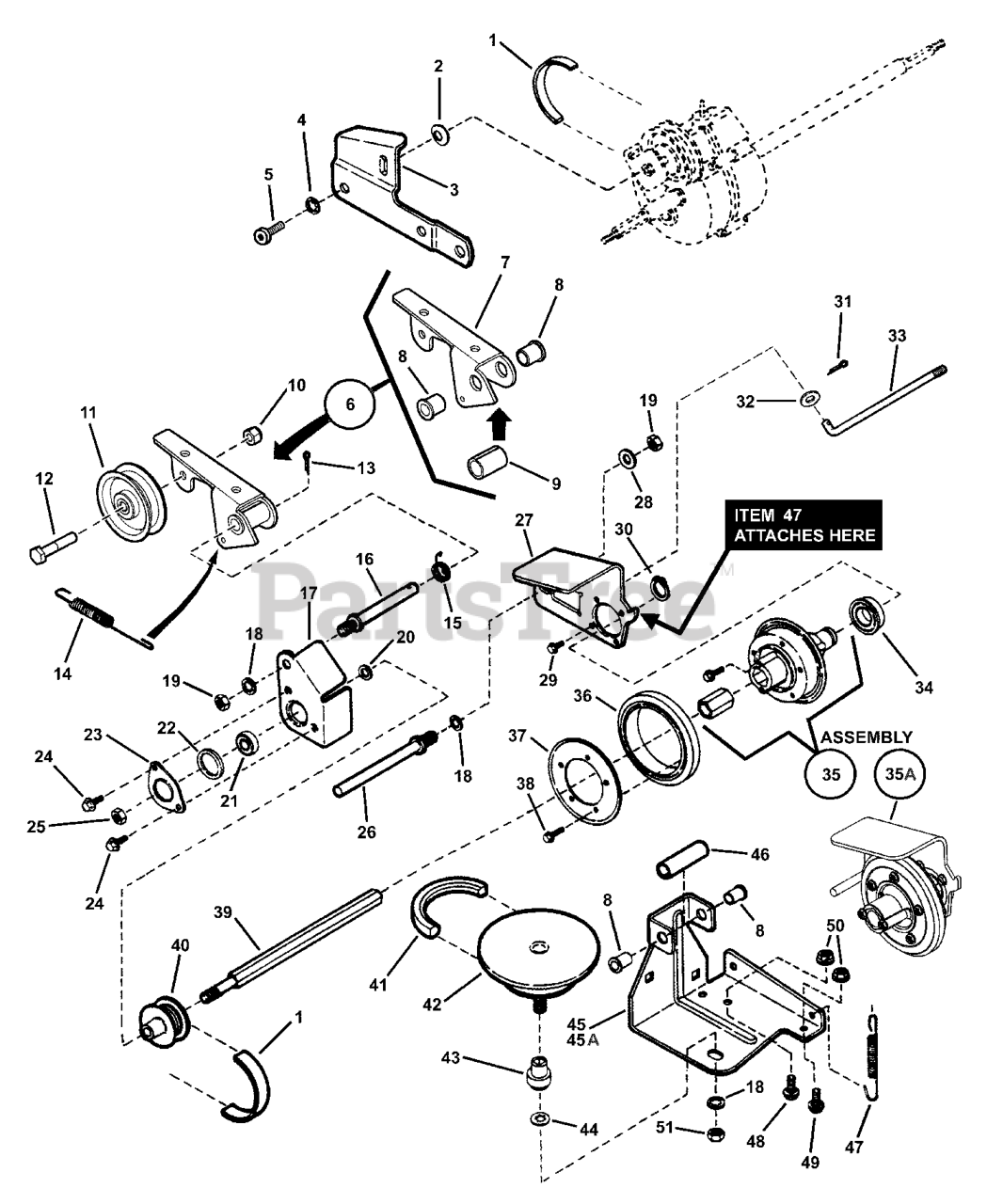

Series 20 (7800469) - Ferris Series 20 Commercial Trim 21" Walk-Behind Mower, 5.5hp Honda Drive System Self-Propelled Parts Diagram

Series 20 Commercial Trim 21" Walk-Behind Mower, 5.5hp Honda

Drive System Self-Propelled Parts Diagram

  • Title

1

Ferris 7012354

BELT, Poly-V
(Superseded to 7012354YP)

$13.99

$

In Stock, Qty 18

0

2

Ferris 7011724

WASHER, 44 x .78 x .025 Curved
(Superseded to 703940)

$4.49

$

In Stock, Qty 11

0

3

Ferris 7034179A

LINK, Differential
(Superseded to 7034179BMYP)

$20.99

$

In Stock, only 1 left!

0

4

Ferris 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 7091542

SCREW, 5/16-18 x 1/2" Pan Head Self-Tap (Torx)
(Superseded to 703932)

$4.99

$

In Stock, only 1 left!

0

6

Ferris 7500154

ASSEMBLY, Idler Arm, Bushing & Spacer
(Superseded to 7600173YP)

$32.99

$

Usually ships in 2-12 days

0

7

Ferris 7032832A

ARM, Clutch Idler
(Superseded to 7032832AYP)

$22.99

$

Usually ships in 2-12 days

0

8

Ferris 7012306

BUSHING, Flange (Powdered Metal)

$5.99

$

In Stock, Qty 18

0

9

Ferris 7100447

SPACER, Idler Arm
(Superseded to 703974)

$6.49

$

Usually ships in 2-12 days

0

10

Ferris 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, only 2 left!

0

11

Ferris 7012124

PULLEY, Idler
(Superseded to 7012124YP)

$18.99

$

In Stock, Qty 15

0

12

Ferris 7091025

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, GR 5
(Superseded to 7091025YP)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 7091597

COTTER PIN, 3/32 x 1/2"
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

14

Ferris 7012122

SPRING, Clutch- 21S
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

15

Ferris 7012126

SPRING, Idler- Torsion
(Superseded to 7012126YP)

$4.49

$

In Stock, Qty 9

0

16

Ferris 7012111

STUD, Idler (3/8-24 thread)

$

$

Not available

17

Ferris 7031873

HOLDER, Bearing (Inner Half)
(Superseded to 7031873YP)

$

$

Not available

18

Ferris 7090390

WASHER, 3/8" Internal Tooth Lock

$

$

Not available

19

Ferris 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

$4.49

$

In Stock, Qty 8

0

20

Ferris 7012316

WASHER, 3/8" Flat
(Superseded to 703946)

$3.99

$

In Stock, Qty 10

0

21

Ferris 7028014

BALL BEARING, Spherical O.D., .38 I.D.
(Superseded to 7028014YP)

$17.99

$

In Stock, Qty 15

0

22

Ferris 7011025

O-RING
(Superseded to 704008)

$3.99

$

In Stock, only 4 left!

0

23

Ferris 7031809

HOLDER, Bearing (Outer Half)
(Superseded to 7031809YP)

$4.49

$

In Stock, Qty 14

0

24

Ferris 7091122

SCREW, 1/4-20 x 1/2" Hex Flange Self-Tap
(Superseded to 7091122SM)

$3.99

$

In Stock, Qty 20+

0

25

Ferris 7090289

NUT, 3/8-24 Hex Center Lock, GR 5
(Superseded to 703458)

$4.99

$

In Stock, Qty 12

0

26

Ferris 7012125

GUIDE, Thrust Plate (3/8-24 thread)

$

$

Not available

27

Ferris 7300977A

THRUST PLATE, Short
(Superseded to 7300977AYP)

$15.99

$

Usually ships in 2-12 days

0

28

Ferris 7090122

WASHER, 3/8" Flat

$

$

Not available

29

Ferris 7090981

SCREW, #10-32 x 1/4" Self-Tap Machine
(Superseded to 704061)

$3.99

$

In Stock, Qty 20+

0

30

Ferris 7010746

RETAINING RING, .625 External
(Superseded to 703975)

$3.99

$

In Stock, Qty 16

0

31

Ferris 7090673

COTTER PIN, .06 x .50
(Superseded to 703464)

$4.49

$

In Stock, only 1 left!

0

32

Ferris 7091294

WASHER, .28 x .63 x .06 Flat

$

$

Not available

33

Ferris 7074145

LINK, Transfer (1/4-28 thread)
(Superseded to 7074145YP)

$9.49

$

In Stock, Qty 7

0

34

Ferris 7029027

BALL BEARING, 3/4" Bore- Commercial

$

$

Not available

35

Ferris 7061276

KIT, Driven Disc Bushing & Hub
(Superseded to 7061276YP)

$75.99

$

In Stock, Qty 9

0

35A

Ferris 7501000

* ASSEMBLY, Driven Disc
(Superseded to 7600109YP)

$143.99

$

In Stock, only 3 left!

0

36

Ferris 7023364

DRIVEN RING

$

$

Not available

37

Ferris 7031013

PLATE, Ring Retaining
(Superseded to 7031013YP)

$5.99

$

In Stock, Qty 6

0

38

Ferris 7090913

SCREW, #10-24 x 1/2" Self-Tap Machine

$3.49

$

In Stock, Qty 12

0

39

Ferris 7072284

SHAFT, Hex (3/8-24 thread, one end)
(Superseded to 7072284YP)

$25.99

$

Usually ships in 2-12 days

0

40

Ferris 7019383

PULLEY, Poly-V (2.00" O. D.)
(Superseded to 7019383YP)

$54.99

$

In Stock, only 2 left!

0

41

Ferris 7046784

BELT, Engine Drive (Stretch)
(Superseded to 7046784YP)

$19.99

$

In Stock, Qty 9

0

42

Ferris 7073528

ASSEMBLY, Steel Drive Disc
(Superseded to 7073528YP)

$38.99

$

In Stock, Qty 10

0

43

Ferris 7017696

BUSHING, Powdered Metal
(Superseded to 703971)

$5.99

$

In Stock, only 4 left!

0

44

Ferris 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

45A

Ferris 7052987A

ASSEMBLY, Deck Bracket (Incl. items 8, 45 & 46)
(Superseded to 7052987YP)

$42.99

$

In Stock, only 1 left!

0

45

Ferris 7033774

BRACKET, Deck, P21S
(Superseded to 7033774YP)

$42.99

$

In Stock, only 1 left!

0

46

Ferris 7021758

SPACER, .500 x .65 x 1.75
(Superseded to 703941)

$27.99

$

In Stock, Qty 6

0

47

Ferris 7029025

SPRING, Wheel Drive
(Superseded to 7029025YP)

$5.99

$

In Stock, Qty 20+

0

48

Ferris 7090731

BOLT, 5/16-18 x 1/2", Short Neck Carriage, GR 5
(Superseded to 703798)

$4.49

$

In Stock, Qty 20+

0

49

Ferris 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, GR 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

50

Ferris 7091070

NUT, 5/16-18 Hex Flange Lock GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

51

Ferris 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

$4.49

$

In Stock, Qty 5

0
