SFC30-7CV - Scag 30" Walk-Behind Mower, 224cc Kohler (SN: T7200001 - T7299999) CUTTER DECK LIFT SYSTEM - FIXED WHEEL Parts Diagram

30" Walk-Behind Mower, 224cc Kohler

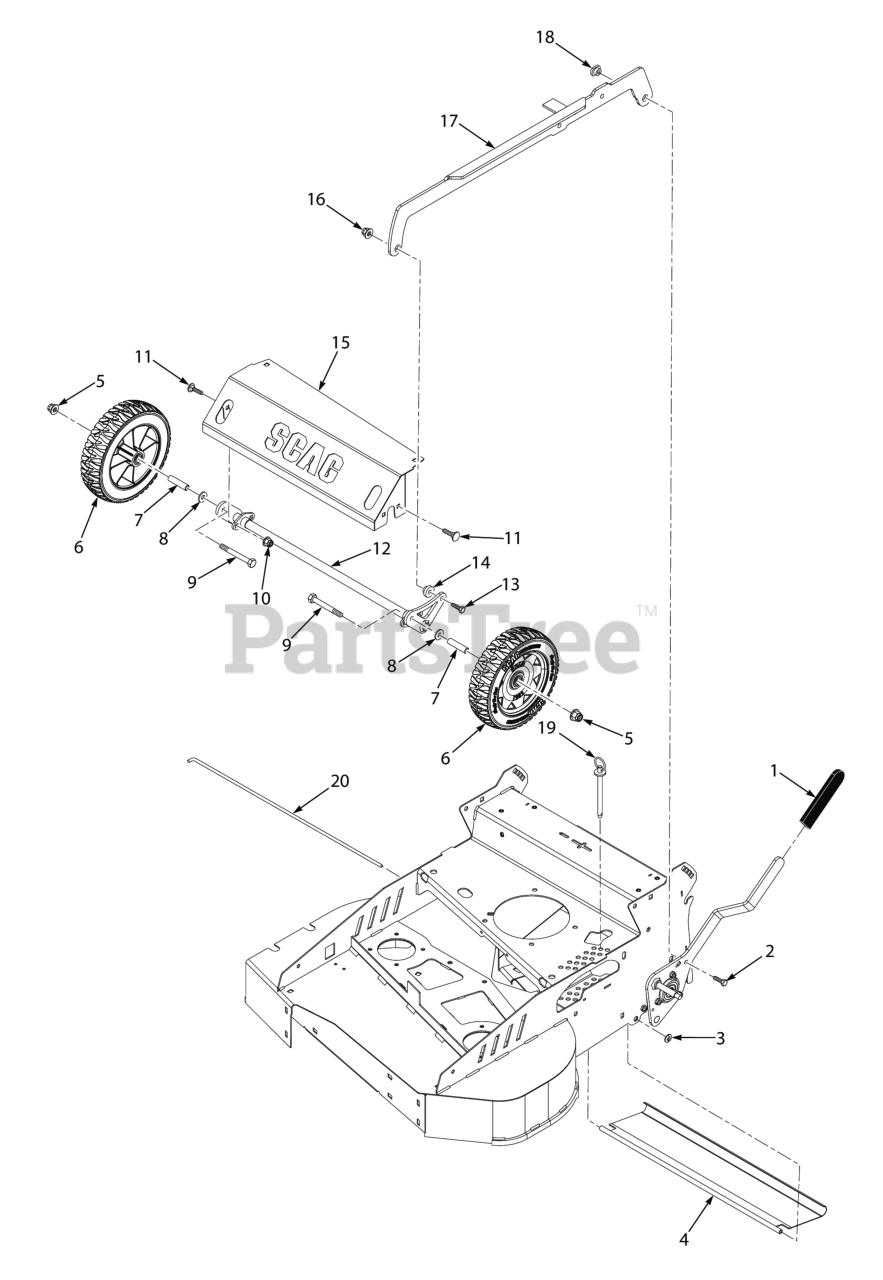

CUTTER DECK LIFT SYSTEM - FIXED WHEEL Parts Diagram

  • Title

1

Scag 486932

Grip, Deck Lift

$1.49

$

Usually ships in 2-12 days

0

2

Scag 04001-18

Bolt, Hex Head, 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 10

0

3

Scag 04024-03

Nut, Push-On 5/16-18

$1.49

$

In Stock, only 1 left!

0

4

Scag 463381

Trail Shield

$34.99

$

Usually ships in 2-12 days

0

5

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 17

0

6

Scag 486702

Wheel Assembly, Front

$70.99

$

In Stock, Qty 9

0

Scag 486765

Bearing (x2)

$12.99

$

In Stock, only 1 left!

0

7

Scag 431123

Spacer, Front Wheel

$5.49

$

In Stock, only 4 left!

0

8

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

9

Scag 04001-22

Capscrew, Hex Head 3/8-16 x 2.75"

$1.49

$

In Stock, Qty 8

0

10

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

11

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

12

Scag 453171

Weldment, Front Axle

$87.99

$

Usually ships in 2-12 days

0

13

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 20+

0

14

Scag 43086

BUSHING, SPEED ADJUSTMENT LEVER

$5.99

$

In Stock, only 1 left!

0

15

Scag 453219

Weldment, Front Axle Support

$132.99

$

Usually ships in 2-12 days

0

16

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 17

0

17

Scag 453212

Weldment Deck Lift

$57.99

$

Usually ships in 2-12 days

0

18

Scag 431125

Pivot, Deck Weldment

$7.49

$

Usually ships in 2-12 days

0

19

Scag 04067-14

Ring Pin, 3/8 x 4"

$17.99

$

In Stock, only 2 left!

0

20

Scag 44246

Rod, Trail Shield

$5.49

$

In Stock, only 2 left!

0
