SFH 13320KW (5091002) - Snapper 32" Walk-Behind Mower, 13hp 32" Mower Deck - Frame, Caster & Shield Parts Diagram

32" Walk-Behind Mower, 13hp

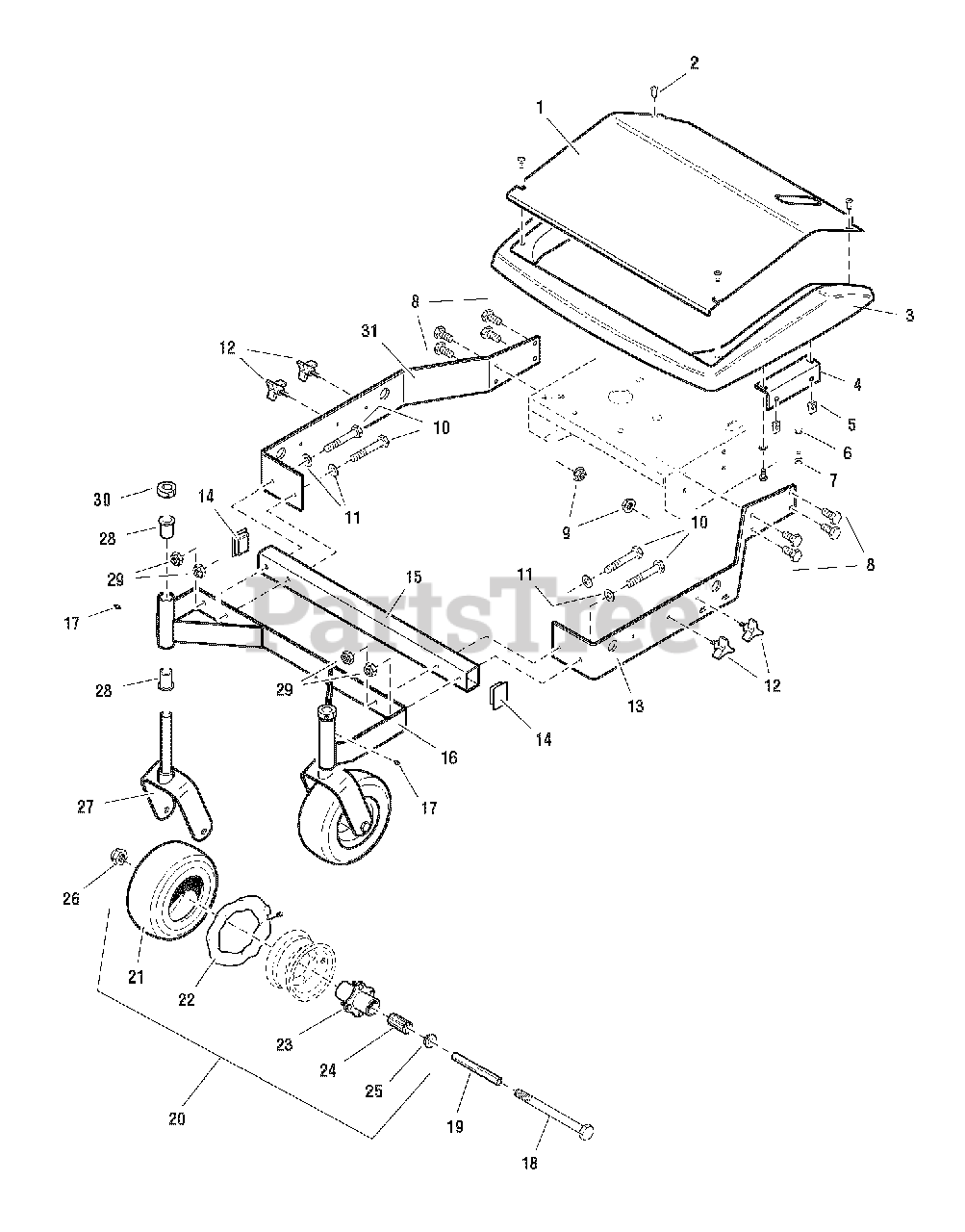

32" Mower Deck - Frame, Caster & Shield Parts Diagram

  • Title

1

Snapper 5049101

SHIELD INSERT, Complete (includes decals)
(Superseded to 5049101YP)

Note: Was 504848145

$125.99

$

Usually ships in 2-12 days

0

2

Snapper 5025299X4

SCREW, Allen Head, 1/4-20 x 1/2
(Superseded to 5106469)

$2.49

$

Usually ships in 2-12 days

0

3

Snapper 5048150

GUARD, Mower Deck
(Superseded to 5048150SM)

$142.99

$

Usually ships in 2-12 days

0

4

Snapper 5048353D

SHIELD MOUNT BRACKET
(Superseded to 5048353DYP)

$22.99

$

Usually ships in 2-12 days

0

5

Snapper 3022308

BODY CLIP, 5/16-18

Note: Was 5022308

$

$

Not available

6

Snapper 5025169

LOCKWASHER, 1/4
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 5025010X6

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

8

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

9

Snapper 5025128

NUT, Hex Serrated Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

Note: Was 5025013-20

$2.99

$

Usually ships in 2-12 days

0

11

Snapper 3025156

WASHER, 3/8
(Superseded to 703590)

Note: Was 5025156

$3.99

$

In Stock, Qty 16

0

12

Snapper 5022319

KNOB
(Superseded to 5022319SM)

$7.99

$

Usually ships in 2-12 days

0

13

Snapper 5047648D

FRAME RAIL - LH

$

$

Currently unavailable

14

Snapper 5022098

PLASTIC CAP
(Superseded to 5022098SM)

$3.99

$

In Stock, Qty 5

0

15

Snapper 5048194D

CROSS TUBE
(Superseded to 5048194DYP)

$61.99

$

Usually ships in 2-12 days

0

16

Snapper 5047677D

CASTER MOUNT FRAME
(Superseded to 5047677DYP)

$207.99

$

Usually ships in 2-12 days

0

17

Snapper 5020095

GREASE FITTING, 1/4-28
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 5025017X44

CAPSCREW, Hex Head, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 1 left!

0

19

Snapper 5041657

AXLE, Caster
(Superseded to 5041657SM)

$13.99

$

In Stock, only 2 left!

0

20

Snapper 5021181S

WHEEL & TIRE ASSEMBLY, Silver, 9 x 3.5 x 4, Complete (includes Ref 18 - 22)
(Superseded to 5021181SSM)

$100.99

$

In Stock, only 4 left!

0

21

Snapper 5021181X1

TIRE, Front, 9 x 3.5 x 4
(Superseded to 5021181X1SM)

$47.99

$

Usually ships in 2-12 days

0

22

Snapper 5021181X2

TUBE, for 9 x 3.5 x 4 Tire
(Superseded to 5021181X2SM)

$24.99

$

Usually ships in 2-12 days

0

23

Snapper 5021181SX3

HUB & BEARING ASSEMBLY, Complete, Silver (includes Ref 21 & 22)
(Superseded to 5021181SX3SM)

$59.99

$

Usually ships in 2-12 days

0

24

Snapper 5021182

BEARING, ROLLER 3/4" ID X 3.25" (ONE PER TIRE)(SV)
(Superseded to 5021182SM)

$18.99

$

In Stock, only 1 left!

0

25

Snapper 5021043

RETAINER, Bearing (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

26

Snapper 3025056

NUT, Hex Nylon Lock, 1/2-13
(Superseded to 7091325YP)

Note: Was 5025056

$4.99

$

In Stock, Qty 9

0

27

Snapper 5048172D

CASTER YOKE
(Superseded to 5048172DYP)

$92.99

$

Usually ships in 2-12 days

0

28

Snapper 5020823

BUSHING, Flange
(Superseded to 5020823SM)

$10.99

$

In Stock, only 2 left!

0

29

Snapper 5025096

NUT, Hex Nylon Lock, 3/8-16
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

30

Snapper 5010114

COLLAR, Split, 3/4
(Superseded to 5010114SM)

$19.99

$

Usually ships in 2-12 days

0

31

Snapper 5047649D

FRAME RAIL - RH
(Superseded to 5047649DYP)

$84.99

$

Usually ships in 2-12 days

0

32

Snapper 5023274

VINYL CAP 1.75 x 1 (Not shown)
(Superseded to 5023274SM)

$5.99

$

Usually ships in 2-12 days

0

33

Snapper 5048968D

CASTER MOUNT FRAME W/ LOCKS, Complete (includes Ref No. 17 & 28)
(Superseded to 5048968DYP)

Note: not shown

$444.99

$

Usually ships in 2-12 days

0

34

Snapper 5048965D

CASTER YOKE (use with Ref No. 33, part no. 504848968)

Note: not shown

$

$

Currently unavailable
