SFH 13320KW (5091002) - Snapper 32" Walk-Behind Mower, 13hp 32" Mower Deck - Height Adjustment Parts Diagram

32" Walk-Behind Mower, 13hp

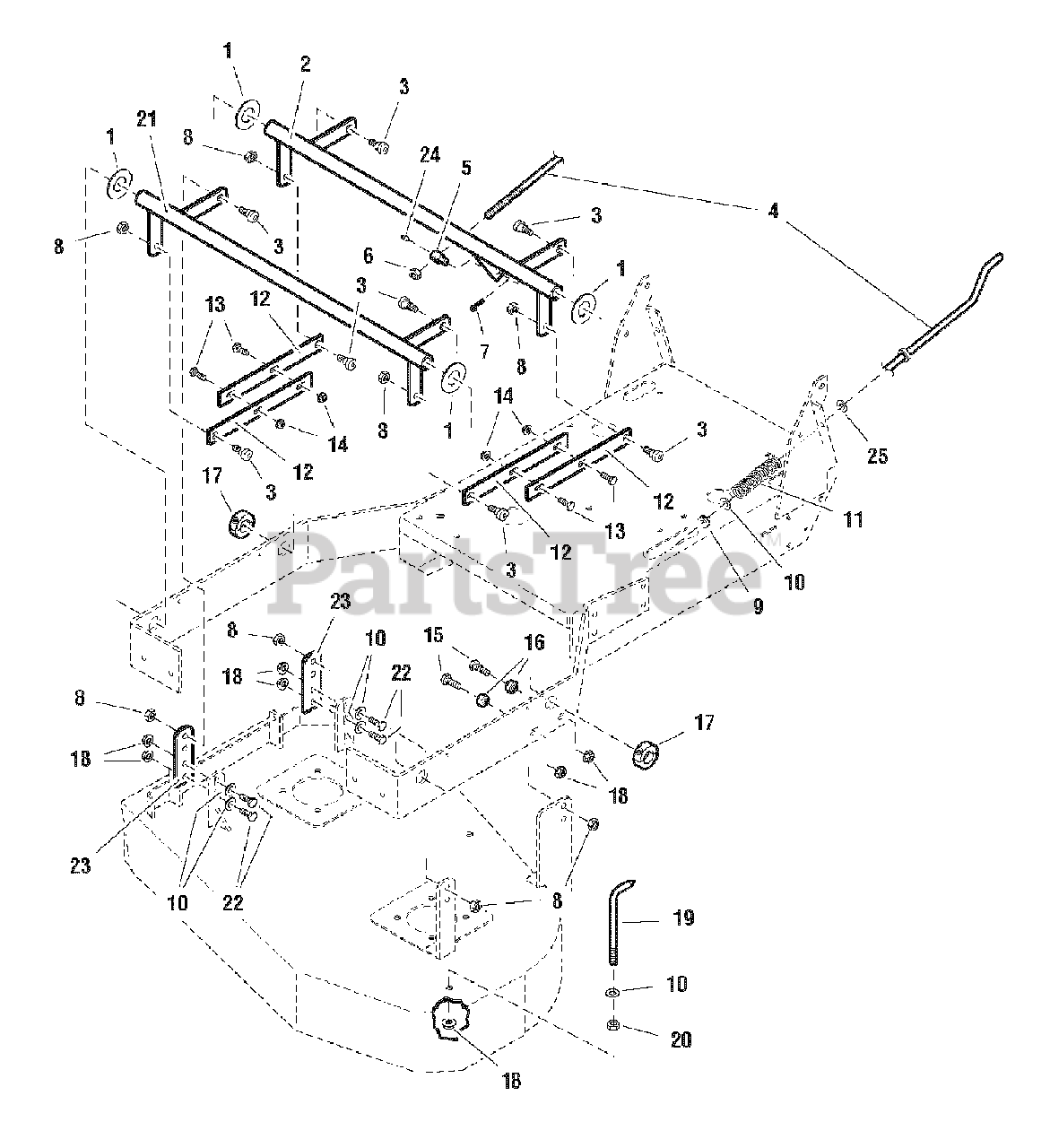

32" Mower Deck - Height Adjustment Parts Diagram

  • Title

1

Snapper 5025162

WASHER, 1"
(Superseded to 5025162SM)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 5047682D

DECK LIFT PIVOT - REAR
(Superseded to 5047682DYP)

$131.99

$

Usually ships in 2-12 days

0

3

Snapper 5025356

SHOULDER BOLT, 3/8-16 x 1/2 x 3/8
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

4

Snapper 5047655

HEIGHT ADJUST ROD
(Superseded to 5047655SM)

$70.99

$

Usually ships in 2-12 days

0

5

Snapper 5048526

LINKAGE ADJUSTER
(Superseded to 5048526SM)

$34.99

$

Usually ships in 2-12 days

0

6

Snapper 5025100

NUT, Hex Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7091597

PIN, Cotter
(Superseded to 703312)

Note: Was 5025201-6

$3.99

$

In Stock, Qty 20+

0

8

Snapper 5025046

NUT, Hex Top Lock, 3/8-16
(Superseded to 5025046SM)

$3.49

$

In Stock, Qty 6

0

9

Snapper 5010546

COLLAR, Set, 3/8
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

10

Snapper 3025156

WASHER, 3/8
(Superseded to 703590)

Note: Was 5025156

$3.99

$

In Stock, Qty 14

0

11

Snapper 5022645

SPRING, Compression
(Superseded to 5022645SM)

$9.49

$

In Stock, only 1 left!

0

12

Snapper 5047710D

DECK ADJUST LINK
(Superseded to 5047710DYP)

$25.99

$

Usually ships in 2-12 days

0

13

Snapper 5025011X8

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

Note: Was 5025011-8

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 5025139

NUT, Hex Serrated Flange, 5/16-18
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

15

Snapper 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

16

Snapper 5044933

SPACER
(Superseded to 5044933SM)

$4.99

$

In Stock, only 1 left!

0

17

Snapper 5048549

COLLAR, Double Split, 1"
(Superseded to 5048549SM)

$17.99

$

Usually ships in 2-12 days

0

18

Snapper 5025128

NUT, Hex Serrated Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 5047737

CUT HEIGHT INDICATOR
(Superseded to 5047737SM)

$16.99

$

Usually ships in 2-12 days

0

20

Snapper 5025034

NUT, Hex, 3/8-16
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper 5047681D

DECK LIFT PIVOT - FRONT
(Superseded to 5047681DYP)

$119.99

$

Usually ships in 2-12 days

0

22

Snapper 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

Note: Was 5025013-6

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 5048439D

HANGER PLATE
(Superseded to 5048439DYP)

$16.99

$

Usually ships in 2-12 days

0

24

Snapper 5020095

GREASE FITTING, 1/4-28
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

25

Snapper 5048548

WASHER, Nylon, 3/8
(Superseded to 5048548SM)

$4.49

$

Usually ships in 2-12 days
