SFH 13320KW (5091002) - Snapper 32" Walk-Behind Mower, 13hp 32" Mower Deck - Housing, Spindles, Blades & Pulleys Parts Diagram

32" Walk-Behind Mower, 13hp

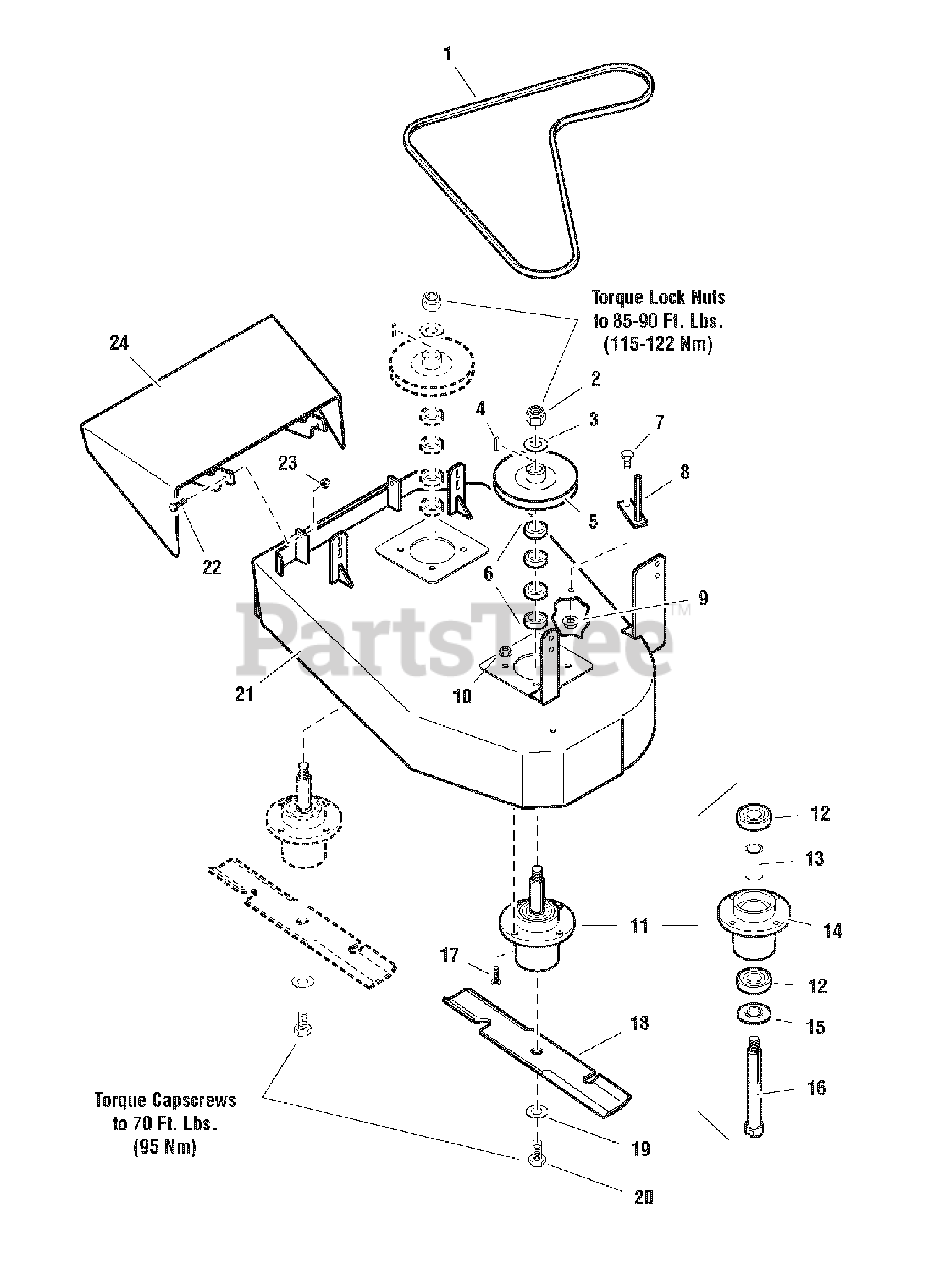

32" Mower Deck - Housing, Spindles, Blades & Pulleys Parts Diagram

  • Title

1

Snapper 5022918

BELT
(Superseded to 5022918SM)

$48.99

$

Usually ships in 2-12 days

0

2

Snapper 5025319

NUT, Hex Nylon Lock, 5/8-18
(Superseded to 5025319SM)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 5025318

WASHER, Spring, 5/8
(Superseded to 5025318SM)

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 5050407X1

KEY, 1/4 Sq. x 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 5047638

SPINDLE PULLEY
(Superseded to 5047638SM)

$57.99

$

Usually ships in 2-12 days

0

6

Snapper 5047725

SPACER
(Superseded to 5047725YP)

$13.99

$

Usually ships in 2-12 days

0

7

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

8

Snapper 5047777D

BELT GUIDE
(Superseded to 5047777DYP)

$30.99

$

Usually ships in 2-12 days

0

9

Snapper 5025126

NUT, Hex Serrated Flange, 3/8-16
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7091298

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

Note: Was 5025057

$3.99

$

In Stock, Qty 13

0

11

Snapper 5047640

SPINDLE ASSEMBLY, Complete (includes ref 12-16)
(Superseded to 5061096SM)

$243.99

$

Usually ships in 2-12 days

0

12

Snapper 5046363X5

BEARING, Ball
(Superseded to 5061095SM)

$222.99

$

Usually ships in 2-12 days

0

13

Snapper 5046363X4

SPACER, Bearing
(Superseded to 5046363X4YP)

$11.99

$

Usually ships in 2-12 days

0

14

Snapper 5046363X1

SPINDLE HOUSING
(Superseded to 5061095SM)

$222.99

$

Usually ships in 2-12 days

0

15

Snapper 5046363X3

TRASH SHIELD
(Superseded to 5061095SM)

$222.99

$

Usually ships in 2-12 days

0

16

Snapper 5047640X2

SPINDLE SHAFT
(Superseded to 5476402SM)

$42.99

$

Usually ships in 2-12 days

0

17

Snapper 5023156

CAPSCREW, Hex Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, Qty 5

0

18

Snapper 5020843

MOWER BLADE
(Superseded to 5020843ASM)

$24.99

$

In Stock, only 4 left!

0

19

Snapper 5025159

WASHER, USS, 5/8
(Superseded to 5025477SM)

$3.99

$

In Stock, only 2 left!

0

20

Snapper 5025320X14

CAPSCREW, Hex Head, 5/8-11 x 1-3/4
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 5049099

MOWER DECK HOUSING, Complete (includes decals)
(Superseded to 5049099DYP)

$1128.99

$

Usually ships in 2-12 days

0

22

Snapper 5025011X8

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

Note: Was 5025011-8

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7091298

NUT, HEX NYLON LOCK, 5/16-18
(Superseded to 703902)

Note: Was 5025057

$3.99

$

In Stock, Qty 13

0

24

Snapper 5049100

DISCHARGE CHUTE, Complete (includes decal)
(Superseded to 5049100YP)

$119.99

$

Usually ships in 2-12 days

0
