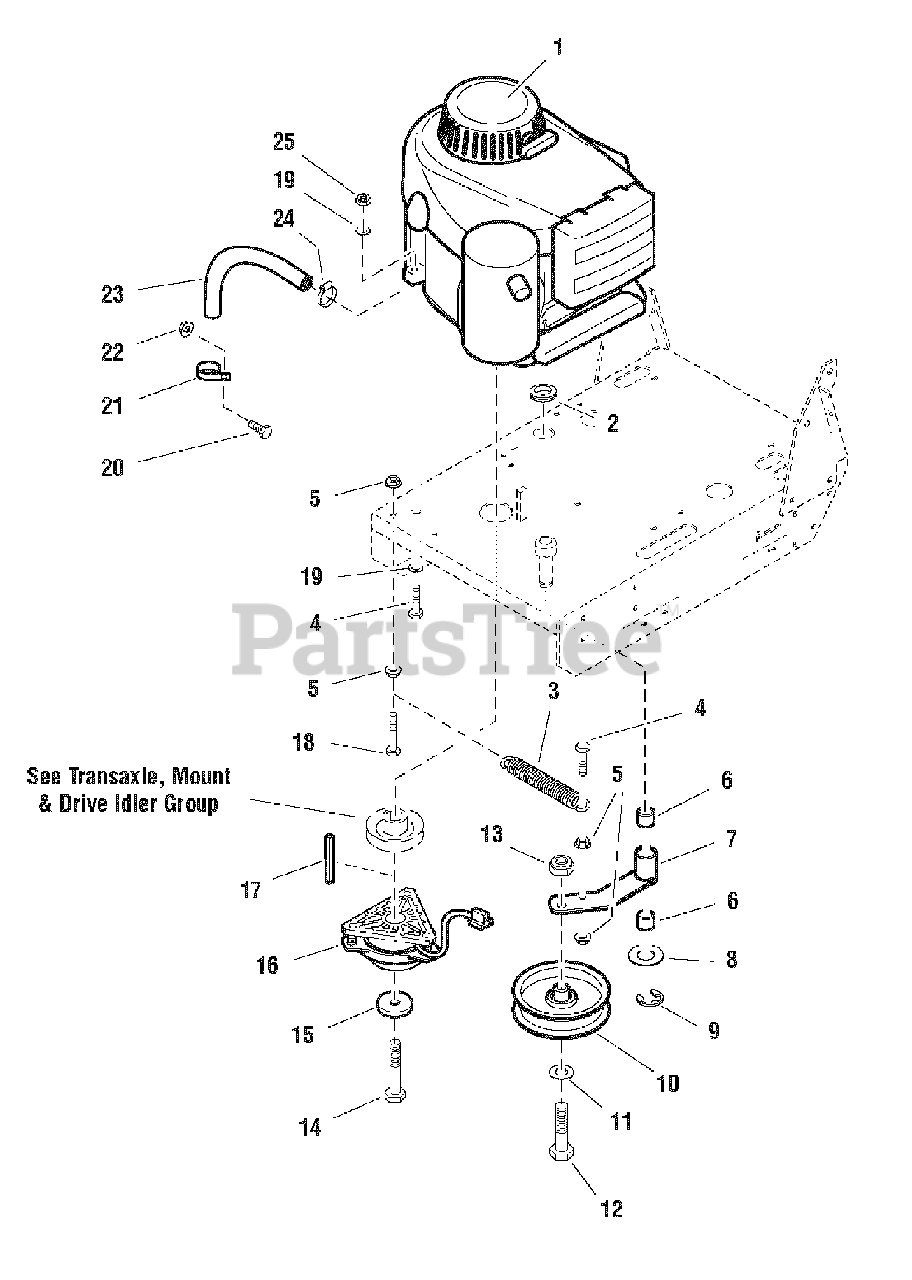

SFH 13320KW (5091002) - Snapper 32" Walk-Behind Mower, 13hp Engine, PTO & Deck Drive Idler Group Parts Diagram

32" Walk-Behind Mower, 13hp

Engine, PTO & Deck Drive Idler Group Parts Diagram

  • Title

1

ENGINE, 13 HP Kawasaki, Model FH381V

Note: 5022907

$

$

Not available

Snapper 5021178X3

FUEL FILTER
(Superseded to 5021178X3FS)

$12.99

$

Usually ships in 2-12 days

0

Snapper 5021334X1

OIL FILTER (49065-2078)
(Superseded to 5213341SM)

$

$

Not available

* PRE-CLEANER (11013-7016)

$

$

Not available

* AIR FILTER (11013-7017)

$

$

Not available

* MUFFLER (49070-7002)

$

$

Not available

* EXHAUST MANIFOLD (18088-7001)

$

$

Not available

* MANIFOLD HEAT SHIELD (13271-7022)

$

$

Not available

* EXHAUST MANIFOLD GASKET (11060-7021)

$

$

Not available

* RECOIL ASSEMBLY, Complete (49088-7001)

$

$

Not available

2

Snapper 5021379

GROMMET
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

3

Snapper 5021103

SPRING, Extension
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

4

Snapper 5025011X12

CAPSCREW, Hex Head, 5/16-18 x 1-1/2
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 5025139

NUT, Hex Serrated Flange, 5/16-18
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

6

Snapper 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

7

Snapper 5047661D

DECK DRIVE IDLER ARM
(Superseded to 5047661DYP)

$28.99

$

Usually ships in 2-12 days

0

8

Snapper 5025160

WASHER, 3/4" SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, only 2 left!

0

9

Snapper 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 5021369

IDLER PULLEY
(Superseded to 5021369SM)

$73.99

$

Usually ships in 2-12 days

0

11

Snapper 7091587

WASHER, 1/2
(Superseded to 704123)

Note: Was 5025158

$4.49

$

In Stock, Qty 15

0

12

Snapper 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

13

Snapper 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

14

Snapper 5047632

CRANKSHAFT BOLT, 7/16 x 2-3/4
(Superseded to 5102865)

$5.49

$

In Stock, only 1 left!

0

15

Snapper 5042132

CLUTCH RETAINER
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

16

Snapper 1686880

ELECTRIC CLUTCH
(Superseded to 1687746YP)

Note: Was 1717664

$376.99

$

Usually ships in 2-12 days

0

17

Snapper 5050407X3

KEY, 1/4 Sq. x 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 5025011X18

CAPSCREW, Hex Head, 5/16-18 x 2-1/4
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

19

Snapper 7091098

WASHER, 5/16
(Superseded to 703302)

Note: Was 5025155

$4.49

$

In Stock, Qty 20+

0

20

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

21

Snapper 5023173

CLAMP
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 5025127

NUT, Hex Serrated Flange, 5/16-18
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 9

0

23

Snapper 5050857X10P5

HOSE, 10-1/2 (oil drain)

$

$

Not available

24

Snapper 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

25

Snapper 7091298

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

Note: Was 5025057

$3.99

$

In Stock, Qty 12

0
