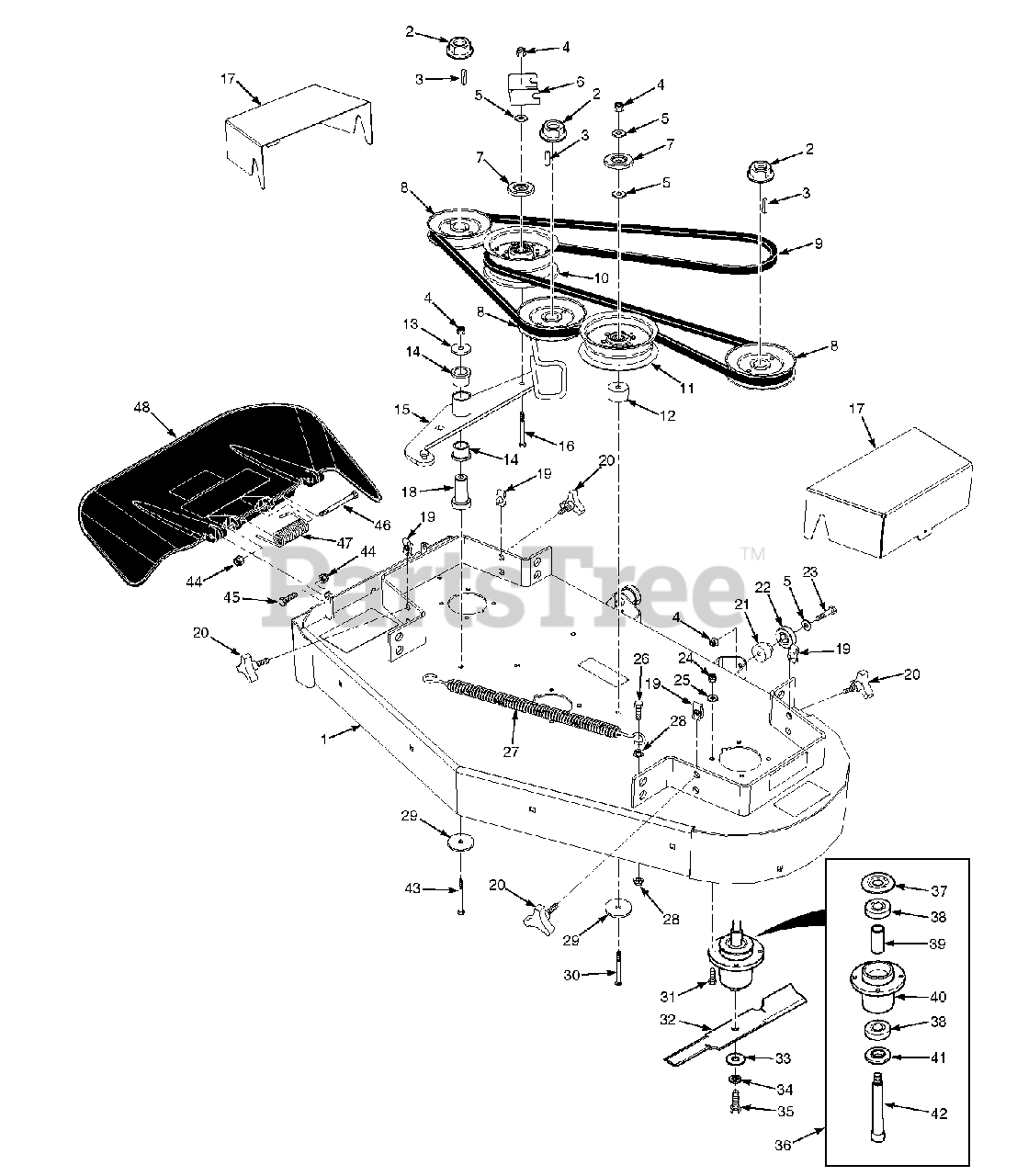

SFW48-16BV - Scag 48" Walk-Behind Mower, 16hp Vanguard (SN: F9200001 - F9299999) 48" Cutter Deck Parts Diagram

48" Walk-Behind Mower, 16hp Vanguard

48" Cutter Deck Parts Diagram

  • Title

1

Scag 462149

Cutter Deck Weldment w/Decals

$1282.99

$

Usually ships in 2-12 days

0

2

Scag 04112-06

Nut, 3/4-16 Spiral Lock

$11.99

$

In Stock, only 3 left!

0

3

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 3 left!

0

4

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

6

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

0

7

Scag 424367

Dust Shield

$2.49

$

In Stock, Qty 8

0

8

Scag 483323

Pulley, 5.13" Dia.

$33.99

$

In Stock, only 1 left!

0

9

Scag 483012

Belt, Cutter Deck

$68.99

$

Usually ships in 2-12 days

0

10

Scag 483851

Pulley, 5" Idler
(Superseded to 483210)

$56.99

$

In Stock, Qty 19

0

11

Scag 483422

Pulley, 5" Idler

$20.99

$

In Stock, Qty 16

0

12

Scag 43711

Spacer, Idler Pulley

$6.99

$

Usually ships in 2-12 days

0

13

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1/2"

$1.99

$

In Stock, Qty 20+

0

14

Scag 483453-03

Bearing

$7.99

$

In Stock, only 2 left!

0

15

Scag 462191

Idler Arm Assembly

Note: (incl. #14)

$141.99

$

Usually ships in 2-12 days

0

16

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 20+

0

17

Scag 425117

Belt Cover, SFW 48

$114.99

$

Usually ships in 2-12 days

0

18

Scag 43708

Pivot, Idler

$32.99

$

In Stock, only 1 left!

0

19

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

20

Scag 481625-01

Knob, w/Stud

$2.99

$

In Stock, Qty 20+

0

21

Scag 43703

Spacer, Bearing

$11.99

$

Usually ships in 2-12 days

0

22

Scag 483379

Bearing

$5.99

$

Usually ships in 2-12 days

0

23

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04021-22

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

25

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

26

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Gr.8

$0.99

$

In Stock, Qty 20+

0

27

Scag 483375

Spring, Deck Idler

$87.99

$

Usually ships in 2-12 days

0

28

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

29

Scag 04041-38

Flatwasher, 3/8-.406 x 2-1/4 x .187

$3.49

$

In Stock, Qty 10

0

30

Scag 04001-77

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 13

0

31

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2" Gr.8

$0.99

$

In Stock, Qty 12

0

32

Scag 481706

Cutter Blade, 16-1/2"

$21.99

$

In Stock, Qty 20+

0

33

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

0

34

Scag 04030-07

Lockwasher, 1/2" Spring

$1.49

$

In Stock, Qty 20+

0

35

Scag 04001-121

Bolt, Hex Head 5/8-11 x 1-1/2"

$2.49

$

In Stock, Qty 20+

0

36

Scag 461950

Spindle Assembly

$140.99

$

In Stock, only 2 left!

0

37

Scag 483304

Debris Shield

$6.49

$

In Stock, only 4 left!

0

38

Scag 483303

Bearing

$13.99

$

In Stock, only 3 left!

0

39

Scag 43693

Spacer, Bearing

$22.99

$

Usually ships in 2-12 days

0

40

Scag 462014

Spindle Housing Assembly

Note: (incl. #38 & #39)

$132.99

$

In Stock, only 1 left!

0

41

Scag 43694

Protector, Bearing

$28.99

$

In Stock, only 1 left!

0

42

Scag 43695

Shaft, Spindle

$50.99

$

In Stock, only 1 left!

0

43

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 20+

0

44

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

45

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

46

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 13

0

47

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 6

0

48

Scag 462031

Discharge Chute Assembly

$67.99

$

In Stock, only 1 left!

0
