SFZ36-18FS - Scag Freedom Z 36" Zero-Turn Mower, 18hp Kawasaki (SN: F3100001 - F3199999) SFZ36 Fuel System - EPA Phase 2 Parts Diagram

Freedom Z 36" Zero-Turn Mower, 18hp Kawasaki

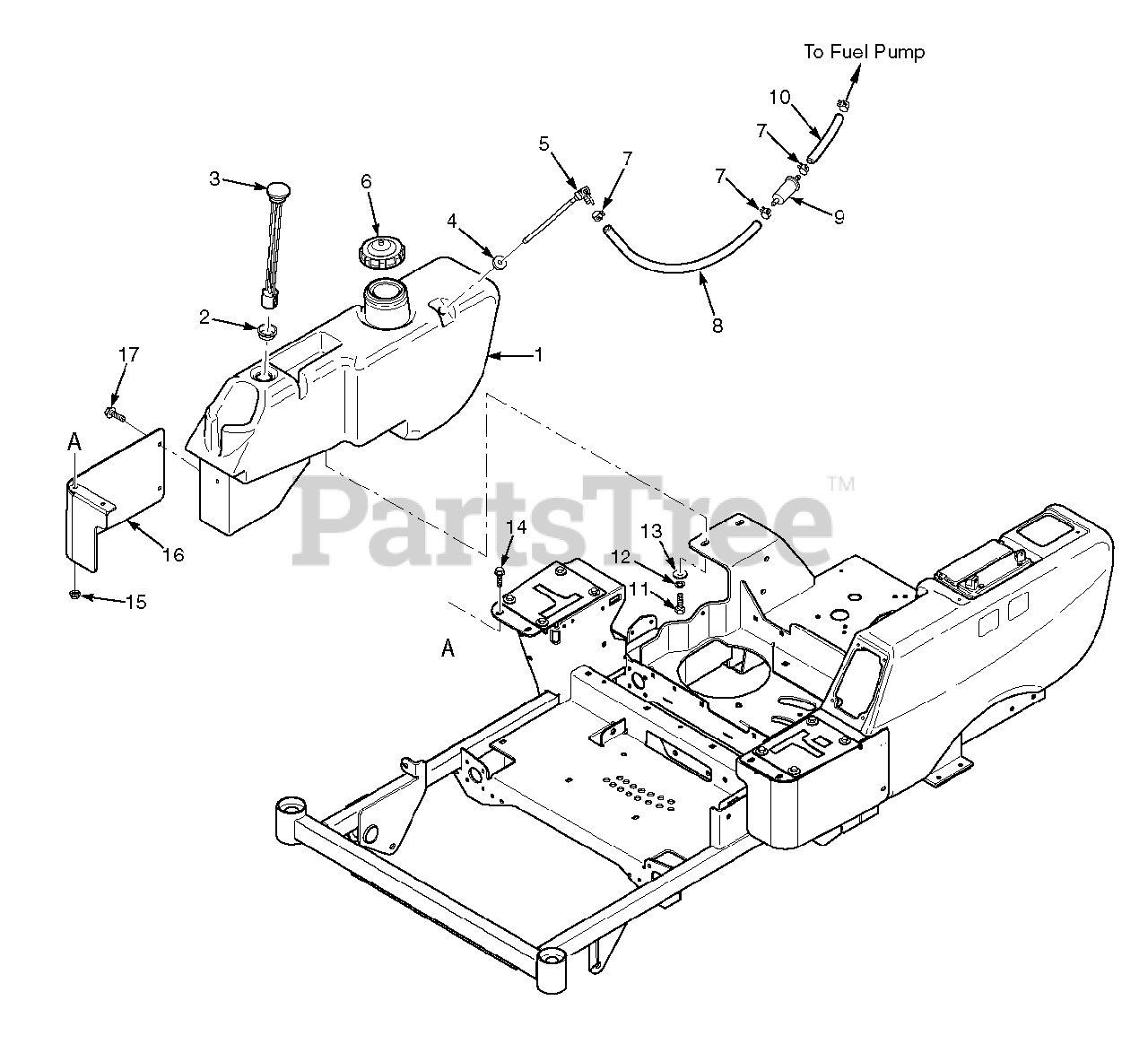

SFZ36 Fuel System - EPA Phase 2 Parts Diagram

  • Title

1

Scag 462099

Fuel Tanks Assembly
(Superseded to 462318)

$369.99

$

Usually ships in 2-12 days

0

2

Scag 483536

Grommet

$5.99

$

In Stock, only 1 left!

0

3

Scag 483523

Fuel Gauge Assembly

$67.99

$

In Stock, only 1 left!

0

4

Scag 482571

Bushing, 0.56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

5

Scag 483557

Fuel Tube Assembly

$51.99

$

Usually ships in 2-12 days

0

6

Scag 483792

Fuel Cap

$27.99

$

In Stock, Qty 8

0

7

Scag 48059-01

Clamp, Fuel Hose 1/4" ID

$0.99

$

In Stock, Qty 20+

0

8

Scag 483617

Fuel Hose, 1/4" ID Non-Perm

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter

Note: Available through engine manufacturer only.

$

$

Not available

10

Fuel Hose

Note: Available through engine manufacturer only.

$

$

Not available

11

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04030-03

Lockwasher, 5/16- Spring

$0.99

$

In Stock, Qty 20+

0

13

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 9

0

14

Scag 04017-05

Bolt, Hex Head 1/4-20 x 3/4" Serrated Flange

$0.99

$

In Stock, Qty 20+

0

15

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

16

Scag 424822

Control Cover, RH

$62.99

$

Usually ships in 2-12 days

0

17

Scag 04017-04

Bolt, Hex Head 1/4-20 x 1/2" Serrated Flange

$0.99

$

In Stock, Qty 20+

0
