SFZ36-18FS - Scag Freedom Z 36" Zero-Turn Mower, 18hp Kawasaki (SN: F3100001 - F3199999) SFZ36 Fuel System - EPA Phase 3 Parts Diagram

Freedom Z 36" Zero-Turn Mower, 18hp Kawasaki

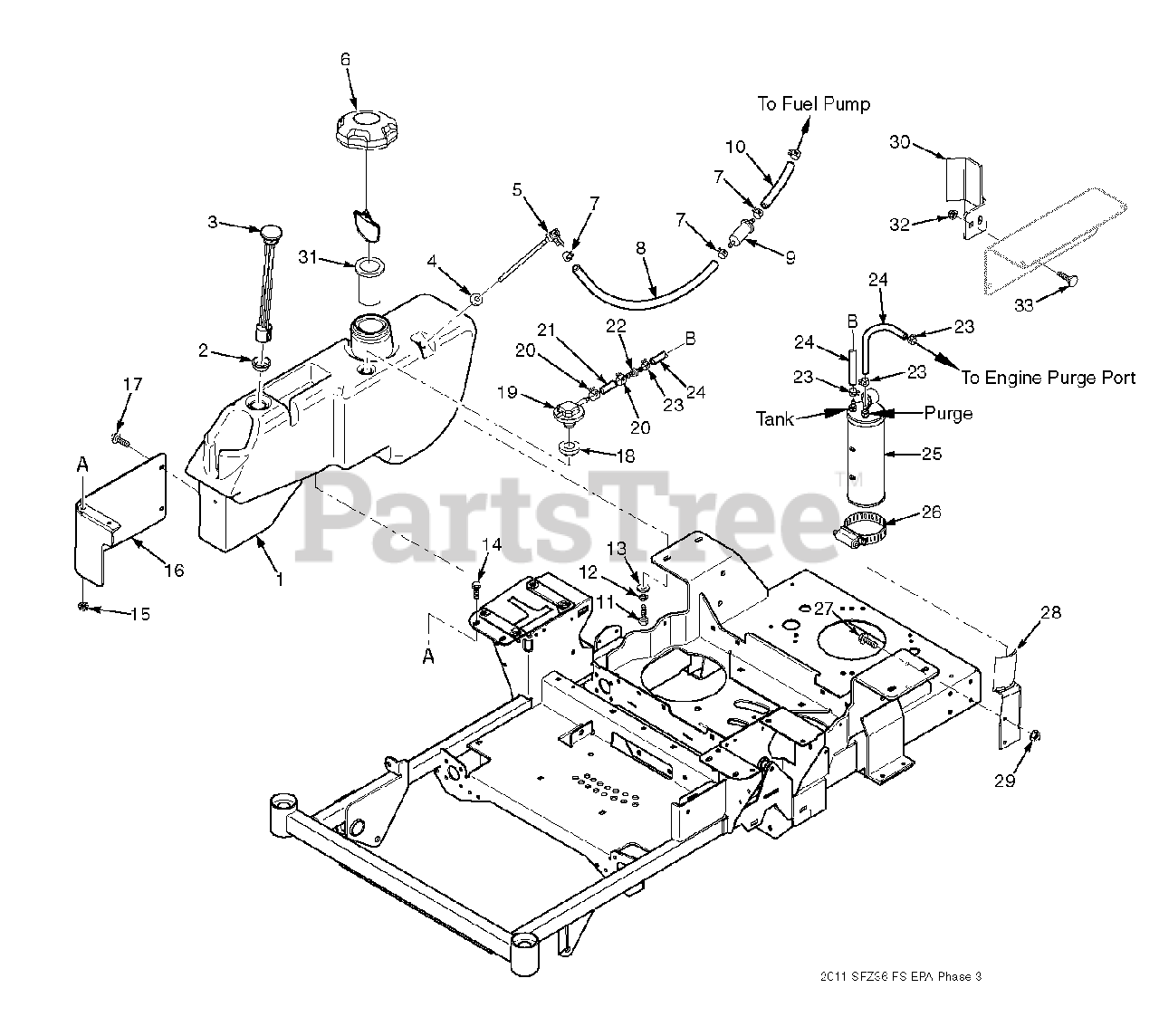

SFZ36 Fuel System - EPA Phase 3 Parts Diagram

  • Title

1

Scag 462291

Fuel Tanks Assembly

$398.99

$

Usually ships in 2-12 days

0

2

Scag 483536

Grommet

$5.99

$

In Stock, only 1 left!

0

3

Scag 484243

Fuel Gauge Assembly

$82.99

$

Usually ships in 2-12 days

0

4

Scag 482571

Bushing, 0.56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

5

Scag 483557

Fuel Tube Assembly

$51.99

$

Usually ships in 2-12 days

0

6

Scag 484286

Fuel Cap, Tethered

$54.99

$

In Stock, only 3 left!

0

7

Scag 48059-01

Clamp, Fuel Hose 1/4" ID

$0.99

$

In Stock, Qty 20+

0

8

Scag 483617

Fuel Hose, 1/4" ID Non-Perm

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter

Note: Available through engine manufacturer only.

$

$

Not available

10

Fuel Hose

Note: Available through engine manufacturer only.

$

$

Not available

11

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04030-03

Lockwasher, 5/16- Spring

$0.99

$

In Stock, Qty 20+

0

13

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 9

0

14

Scag 04017-05

Bolt, Hex Head 1/4-20 x 3/4" Serrated Flange

$0.99

$

In Stock, Qty 20+

0

15

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

16

Scag 424822

Control Cover, RH

$62.99

$

Usually ships in 2-12 days

0

17

Scag 04017-04

Bolt, Hex Head 1/4-20 x 1/2" Serrated Flange

$0.99

$

In Stock, Qty 20+

0

18

Scag 484285

Grommet, Viton

$11.99

$

Usually ships in 2-12 days

0

19

Scag 484333

Remote Vent

$14.99

$

In Stock, only 3 left!

0

20

Scag 48059-02

Clamp, Fuel Hose 7/32 ID

$0.99

$

In Stock, Qty 10

0

21

Scag 484347

Hose, 1/4" Vapor Recovery

Note: (Order by inch)

$0.99

$

In Stock, only 3 left!

0

22

Scag 484343-01

Mender, 1/4 x 3/16 w/0.02 Hole

$26.99

$

In Stock, only 1 left!

0

23

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0

24

Scag 484345

Hose, 3/16"

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0

25

Scag 484342

Carbon Canister

$103.99

$

In Stock, only 4 left!

0

26

Scag 48136-17

Clamp, Hose

$7.49

$

Usually ships in 2-12 days

0

27

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 13

0

28

Scag 452230

Bracket Weldment

$25.99

$

Usually ships in 2-12 days

0

29

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

30

Scag 452231

Guard Weldment, Canister

$44.99

$

Usually ships in 2-12 days

0

31

Scag 484279-01

Tube, Fuel Tank Insert

$4.49

$

Usually ships in 2-12 days

0

32

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 12

0

33

Scag 04003-14

Bolt, Carriage 5/16-18 x 1/2"

$0.99

$

In Stock, Qty 8

0
