SFZ48-19KA - Scag Freedom Z 48" Zero-Turn Mower, 19hp Kawasaki (SN: D1700001 - D1799999) Drive System Components Parts Diagram

Freedom Z 48" Zero-Turn Mower, 19hp Kawasaki

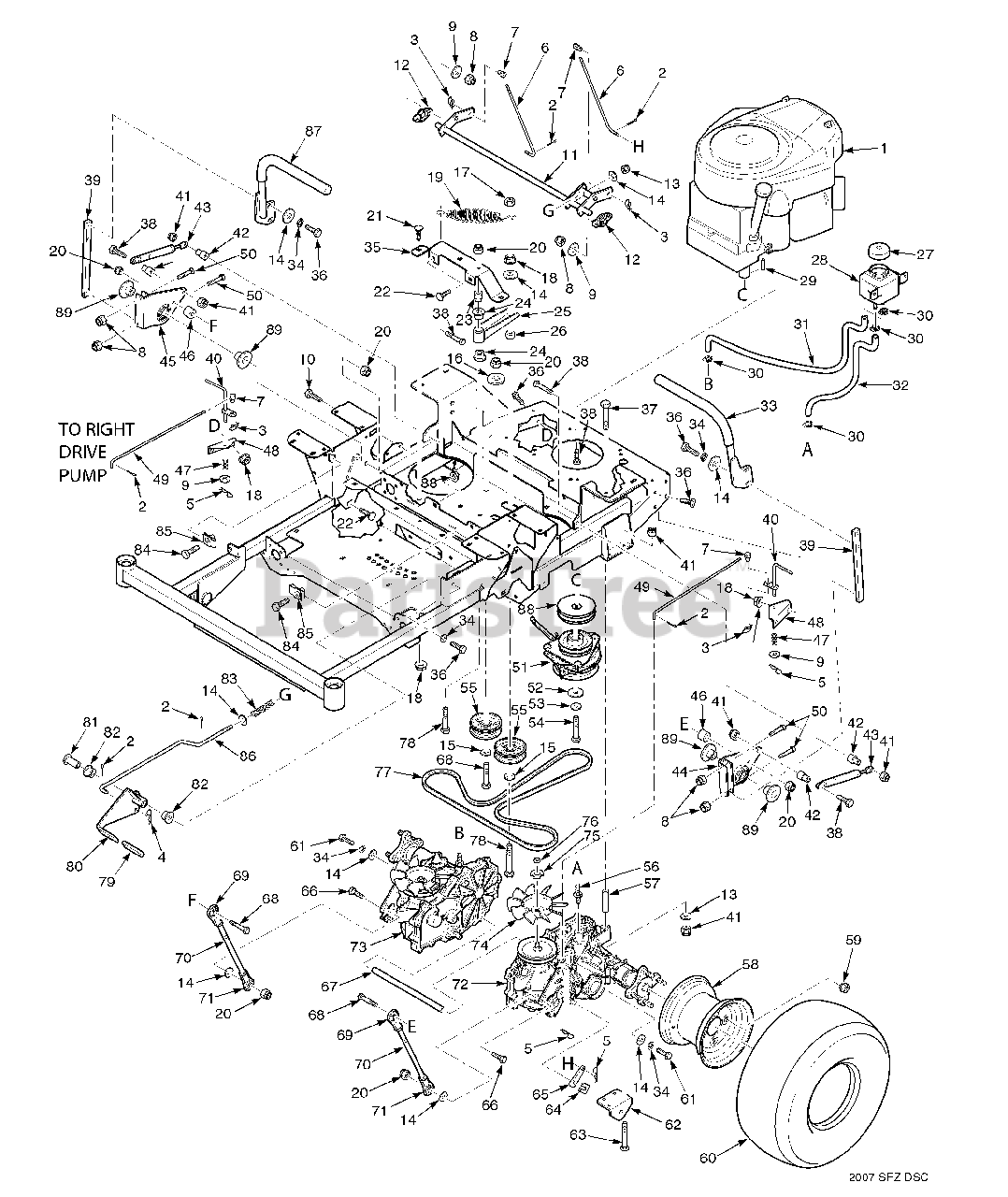

Drive System Components Parts Diagram

  • Title

2

Scag 04061-01

Cotter Pin, 3/32 x 1"

$0.99

$

In Stock, Qty 20+

0

3

Scag 04069-01

Pin, Rue Cotter 3/8" Dia.

$1.49

$

In Stock, Qty 10

0

4

Scag 04062-02

Hair Pin Cotter, .080 x 1.19"

$0.99

$

In Stock, Qty 20+

0

5

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

6

Scag 44165

Rod, Brake Adjustment

$8.49

$

In Stock, only 4 left!

0

7

Scag 43726

Joint, Swivel

$13.99

$

In Stock, only 1 left!

0

8

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

9

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, Qty 7

0

10

Scag 04017-07

Bolt, Serratted Flange 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 10

0

11

Scag 451884

Weldment, Brake Lever

$75.99

$

Usually ships in 2-12 days

0

12

Scag 483504

Bearing

$17.99

$

Usually ships in 2-12 days

0

13

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 10

0

14

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

15

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

16

Scag 04041-11

Flatwasher, 3/8-.406 x 1.5 x 7 GA.

$1.99

$

In Stock, Qty 20+

0

17

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

19

Scag 483087

Spring, Transmission Idler

$56.99

$

In Stock, only 2 left!

0

20

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

21

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, only 3 left!

0

22

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 19

0

23

Scag 43715

Shaft Pivot, Idler Arm

$18.99

$

In Stock, Qty 10

0

24

Scag 483453-04

Bearing

$4.49

$

In Stock, Qty 20+

0

25

Scag 462004

Transmission Idler Arm Assy.
(Superseded to 462122)

$

$

Not available

26

Scag 43720

Spacer, Idler Pulley

$4.99

$

Usually ships in 2-12 days

0

27

Scag 483514

Cap

$23.99

$

Usually ships in 2-12 days

0

28

Scag 483438

Reservoir Assy.

$38.99

$

In Stock, only 1 left!

0

29

Scag 04063-31

Key, 1/4 x 1/4 x 1-3/4"

$1.49

$

In Stock, only 1 left!

0

30

Scag 48136-05

Clamp, .87" Max Dia.

$3.99

$

In Stock, only 2 left!

0

31

Scag 483431

Hose, RH Transmission

$27.99

$

Usually ships in 2-12 days

0

32

Scag 483432

Hose, LH Transmission

$27.99

$

Usually ships in 2-12 days

0

33

Scag 462001

Handle Bar Assy. w/Grip

$105.99

$

Usually ships in 2-12 days

0

Scag 482340

Grip

$7.99

$

In Stock, only 1 left!

0

34

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 20+

0

35

Scag 424476

Support, Idler Arm

$17.99

$

Usually ships in 2-12 days

0

36

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

37

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3"

$0.99

$

In Stock, only 3 left!

0

38

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 7

0

39

Scag 424498

Bar, Control Lever

$31.99

$

Usually ships in 2-12 days

0

40

Scag 451912

Dump Valve Lever

$14.99

$

Usually ships in 2-12 days

0

41

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

42

Scag 43602

Spacer, Pump Dampener

$3.49

$

In Stock, only 2 left!

0

43

Scag 482794

Dampener
(Superseded to 484193)

$74.99

$

In Stock, Qty 11

0

44

Scag 462019

Control Linkage, LH
(Superseded to 462127)

$76.99

$

Usually ships in 2-12 days

0

45

Scag 462020

Control Linkage, RH
(Superseded to 462128)

$90.99

$

Usually ships in 2-12 days

0

46

Scag 43674

Spacer

$2.49

$

Usually ships in 2-12 days

0

47

Scag 482070

Spring

$6.99

$

Usually ships in 2-12 days

0

48

Scag 424639

Bracket, Dump Mounting

$4.49

$

Usually ships in 2-12 days

0

49

Scag 44162

Rod, Brake Linkage

$8.99

$

Usually ships in 2-12 days

0

50

Scag 04001-04

Bolt, Hex Head 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 17

0

51

Scag 462012

Electric Clutch Assy.
(Superseded to 462610)

$316.99

$

In Stock, only 1 left!

0

52

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 10

0

53

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 15

0

54

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" Patch

$2.49

$

Usually ships in 2-12 days

0

55

Scag 483421

Pulley, 3-1/2" Dia.
(Superseded to 486045K)

$22.99

$

In Stock, Qty 20+

0

56

Scag 482800-03

Fitting, Transmission

$17.99

$

Usually ships in 2-12 days

0

57

Scag 43700

Spacer, Axle

$7.99

$

Usually ships in 2-12 days

0

58

Scag 481868

Rim w/Valve Stem

$189.99

$

Usually ships in 2-12 days

0

59

Scag 04028-02

Wheel Nut, 1/2-20

$1.99

$

In Stock, Qty 20+

0

60

Scag 483390

Wheel Assy.

$243.99

$

In Stock, only 1 left!

0

Scag 483389

Tire, 20 x 10-8 2-Ply

$192.99

$

Usually ships in 2-12 days

0

61

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

62

Scag 424489

Bracket, Pusharm Link

$11.99

$

Usually ships in 2-12 days

0

63

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3"

$0.99

$

In Stock, only 3 left!

0

64

Scag HG51190

Clip, Brake Lever

$

$

Currently unavailable

65

Scag HG52639

Lever, Brake

$

$

Currently unavailable

66

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 15

0

67

Scag 43701

Spacer, Axles

$26.99

$

Usually ships in 2-12 days

0

68

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 13

0

69

Scag 483339

Rod End, 3/8-24 UNF RH

$20.99

$

Usually ships in 2-12 days

0

Scag 04020-25

Nut, Jam 3/8-24 UNF RH

$0.99

$

In Stock, Qty 5

0

70

Scag 483337

Linkage, Pump

$53.99

$

Usually ships in 2-12 days

0

71

Scag 483340

Rod End, 3/8-24 UNF LH

$20.99

$

Usually ships in 2-12 days

0

Scag 04020-26

Nut, Jam 3/8-24 UNF LH

$1.99

$

In Stock, Qty 7

0

72

Scag 483527

Transaxle Assy, LH
(Superseded to 484449)

Note: (ZL-KCEF-3LKG-1EXX)

$1786.99

$

Usually ships in 2-12 days

0

Scag 483348

Transaxle Assy, LH
(Superseded to 462139)

Note: (ZJ-KCEE-1B7C-1EXX) Used on machines with a serial number in the following range only. D1500001 to D1500047.

$1189.99

$

Usually ships in 2-12 days

0

73

Scag 483528

Transaxle Assy, RH
(Superseded to 484450)

Note: (ZL-GCEF-3LKF-1EXX)

$1782.99

$

Usually ships in 2-12 days

0

Scag 483347

Transaxle Assy, RH
(Superseded to 462139)

Note: (ZJ-GCEE-1F7B-1EXX) Used on machines with a serial number in the following range only. D1500001 to D1500047.

$1189.99

$

Usually ships in 2-12 days

0

74

Scag HG51862

Fan
(Superseded to HG72125)

$70.99

$

In Stock, only 1 left!

0

75

Scag HG51523

Fan Washer

$

$

Currently unavailable

76

Scag HG44133

Fan Nut

$

$

Currently unavailable

77

Scag 483314

Belt, Transmission Drive

$47.99

$

In Stock, Qty 6

0

Scag 483463

Belt, Transmission Drive

Note: Used on machines with a serial number in the following range only. D1500001 to D1500047.

$65.99

$

Usually ships in 2-12 days

0

78

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 20+

0

79

Scag 482102

Grip, Brake Handle

$3.99

$

In Stock, only 2 left!

0

80

Scag 462010

Brake Handle Assy.

$64.99

$

Usually ships in 2-12 days

0

81

Scag 43722

Spacer, Brake Handle

$20.99

$

Usually ships in 2-12 days

0

82

Scag 483453-05

Bearing

$2.49

$

Usually ships in 2-12 days

0

83

Scag 483538

Spring, Brake

$13.99

$

Usually ships in 2-12 days

0

84

Scag 04107-01

Bolt, Hex Head 3/8-16 x 1-1/4 Special Lock
(Superseded to 04107-03)

$1.49

$

In Stock, Qty 6

0

85

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

86

Scag 44157

Rod, Brake Linkage

$22.99

$

Usually ships in 2-12 days

0

87

Scag 462000

Handle Bar w/Grip

$105.99

$

Usually ships in 2-12 days

0

Scag 482340

Grip

$7.99

$

In Stock, only 1 left!

0

88

Scag 483320

Pulley, 4-1/2" Dia. 1" Bore
(Superseded to 486010)

$28.99

$

Usually ships in 2-12 days

0

Scag 483464

Pulley, 4" Dia. 1" Bore

Note: Used on machines with a serial number in the following range only. D1500001 to D1500047.

$83.99

$

Usually ships in 2-12 days

0

89

Scag 43719

Spacer, Linkage

$1.49

$

Usually ships in 2-12 days

0
