SFZ48-19KA - Scag Freedom Z 48" Zero-Turn Mower, 19hp Kawasaki (SN: D1700001 - D1799999) Fuel And Electrical System Parts Diagram

Freedom Z 48" Zero-Turn Mower, 19hp Kawasaki

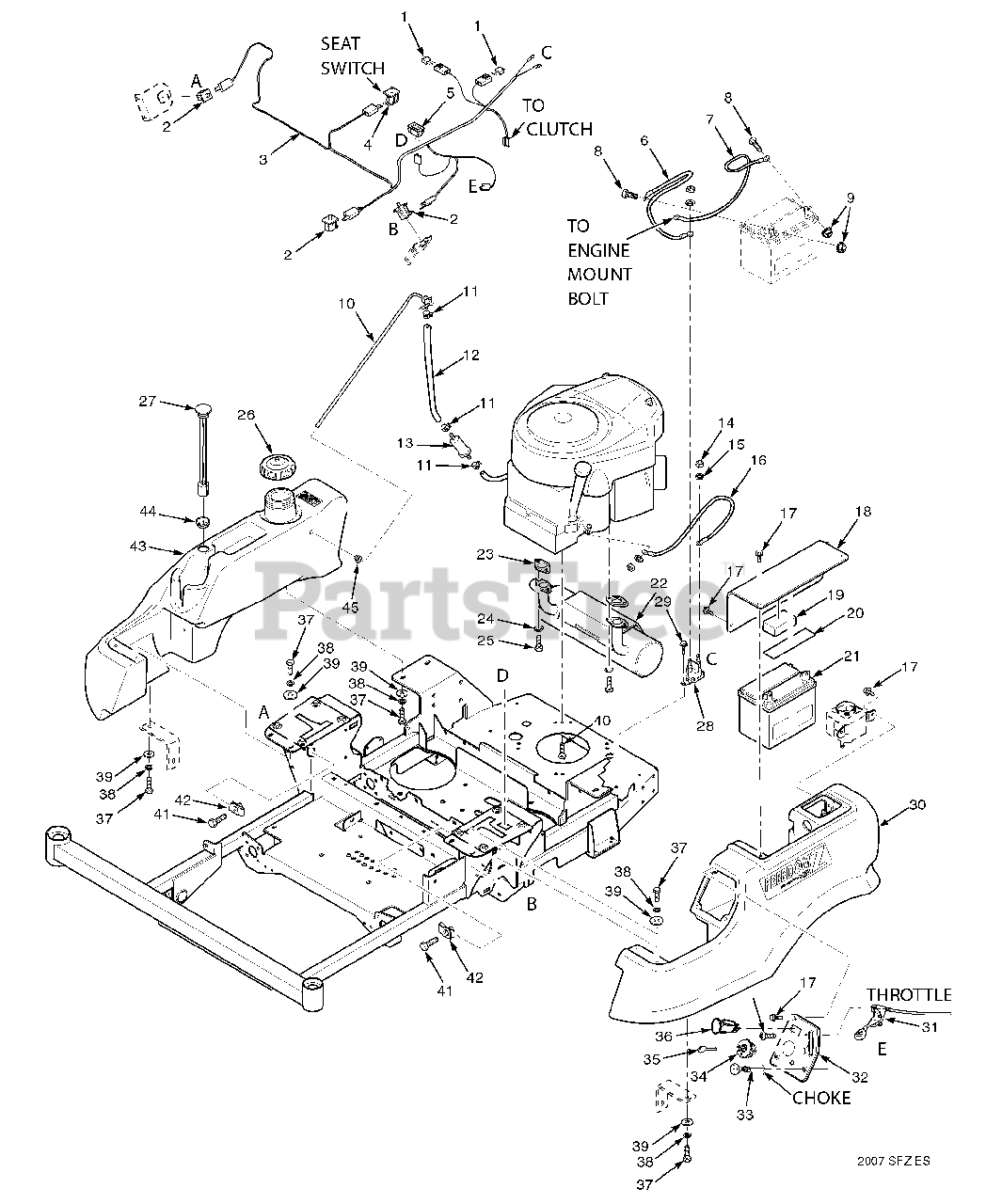

Fuel And Electrical System Parts Diagram

  • Title

1

Scag 48298

Fuse, 20amp

$3.99

$

Usually ships in 2-12 days

0

2

Scag 483473

Switch

$17.99

$

In Stock, only 2 left!

0

3

Scag 483558

Wire Harness, Main

$276.99

$

Usually ships in 2-12 days

0

4

Scag 483474

Switch, Seat

$32.99

$

In Stock, only 1 left!

0

5

Scag 483537

Hourmeter
(Superseded to 484565)

$63.99

$

In Stock, only 1 left!

0

6

Scag 48029-13

Battery Cable, Red 25"

$14.99

$

In Stock, only 2 left!

0

7

Scag 48029-11

Battery Cable, Black 27"

$14.99

$

In Stock, only 1 left!

0

8

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 10

0

9

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 9

0

10

Scag 483555

Fuel Tube Assy.

$57.99

$

Usually ships in 2-12 days

0

Scag 48568

Valve, Fuel Shutoff

Note: Used on machines with a serial number in the following range only. D1500001 to D1500047.

$27.99

$

In Stock, only 1 left!

0

11

Scag 48059-01

Clamp, Fuel Hose 1/4"ID

$0.99

$

In Stock, Qty 20+

0

12

Scag 48058

Fuel Hose
(Superseded to 483617)

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0

13

Fuel Filter

Note: Available through the individual engine manufacturer.

$

$

Not available

14

Nut, 5/16-24 UNF Jam

$

$

Not available

15

Lockwasher, 5/16"

$

$

Not available

16

Scag 48029-09

Battery Cable, Red 9"

$10.99

$

Usually ships in 2-12 days

0

17

Scag 04017-04

Bolt, Hex Head 1/4-20 x 1/2" Serrated Flange

$0.99

$

In Stock, Qty 20+

0

18

Scag 461996

Battery Cover

Note: (incl. items 19 & 20)

$41.99

$

In Stock, only 1 left!

0

19

Scag 483452

Pad, Battery Hold Down
(Superseded to 485506)

$3.99

$

In Stock, only 1 left!

0

20

Scag 483508

Rubber Pad

$18.99

$

In Stock, only 1 left!

0

21

Scag 483420

Battery

Note: (not avail. through Scag)

$

$

Currently unavailable

22

Scag 483381

Muffler, Briggs & Stratton

$290.99

$

Usually ships in 2-12 days

0

Scag 483383

Muffler, Kawasaki

$320.99

$

Usually ships in 2-12 days

0

23

Exhaust Gasket

Note: Available through the individual engine manufacturer.

$

$

Not available

24

Lockwasher

Note: Available through the individual engine manufacturer.

$

$

Not available

25

Bolt

Note: Available through the individual engine manufacturer.

$

$

Not available

26

Scag 482547

Cap, Fuel Tank
(Superseded to 483792)

$27.99

$

In Stock, Qty 8

0

27

Scag 483523

Fuel Gauge Assy.

$67.99

$

In Stock, only 1 left!

0

28

Scag 483278

Solenoid

$53.99

$

In Stock, only 2 left!

0

29

Scag 04011-13

Bolt, Self Tapping 1/4-20 x 3/4" Shakeproof
(Superseded to 04011-14)

$0.99

$

In Stock, Qty 13

0

30

Scag 483364

Tank, LH
(Superseded to 485418)

$214.99

$

Usually ships in 2-12 days

0

31

Scag 483434

Throttle Cable

$25.99

$

In Stock, only 3 left!

0

32

Scag 462036

Instrument Panel w/Decal
(Superseded to 462322)

$22.99

$

Usually ships in 2-12 days

0

33

Scag 483435

Choke Cable

$26.99

$

In Stock, only 3 left!

0

34

Scag 483472

Ignition Switch

$22.99

$

In Stock, Qty 5

0

35

Scag 48017-02

Key, Ignition

$4.49

$

In Stock, Qty 7

0

36

Scag 483162

PTO Switch
(Superseded to 483957)

$46.99

$

In Stock, Qty 20+

0

37

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

38

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

39

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 10

0

40

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 16

0

41

Scag 04107-03

Bolt, Hex Head 3/8-16 x 1-1/4" Special Lock

$1.49

$

In Stock, Qty 6

0

42

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

43

Scag 462009

Fuel Tank Assy, RH
(Superseded to 462756)

$558.99

$

Usually ships in 2-12 days

0

44

Scag 483536

Grommet

$5.99

$

In Stock, only 1 left!

0

45

Scag 482571

Bushing, .56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0
