SFZ48H-24KT - Scag Freedom Z 48" Zero-Turn Mower, 24hp Kohler (SN: R7600001 - R7699999) DRIVE SYSTEM COMPONENTS Parts Diagram

Freedom Z 48" Zero-Turn Mower, 24hp Kohler

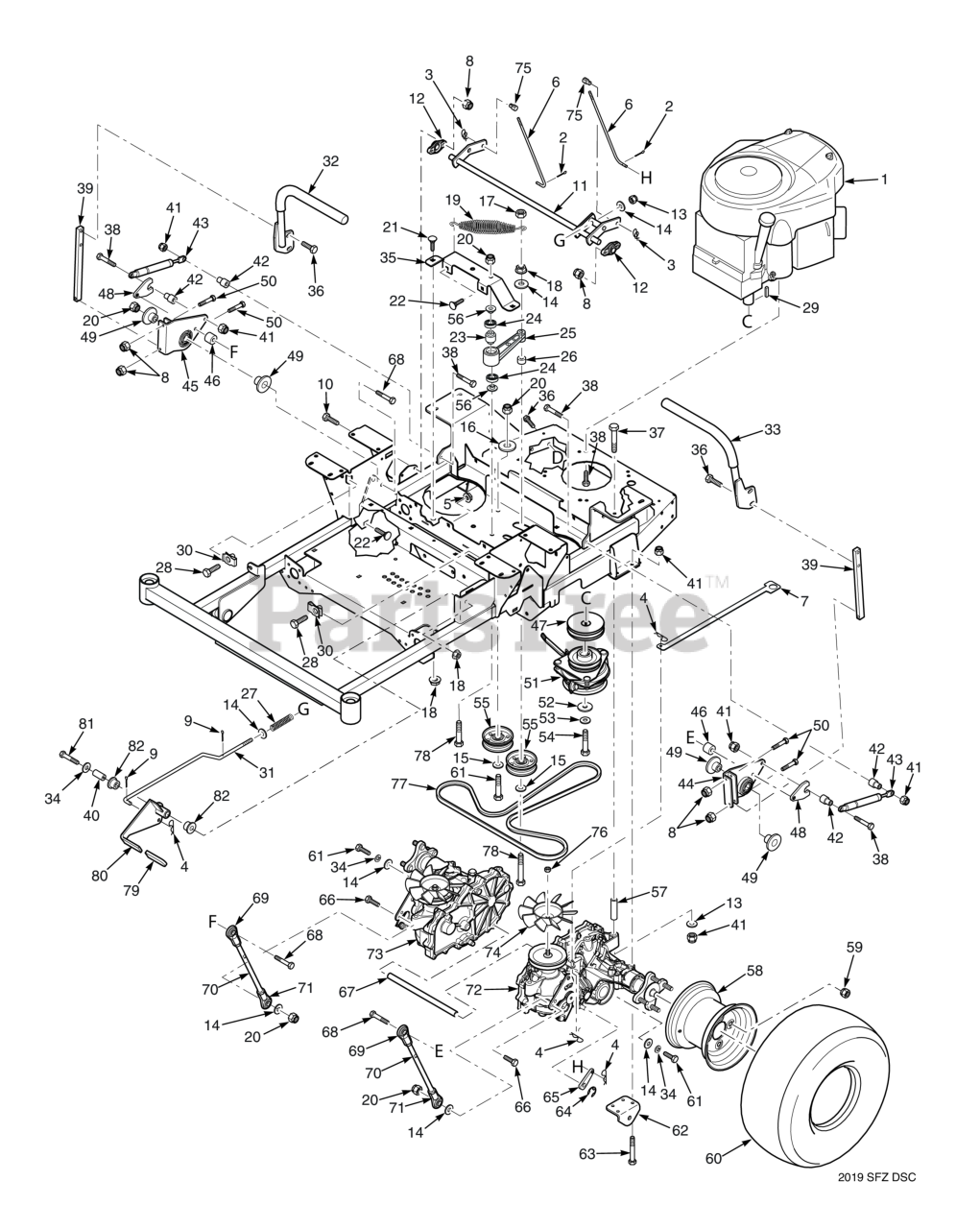

DRIVE SYSTEM COMPONENTS Parts Diagram

  • Title

1

Scag 485972

Engine, Kohler 24KT

Note: Available through engine manufacturer.

$

$

Currently unavailable

Scag 486021

Engine, Kohler - 26KT

Note: Used on a limited production build of model SFZ52H-26KT in the following serial number range. R7700001 - R7700289

$

$

Currently unavailable

Scag 486903

Engine, Kohler 26KT - 1" Crankshaft

Note: Available through engine manufacturer.

$

$

Currently unavailable

2

Scag 04061-01

COTTER PIN, 3/32 X 1"

$0.99

$

In Stock, Qty 20+

0

3

Scag 04069-01

Pin, Rue Cotter 3/8" Diameter

$1.49

$

In Stock, Qty 10

0

4

Scag 04062-02

HAIR PIN, .08 DIAMETER X 1-3/16"

$0.99

$

In Stock, Qty 20+

0

5

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 16

0

6

Scag 44165

Rod, Brake Adjustment

$8.49

$

In Stock, only 4 left!

0

7

Scag 426591

Lever, Dump Valve

$11.99

$

Usually ships in 2-12 days

0

8

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, only 3 left!

0

9

Scag 04062-01

COTTER PIN, HAIR - 0.94 X 1.62

$0.99

$

In Stock, Qty 20+

0

10

Scag 04017-06

CAP SCREW, 1/4-20 X 1" SERRATED FLANGE HEX

$0.99

$

Usually ships in 2-12 days

0

11

Scag 451884

Weldment, Brake Lever

$75.99

$

Usually ships in 2-12 days

0

12

Scag 483504

Bearing

$17.99

$

Usually ships in 2-12 days

0

13

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 9

0

14

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

15

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

16

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

17

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

19

Scag 483087

Spring, Transmission Idler

$56.99

$

In Stock, only 2 left!

0

20

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

21

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, only 3 left!

0

22

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 15

0

23

Scag 431073

Spacer, Bearing

$33.99

$

Usually ships in 2-12 days

0

24

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

0

25

Scag 463017

Trans. Idler Arm Assy. (Includes 24, 79)

$69.99

$

Usually ships in 2-12 days

0

26

Scag 43674

Spacer, Idler Pulley - SFZ52

$2.49

$

Usually ships in 2-12 days

0

27

Scag 483538

Spring, Brake

$13.99

$

Usually ships in 2-12 days

0

28

Scag 04107-01

Bolt, Hex Head 3/8-16 x 1-1/4" Special Lock
(Superseded to 04107-03)

$1.49

$

In Stock, Qty 6

0

29

Scag 04063-19

KEY, 1/4 X 1/4 X 3/4"

$0.99

$

In Stock, only 3 left!

0

30

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

31

Scag 44157

Rod, Brake Linkage

$22.99

$

Usually ships in 2-12 days

0

32

Scag 462434

Handle Bar Assembly RH, w/Grip

$84.99

$

Usually ships in 2-12 days

0

Scag 484376

Grip, Control Handle

$11.99

$

Usually ships in 2-12 days

0

33

Scag 462433

Handle Bar Assembly LH, w/Grip

$73.99

$

Usually ships in 2-12 days

0

Scag 484376

Grip, Control Handle

$11.99

$

Usually ships in 2-12 days

0

34

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

35

Scag 424476

Support, Idler Arm

$17.99

$

Usually ships in 2-12 days

0

36

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

0

37

Scag 04001-95

HEX HEAD BOLT, 5/16-18 X 5"

$2.49

$

Usually ships in 2-12 days

0

38

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 16

0

Scag 04011-29

Screw, 1/4-20 x .375"

$0.99

$

In Stock, Qty 6

0

39

Scag 424498

Bar, Control Lever

$31.99

$

Usually ships in 2-12 days

0

40

Scag 43969

Pivot, Brake Lever

$2.99

$

Usually ships in 2-12 days

0

41

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

42

Scag 43602

Spacer, Pump Dampener

$3.49

$

In Stock, only 2 left!

0

43

Scag 484193

Damper, Steering

$74.99

$

In Stock, Qty 11

0

44

Scag 462127

Control Link, LH

$76.99

$

Usually ships in 2-12 days

0

45

Scag 462128

Control Link, RH

$90.99

$

Usually ships in 2-12 days

0

46

Scag 43674

Spacer, Idler Pulley - SFZ52

$2.49

$

Usually ships in 2-12 days

0

47

Scag 486010

Pulley, 4-1/2" Dia. 1" Bore

$28.99

$

In Stock, only 1 left!

0

Scag 484071

Pulley, 4-1/2" Dia. 1.125" Bore

Note: Used on a limited production build of model SFZ52H-26KT in the following serial number range. R7700001 - R7700289

$51.99

$

Usually ships in 2-12 days

0

48

Scag 424687

Nut, Control Linkage

$5.99

$

Usually ships in 2-12 days

0

49

Scag 43719

Spacer, Linkage

$1.49

$

Usually ships in 2-12 days

0

50

Scag 04001-04

Bolt, Hex Head, 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 17

0

51

Scag 462715

Electric Clutch Assembly

$260.99

$

Usually ships in 2-12 days

0

Scag 462228

Electric Clutch Assembly - SFZ52 & SFZ61

Note: Used on a limited production build of model SFZ52H-26KT in the following serial number range. R7700001 - R7700289

$392.99

$

Usually ships in 2-12 days

0

Scag 04063-19

KEY, 1/4 X 1/4 X 3/4"

$0.99

$

In Stock, only 3 left!

0

Scag 04063-03

KEY, 1/4 X 1/4 X 2-1/2"

Note: Used on a limited production build of model SFZ52H-26KT in the following serial number range. R7700001 - R7700289

$2.49

$

In Stock, Qty 11

0

52

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 10

0

Scag 43832

Spacer, Crankshaft, SFZ-61 (repl. 04041-28)

Note: Used on a limited production build of model SFZ52H-26KT in the following serial number range. R7700001 - R7700289

$15.99

$

Usually ships in 2-12 days

0

53

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 14

0

54

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch (Kawasaki)

$2.49

$

Usually ships in 2-12 days

0

Scag 04102-08

Bolt, Hex Head 7/16-20 x 1-1/2" Patch SFZ-61

Note: Used on a limited production build of model SFZ52H-26KT in the following serial number range. R7700001 - R7700289

$2.49

$

In Stock, Qty 9

0

55

Scag 486045

Pulley, 3-1/2" Dia.

$21.99

$

In Stock, Qty 6

0

56

Scag 431049

Spacer, Controls

$1.99

$

Usually ships in 2-12 days

0

57

Scag 43700

Spacer, Axle - SFZ52

$7.99

$

Usually ships in 2-12 days

0

58

Scag 486316

Rim w/Valve Stem

$105.99

$

Usually ships in 2-12 days

0

59

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.99

$

In Stock, Qty 20+

0

60

Scag 486315

Wheel Assembly (INCL.58)

$270.99

$

In Stock, only 2 left!

0

Scag 485950

TIRE, 20 X 10.0-10

$162.99

$

Usually ships in 2-12 days

0

61

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 10

0

62

Scag 424489

Bracket, Push Arm Link

$11.99

$

Usually ships in 2-12 days

0

63

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3.00"

$0.99

$

In Stock, only 3 left!

0

64

Scag HG53019

Ring, Retaining External .375"

$

$

Currently unavailable

65

Scag HG52639

Lever, Brake (order through Hydro-Gear)

$

$

Currently unavailable

66

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 17

0

67

Scag 43701

Spacer, Axles

$26.99

$

In Stock, only 1 left!

0

68

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 13

0

69

Scag 483340

Rod End, 3/8-24 UNF LH

$20.99

$

Usually ships in 2-12 days

0

70

Scag 483337

Linkage, Pump

$53.99

$

Usually ships in 2-12 days

0

71

Scag 483339

Rod End, 3/8-24 UNF RH

$20.99

$

Usually ships in 2-12 days

0

72

Scag 486817

Transaxle Assy., LH (ZK-KCBC-SLKG-3NTX)

$1726.99

$

Usually ships in 2-12 days

0

73

Scag 486818

Transaxle Assy., RH (ZK-GCBC-SLKF-2NTX)

$1726.99

$

Usually ships in 2-12 days

0

74

Scag HG53823

Fan (order through Hydro-Gear)

$33.99

$

In Stock, only 1 left!

0

75

Scag 43726

Joint, Swivel

$13.99

$

Usually ships in 2-12 days

0

76

Scag HG44133

Fan Nut (order through Hydro-Gear)

$

$

Currently unavailable

77

Scag 483314

Belt, Transmission Drive - SFZ52

$47.99

$

In Stock, Qty 6

0

78

Scag 04001-62

Capscrew, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 20+

0

79

Scag 482102

Grip, Brake Handle

$3.99

$

In Stock, only 2 left!

0

80

Scag 462010

Brake Handle Assembly

$64.99

$

Usually ships in 2-12 days

0

81

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 10

0

82

Scag 483453-05

Bearing

$2.49

$

Usually ships in 2-12 days

0
