SG 13 A/CE (968999239) - Husqvarna Stump Grinder (2004-03) Upper Handle Bar Parts Diagram

Stump Grinder

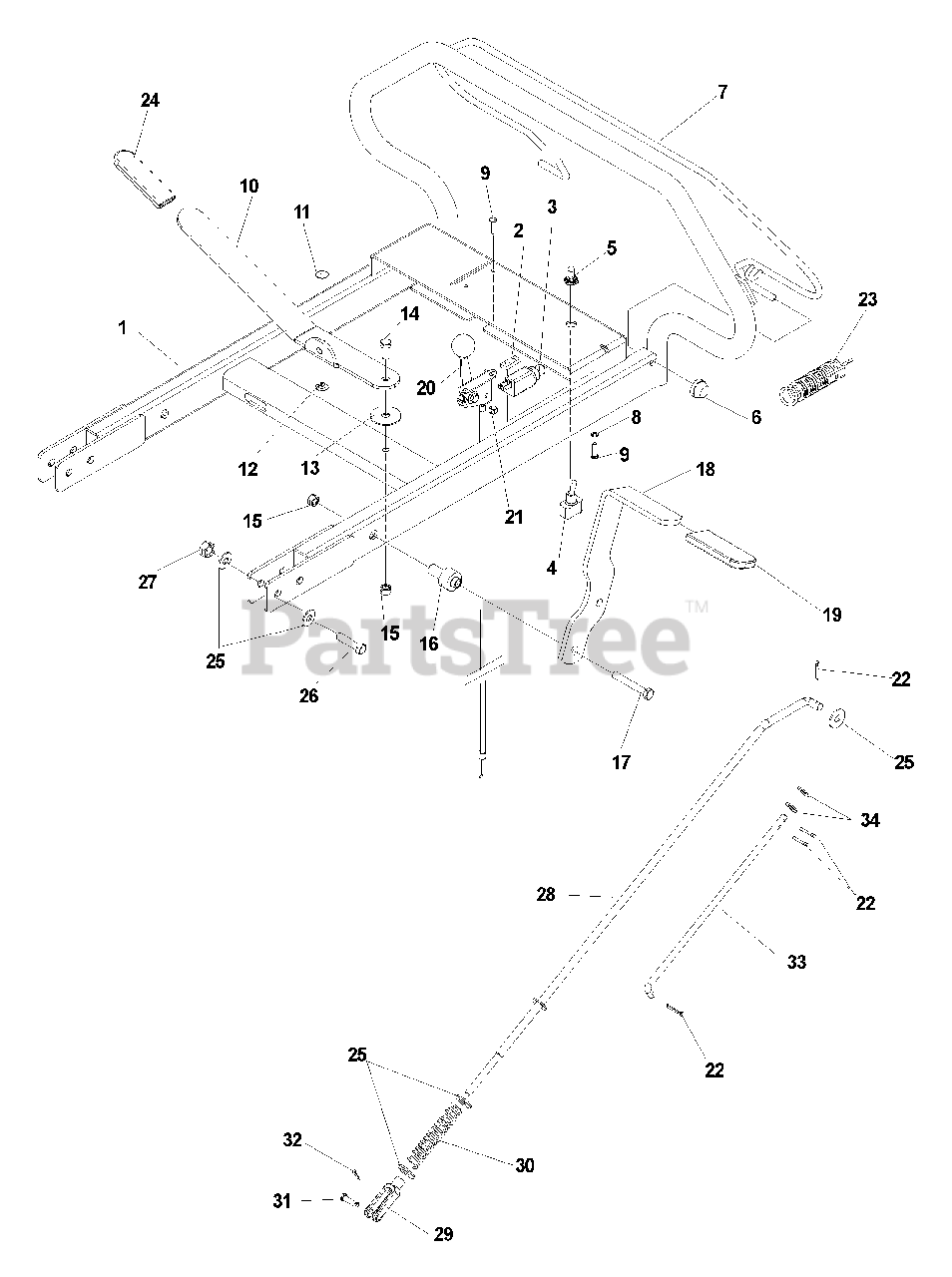

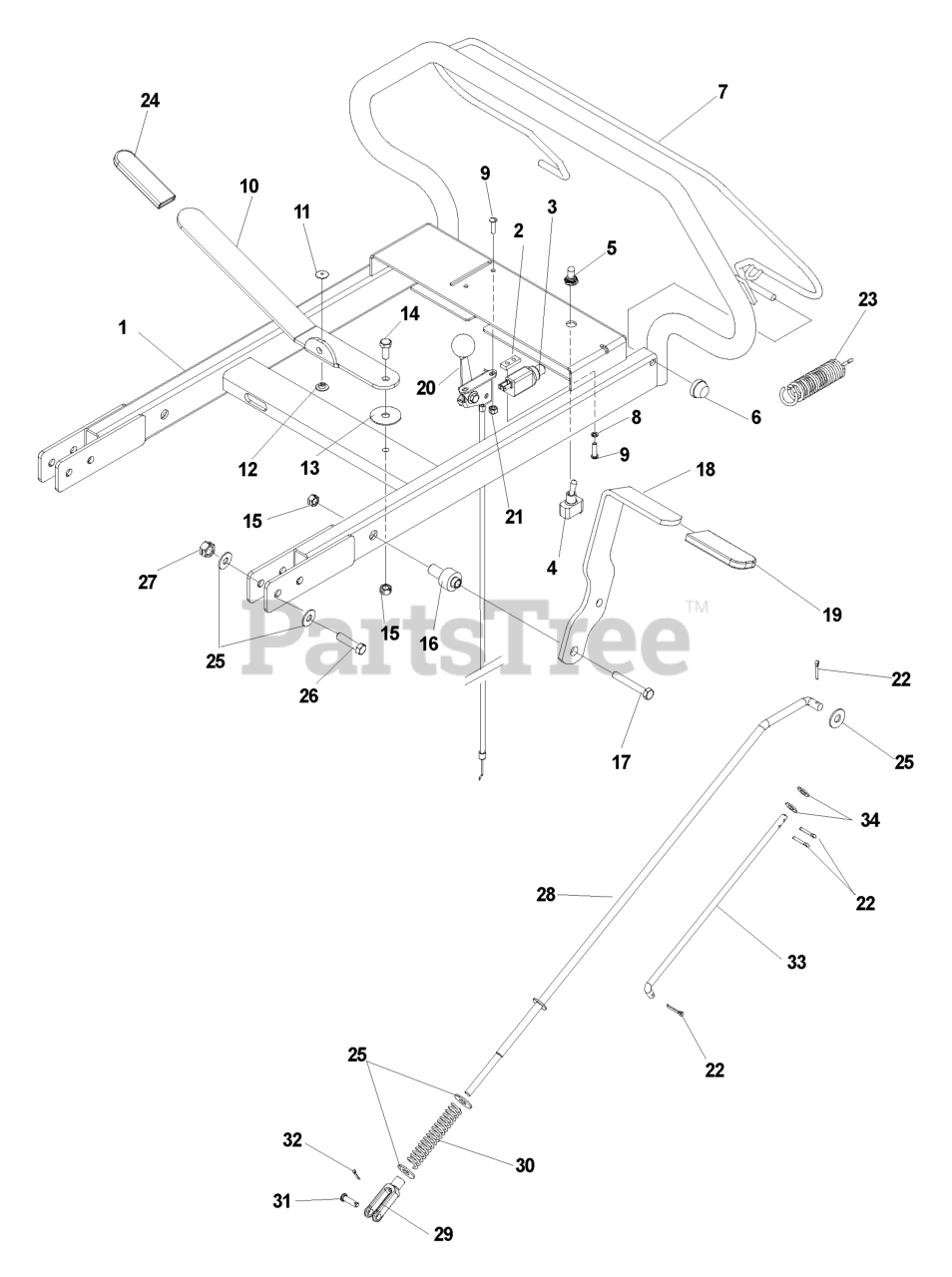

Upper Handle Bar Parts Diagram

  • Title

1

Husqvarna 539109951

HANDLE W/DECAL, UPPER LT BLUE

$

$

Not available

2

Husqvarna 539102678

TAPPED PLATE

$21.99

$

In Stock, Qty 8

0

3

Husqvarna 540020017

SWITCH, NC PLUNGER
(Superseded to 539020210)

$

$

Not available

4

Husqvarna 540020016

SWITCH, TOGGLE, STUMP GRINDER
(Superseded to 539020209)

$

$

Not available

5

Husqvarna 539020041

BOOT, TOGGLE SWITCH

$

$

Not available

6

Husqvarna 539108792

NUT 5/16 PUSH CAP

$

$

Not available

7

Husqvarna 540020201

BAIL ASSY
(Superseded to 539020201)

Note: (ALSO INCLUDES ITEM 6 & 23)

$

$

Not available

8

Husqvarna 539107360

LOCKWASHER
(Superseded to 539109552)

$

$

Not available

9

Husqvarna 539108535

SCR #10-24 X 3/4

$3.99

$

In Stock, Qty 5

0

10

Husqvarna 540108647

HANDLE, POSITION ADJ

$

$

Not available

11

Husqvarna 540109089

RIVET, SNAP-MALE HALF

$

$

Not available

12

Husqvarna 540109090

RIVET, SNAP-FEMALE HALF

$

$

Not available

13

Husqvarna 539102998

WASHER, FRICTION

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990184

NUT 5/16C CENTERLOCK
(Superseded to 596580701)

$3.99

$

In Stock, Qty 14

0

16

Husqvarna 540109279

BUSHING, STEP .34IDX1.82LG STL

$

$

Not available

17

Husqvarna 539976938

CAPSCREW

$4.99

$

In Stock, Qty 11

0

18

Husqvarna 540108995

HANDLE, WHEEL BRAKE

$

$

Not available

19

Husqvarna 540108996

GRIP, PARK BRAKE

$

$

Not available

20

Husqvarna 539020023

THROTTLE CABLE, STUMP GRINDER

$

$

Not available

21

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 540020035

SPRING, EXTENSION

$

$

Not available

24

Husqvarna 539110865

GRIP

$

$

Not available

25

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

27

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539108992

ROD ASM, PARK BRAKE

$62.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539976481

YOKE 5/16 ADJ CLEVIS

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 539100102

COMP. SPRING

$47.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539108975

CLEVIS PIN

$8.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, Qty 9

0

33

Husqvarna 539108648

ROD, POSITION ADJ

$

$

Not available

34

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0
