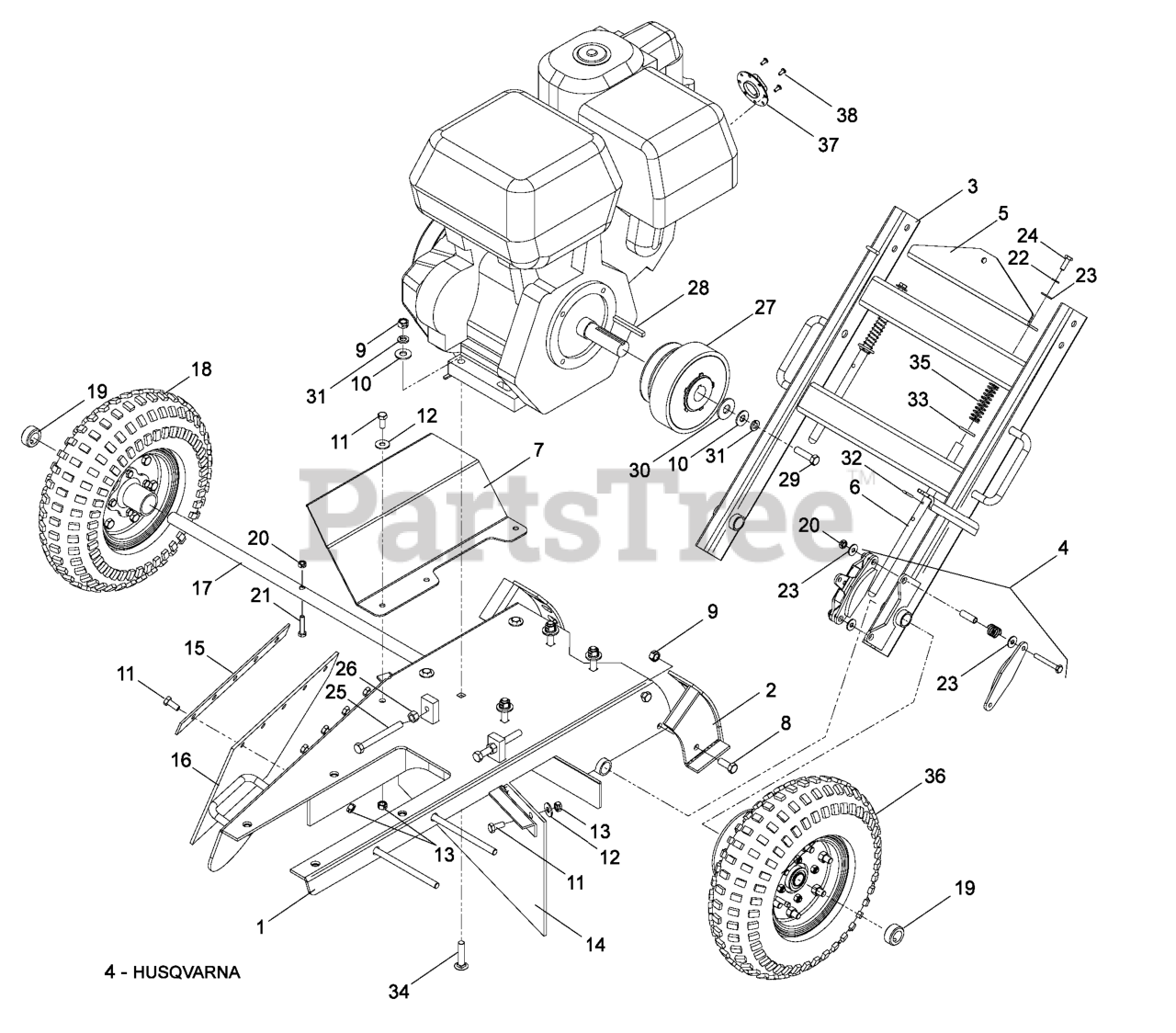

SG 13 B (966042601) - Husqvarna Stump Grinder (2009-02) Frame Parts Diagram

Stump Grinder

Frame Parts Diagram

  • Title

1

Husqvarna 539109316

DECK ASM, SG13A ORANGE

$

$

Not available

2

Husqvarna 540200178

BRACKET, ORG, HANDLE ADJUSTMT

$

$

Not available

3

Husqvarna 539109321

HANDLE WLD LWR HALF-GREY

$239.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539020024

BRAKE CALIPER, STUMP GRINDER

$

$

Not available

5

Husqvarna 539108649

BRACKET, HANDLE POSITIONING

$

$

Not available

6

Husqvarna 539020082

PIN, HANDLE ADJUST, S G

$

$

Not available

7

Husqvarna 539109283

FENDER, SG13A-ORG

$101.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 9

0

9

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539990184

NUT 5/16C CENTERLOCK
(Superseded to 596580701)

$3.99

$

In Stock, Qty 14

0

14

Husqvarna 539020094

DEFLECTOR, NEOPRENE, REAR

$

$

Not available

15

Husqvarna 539200781

STRAP, DEFLECTOR

$

$

Not available

16

Husqvarna 539020084

DEFLECTOR, NEOPRENE, RT SIDE

$

$

Not available

17

Husqvarna 539020085

AXLE, MACH., STUMP GRINDER

$53.99

$

Usually ships in 3-10 days

0

18

Husqvarna 540020025

WHEEL.12".STUMPGRINDER

$

$

Not available

19

Husqvarna 539020028

SET COLLAR, 3/4" BORE
(Superseded to 540020028)

$

$

Not available

20

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$3.49

$

In Stock, only 4 left!

0

21

Husqvarna 539100266

BOLT HEX 1/4 X 1-1/4

$

$

Not available

22

Husqvarna 539990052

LOCKWASHER 1/4"
(Superseded to 596564801)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990580

HCS 1/4C X 3/4 HCS
(Superseded to 596230901)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539109389

HCS 3/8-16X3 1/2 GR5

$5.99

$

In Stock, Qty 6

0

26

Husqvarna 539990130

NUT 3/8-16

$1.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539020020

CENTRIFUGAL CLUTCH/2-GRV

$

$

Not available

Husqvarna 505194401

CLUTCH
(Superseded to 539020020)

$

$

Not available

28

Husqvarna 539917033

KEY 1/4 SQ X 2-1/2

$

$

Not available

29

Husqvarna 539990164

HCS 3/8F X 1 1/2

$6.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.99

$

In Stock, Qty 16

0

31

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

33

Husqvarna 539990250

WASHER 1/2" FLAT
(Superseded to 595086801)

$3.99

$

In Stock, Qty 11

0

34

Husqvarna 539990923

RHSNB 3/8-16X1-3/4

$3.49

$

In Stock, Qty 11

0

35

Husqvarna 539020034

SPRING, COMPRESSION

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539020074

WHEEL.12".SNOW.HOG.STUMPGRINDE

$

$

Not available

37

Husqvarna 539020092

DEFLECTOR, EXHAUST

$

$

Not available

38

Husqvarna 539108495

SCREW - #8-32 X 3/8

$

$

Not available

Husqvarna 539109299

WIRE HARNESS, ENG

Note: NOT SHOWN

$

$

Not available

Husqvarna 539110762

KIT, SG SNAP RINGS AND BRGS

Note: NOT SHOWN

$

$

Not available

Husqvarna 539110763

KIT, CLUTCH SHOES & SPRINGS

Note: NOT SHOWN

$

$

Not available

Husqvarna 505246401

CLUTCH SHOE, ASM

Note: NOT SHOWN

$

$

Not available
