SG 13 B (966042601) - Husqvarna Stump Grinder (2009-02) Handle & Controls Parts Diagram

Stump Grinder

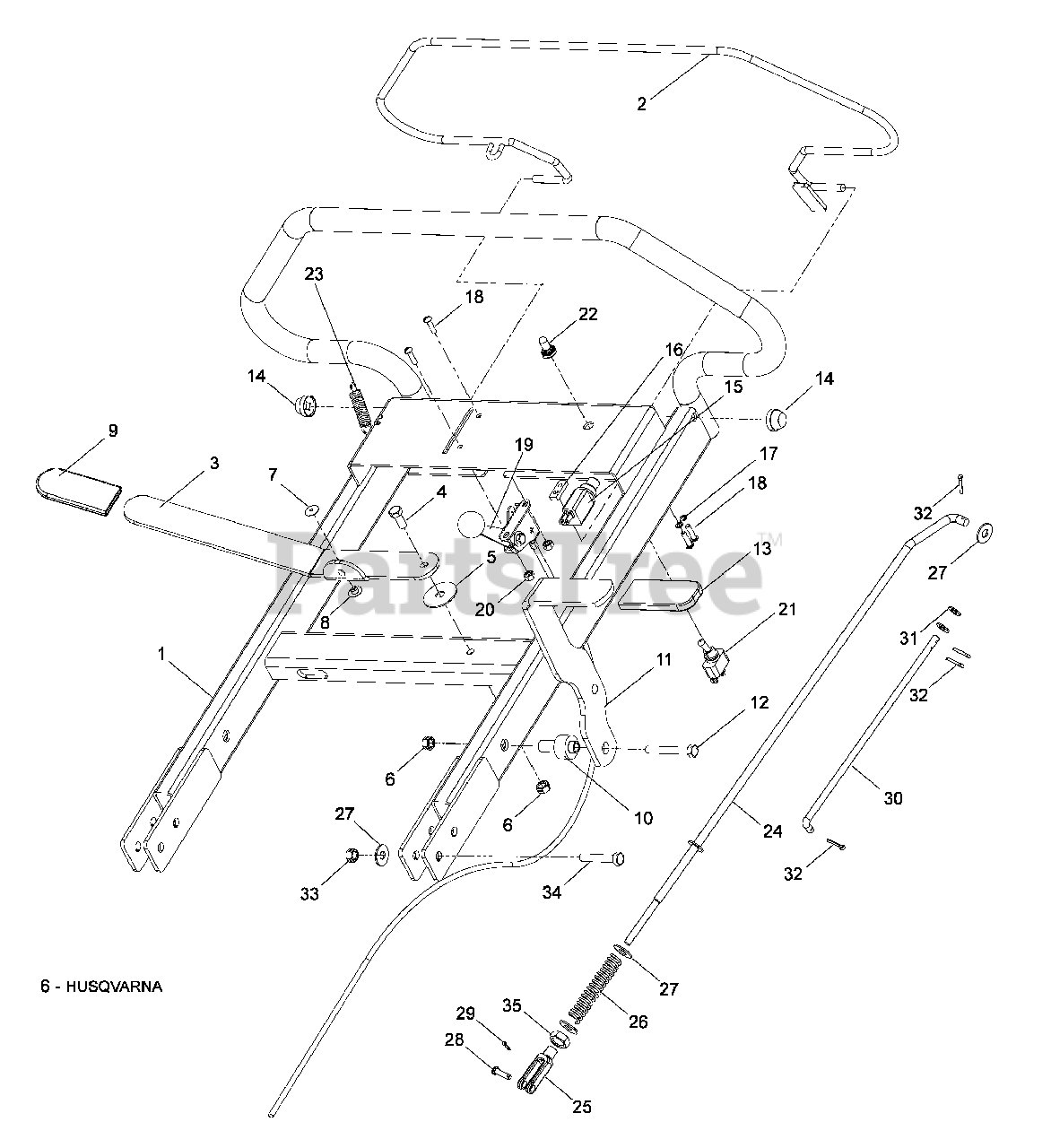

Handle & Controls Parts Diagram

  • Title

1

Husqvarna 539109319

HANDLE UPPER

$460.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539130818

BAIL

$

$

Not available

3

Husqvarna 539108647

HANDLE, POSITION ADJ

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539976934

HCS 5/16-18 x ¾
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539102998

WASHER, FRICTION

$8.99

$

In Stock, Qty 10

0

6

Husqvarna 539990184

NUT 5/16-18 CNTRLK

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539109089

RIVET, SNAP, MALE

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539109090

RIVET, SNAP, FEMALE

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539110865

GRIP

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539109279

BUSHING, STEP ¾ ID

$23.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539108995

HANDLE, WHEEL BRAKE

$34.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976938

HCS 5/16-18 x 2¼

$3.99

$

In Stock, Qty 5

0

13

Husqvarna 539108996

GRIP, PARK BRAKE
(Superseded to 540108996)

$

$

Not available

14

Husqvarna 539108792

NUT 5/16 PUSH CAP

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539020017

SWITCH, NC

$27.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102678

PLATE, TAPPED

$15.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539109552

LOCKWASHER #10

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539108535

SCREW #10-24 x ¾

$4.99

$

In Stock, Qty 7

0

19

Husqvarna 539020023

THROTTLE CNTRL w/ KNOB

$47.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976977

NUT #10-24 NYLOC

$

$

Not available

21

Husqvarna 539020016

SWITCH, TOGGLE
(Superseded to 539020209)

$121.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539020041

BOOT, TOGGLE SWITCH

$27.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539020035

SPRING
(Superseded to 540020035)

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539108992

ROD, PARK BRAKE

$60.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539976481

YOKE, 5/16

$12.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539100102

SPRING

$34.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539108975

PIN, CLEVIS ¼ x 7/8

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539976988

HAIRPIN COTTER

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539108648

ROD

$27.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990188

WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990365

PIN, COTTER 1/8 x ¾
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

33

Husqvarna 539990546

NUT 3/8-16 CNTRLK

$

$

Not available

34

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 12

0

35

Husqvarna 539110943

NUT 5/16-24 NYLOC

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539976856

WIRE TIE

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539109298

WIRE HARNESS

Note: NOT SHOWN

$109.99

$

Usually ships in 3-10 days

0
