SG 13 - Husqvarna Stump Grinder (2009-02) HANDLE & CONTROLS Parts Diagram

Stump Grinder

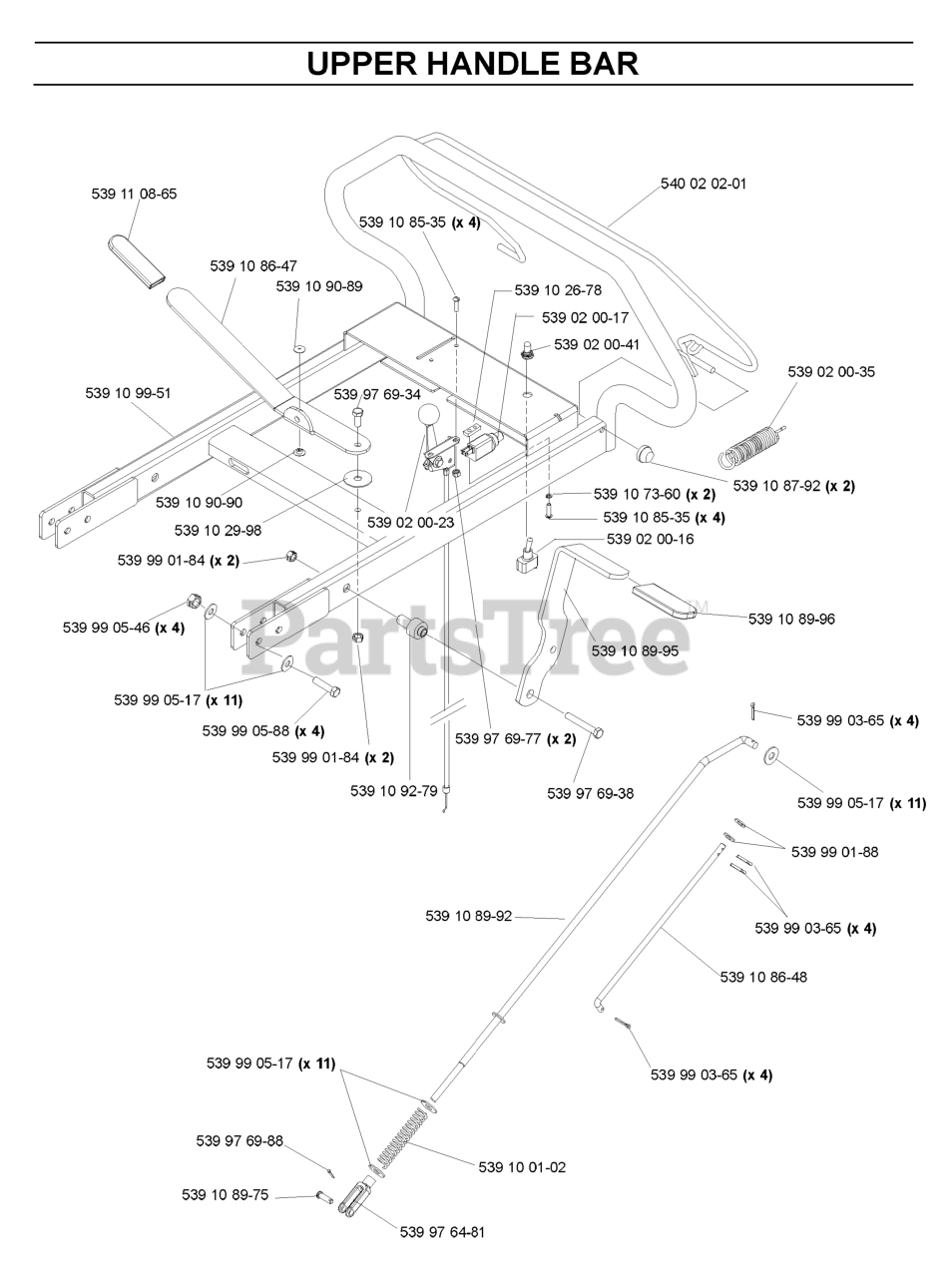

HANDLE & CONTROLS Parts Diagram

  • Title

539 10 89-92

Husqvarna 539108992

ROD ASM, PARK BRAKE

$62.99

$

Usually ships in 3-10 days

0

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

539 97 69-77

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

539 10 90-90

Husqvarna 539109090

RIVET.SNAP-FEMALE.HALF.NYLON.W

$

$

Not available

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

539 99 05-46

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.99

$

In Stock, Qty 20+

0

539 10 01-02

Husqvarna 539100102

COMP. SPRING

$47.99

$

Usually ships in 3-10 days

0

539 10 99-51

Husqvarna 539109951

HANDLE W/DECAL, UPPER LT BLUE

$

$

Not available

539 10 85-35

Husqvarna 539108535

SCR #10-24 X 3/4

$3.99

$

In Stock, Qty 5

0

539 99 01-84

Husqvarna 539990184

NUT 5/16C CENTERLOCK
(Superseded to 596580701)

$3.99

$

In Stock, Qty 14

0

539 02 00-23

Husqvarna 539020023

THROTTLE CABLE, STUMP GRINDER

$

$

Not available

540 02 02-01

Husqvarna 540020201

BAIL ASSY
(Superseded to 539020201)

$

$

Not available

539 97 69-38

Husqvarna 539976938

CAPSCREW

$4.99

$

In Stock, Qty 11

0

539 10 86-47

Husqvarna 539108647

HANDLE, POSITION ADJ

$

$

Not available

539 02 00-41

Husqvarna 539020041

BOOT, TOGGLE SWITCH

$

$

Not available

539 97 69-88

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, Qty 9

0

539 10 89-95

Husqvarna 539108995

HANDLE, WHEEL BRAKE

$56.99

$

Usually ships in 3-10 days

0

539 99 05-88

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

539 99 01-88

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

539 10 89-75

Husqvarna 539108975

CLEVIS PIN

$8.49

$

Usually ships in 3-10 days

0

539 10 73-60

Husqvarna 539107360

LOCKWASHER
(Superseded to 539109552)

$

$

Not available

539 11 08-65

Husqvarna 539110865

GRIP

$

$

Not available

539 10 86-48

Husqvarna 539108648

ROD, POSITION ADJ

$

$

Not available

539 02 00-35

Husqvarna 539020035

SPRING, EXTENSION
(Superseded to 540020035)

$

$

Not available

539 10 29-98

Husqvarna 539102998

WASHER, FRICTION

$4.99

$

In Stock, only 2 left!

0

539 10 26-78

Husqvarna 539102678

TAPPED PLATE

$21.99

$

In Stock, Qty 8

0

539 97 64-81

Husqvarna 539976481

YOKE 5/16 ADJ CLEVIS

$7.49

$

Usually ships in 3-10 days

0

539 02 00-16

Husqvarna 539020016

SWITCH, TOGGLE, STUMP GRINDER
(Superseded to 539020209)

$

$

Not available

539 97 69-34

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

539 02 00-17

Husqvarna 539020017

SWITCH, NC PLUNGER

$39.99

$

Usually ships in 3-10 days

0

539 10 87-92

Husqvarna 539108792

NUT 5/16 PUSH CAP

$

$

Not available

539 10 90-89

Husqvarna 539109089

RIVET.SNAP-MALE.HALF.NYLON.WHI

$

$

Not available

539 10 89-96

Husqvarna 539108996

GRIP, PARK BRAKE
(Superseded to 540108996)

$

$

Not available

539 10 92-79

Husqvarna 539109279

BUSHING, STEP .34IDX1.82LG STL

$

$

Not available
