SG 340 - Bear Cat Stump Grinder, 340cc Honda (SN: B00001 - C09759) Drive & Cutter Parts Diagram

Stump Grinder, 340cc Honda

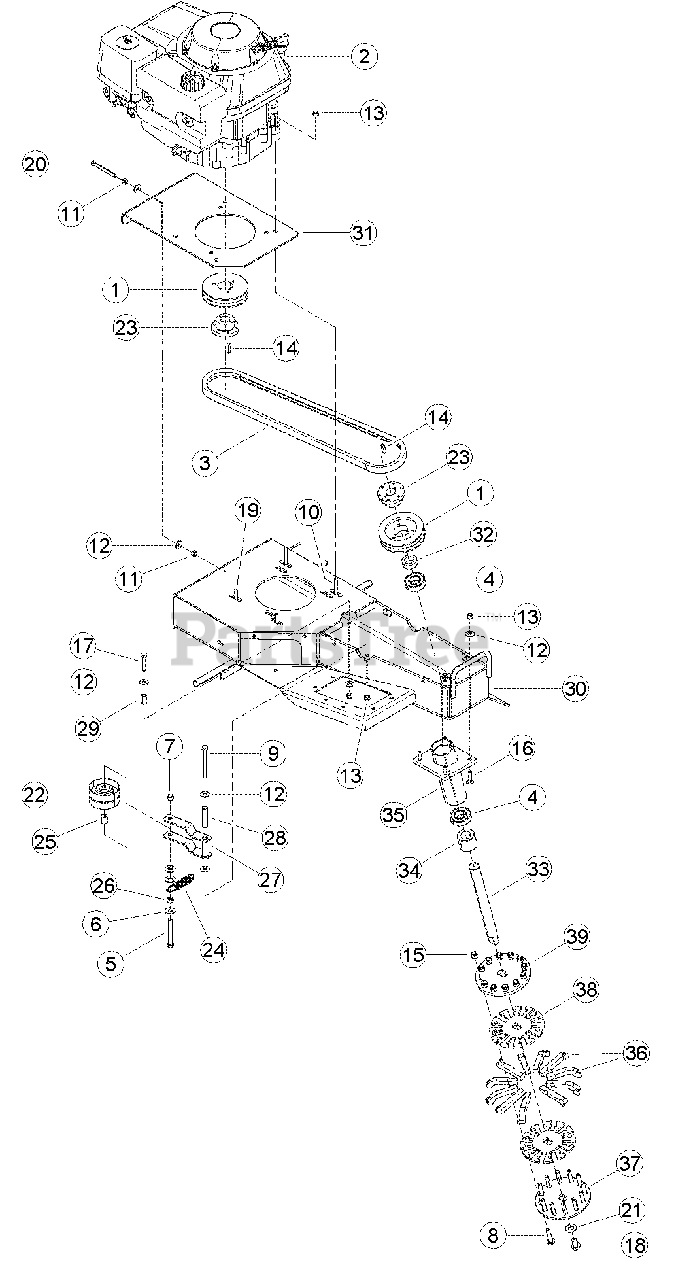

Drive & Cutter Parts Diagram

  • Title

1

Bear Cat 12363

SHEAVE, 3V4.5-2 GROOVE SH

$99.99

$

Usually ships in 3-7 days

0

2

ENGINE, 11 HP HONDA GXV (FOR SERVICE SEE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED HONDA ENGINE DEALER)

$

$

Not available

3

Bear Cat 12365

BELT, 3VX530 DOUBLE BANDED

$85.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12370

BEARING, 1 IN. BALL
(Superseded to 71960-00)

$229.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15009

BOLT, 3/8 X 3 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

7

15047

NUT, 3/8 CENTERLOCK ZP

$

$

Not available

8

Bear Cat 15059

BOLT, 3/8 X 1-3/4 CRG GR5 ZP

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15124

BOLT, 5/16 X 3-1/2 HEX HD ZP

$

$

Not available

10

15140

BOLT, 5/16 X 2 HCS GR5 ZP

$

$

Not available

11

15153

NUT, 5/16 HEX NC ZP

$

$

Not available

12

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

13

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

14

Bear Cat 15365

KEY, 1/4 SQUARE X 1 LONG

$

$

Not available

15

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15398

BOLT, 5/16 X 1-1/4 CRG GR5 ZP

$

$

Not available

17

Bear Cat 15403

BOLT, 5/16-18 X 1-3/4 HCS GR5 ZP

$

$

Not available

18

Bear Cat 15413

BOLT, 1/2-20 X 3/4 HEX HD GR5 NF ZP

$

$

Not available

19

Bear Cat 15496

BOLT, 5/16 X 1-1/4 HCS NF GR5 ZP

$

$

Not available

20

Bear Cat 15588

SCREW, 5/16 X 3 SQ HD SET

$9.49

$

Usually ships in 3-7 days

0

21

Bear Cat 15762-00

WASHER, 1/2 HI-STRENGTH SAE ZP

$

$

Not available

22

Bear Cat 16319

PULLEY, 3-1/4 FLAT IDLER

$77.99

$

Usually ships in 3-7 days

0

23

Bear Cat 16517

BUSHING, SH 1"

$

$

Not available

24

Bear Cat 17692

SPRING, 3/4"OD EXTENSION

$12.99

$

In Stock, only 2 left!

0

25

Bear Cat 62531

TUBE, SPACER 3/4" LONG IDLER

$8.49

$

Usually ships in 3-7 days

0

26

Bear Cat 69239

SPACER IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

27

Bear Cat 70287

WELDMENT, 2 BELT IDLER

$184.99

$

Usually ships in 3-7 days

0

28

Bear Cat 70357

PIVOT TUBE

$24.99

$

Usually ships in 3-7 days

0

29

Bear Cat 70495

SPACER, .54 X .88

$12.99

$

Usually ships in 3-7 days

0

30

Bear Cat 72798-35

WELDMENT, STUMPGRINDER FRAME

$1184.99

$

Usually ships in 3-7 days

0

31

Bear Cat 72802-35

PLATE, ENGINE SLIDE

$128.99

$

Usually ships in 3-7 days

0

32

Bear Cat 72819

SPACER, 1-1/2 X 1/2

$34.99

$

Usually ships in 3-7 days

0

33

Bear Cat 76253-00

SPINDLE, CUTTER SG 12 BLADE
(Superseded to 71960-00)

$229.99

$

Usually ships in 3-7 days

0

34

Bear Cat 76254-00

TUBE, SPACER 1-3/4 X 1.520

$51.99

$

Usually ships in 3-7 days

0

35

Bear Cat 76257-12

WELDMENT, SPINDLE HUB

$204.99

$

Usually ships in 3-7 days

0

36

STUMP GRINDER, TEETH (FOR SERVICE ORDER REPLACEMENT KIT PN 76292-00)

$

$

Not available

36

Bear Cat 76292-00

KIT, 12 BLADE CUTTER REPLACEMENT

$549.99

$

In Stock, only 1 left!

0

37

Bear Cat 76898-12

PLATE, COVER STUMPGRINDER HEAD

$48.99

$

Usually ships in 3-7 days

0

38

Bear Cat 76899-00

PLATE, SPACER STUMPGRINDER HEAD
(Superseded to 76899-12)

$47.99

$

Usually ships in 3-7 days

0

39

Bear Cat 76900-12

PLATE, DISK STUMPGRINDER HEAD

$71.99

$

Usually ships in 3-7 days

0
