SG 340 - Bear Cat Stump Grinder, 340cc Honda (SN: D00001 & Above) Handlebar (SN: F01401 - CURRENT) Parts Diagram

Stump Grinder, 340cc Honda

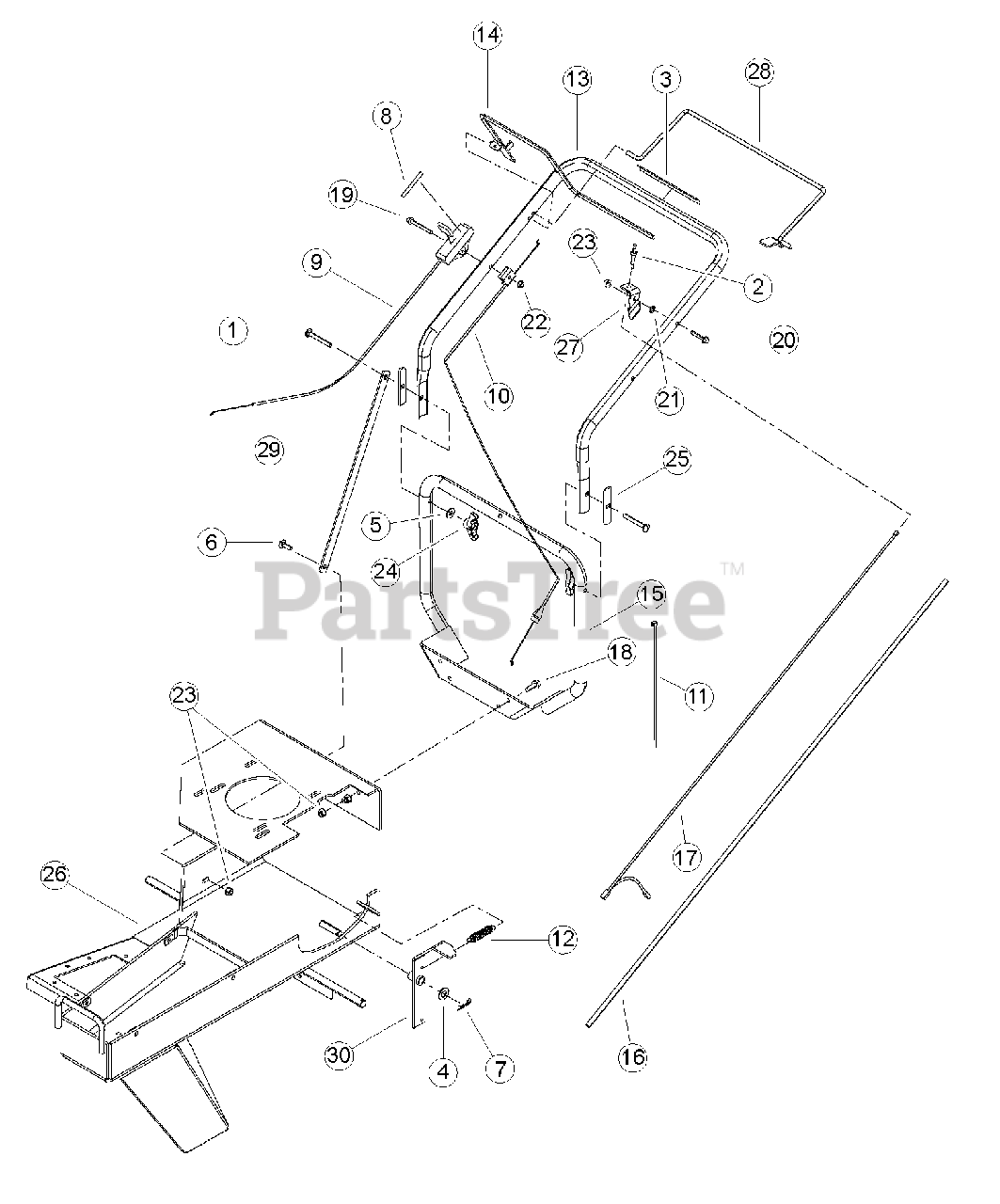

Handlebar (SN: F01401 - CURRENT) Parts Diagram

  • Title

1

0103-0508-00

BOLT, 5/16 X 2-1/2 CARRIAGE GR5 ZP

$

$

Not available

2

Bear Cat 12014

SWITCH, ENGINE KILL
(Superseded to 78093-00)

$114.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12017

DECAL, STUMPGRINDER CONTROL

$16.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15097

WASHER 1/2 SAE FLAT ZP(56PC/LB

$

$

Not available

5

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

6

Bear Cat 15301

BOLT, 5/16 X 1 INCH GR5 CRG ZP

$

$

Not available

7

Bear Cat 15368

HAIRPIN CLIP ZP #203

$

$

Not available

8

Bear Cat 16238

DECAL, THROTTLE

$5.49

$

Usually ships in 3-7 days

0

9

Bear Cat 16239

THROTTLE CONTROL

$44.99

$

Usually ships in 3-7 days

0

10

Bear Cat 16694

CABLE, STUMP GRINDER

$60.99

$

Usually ships in 3-7 days

0

11

17320

STRAP, 11 INCH BLACK TIE

$

$

Not available

12

Bear Cat 17520

SPRING,LT EXT .555OD X 2.75LG

$15.99

$

Usually ships in 3-7 days

0

13

Bear Cat 71207

UPPER HANDLE BAR
(Superseded to 71207-12)

$145.99

$

Usually ships in 3-7 days

0

14

Bear Cat 71402

TOP BAIL WELDMENT

$94.99

$

Usually ships in 3-7 days

0

15

Bear Cat 71692

WELDMENT, HANDLEBAR

$281.99

$

Usually ships in 3-7 days

0

16

Bear Cat 71708

CONDUIT, 1/4 X 47 WIRE

$34.99

$

Usually ships in 3-7 days

0

17

Bear Cat 14947-00

WIRE ASSEMBLY, ENGINE KILL

$45.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

19

Bear Cat 15127-00

BOLT, 5/16 X 1-3/4 FLANGE NC

$3.99

$

Usually ships in 3-7 days

0

20

15168-00

BOLT, 1/4 X 1-1/2 FLANGE NC

$

$

Not available

21

Bear Cat 15712-00

WASHER, 5/16 EXTERNAL TOOTH ZP

$0.99

$

Usually ships in 3-7 days

0

22

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

23

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

24

Bear Cat 31994-00

KNOB, 5/16-18 UNC TEE W/LOCKING INSERT

$8.99

$

Usually ships in 3-7 days

0

25

Bear Cat 72684-12

BRACE, HANDLEBAR

$28.99

$

Usually ships in 3-7 days

0

26

Bear Cat 72798-35

WELDMENT, STUMPGRINDER FRAME

$1112.99

$

Usually ships in 3-7 days

0

27

Bear Cat 72820-12

STRIP, SWITCH MOUNT

$44.99

$

Usually ships in 3-7 days

0

28

Bear Cat 72821-12

WELDMENT, BOTTOM BAIL

$87.99

$

Usually ships in 3-7 days

0

29

Bear Cat 72823-12

STRIP, HANDLEBAR SUPPORT

$11.99

$

Usually ships in 3-7 days

0

30

Bear Cat 77745-12

WELDMENT, WHEEL BRAKE

$103.99

$

Usually ships in 3-7 days

0
