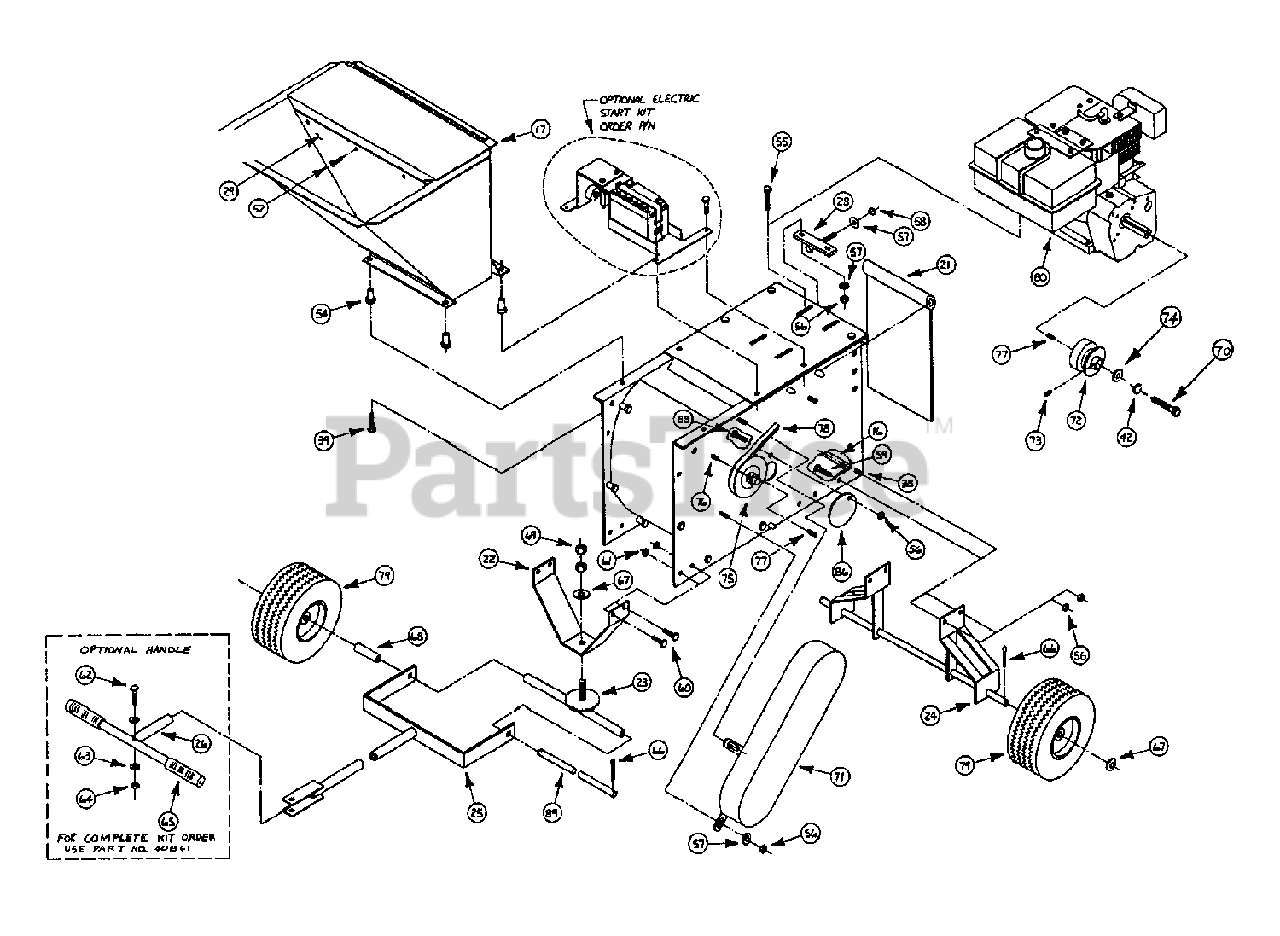

SG 8000 (80196) - Snapper Shredder Grinder Chipper, 8hp Frame Section Parts Diagram

Shredder Grinder Chipper, 8hp

Frame Section Parts Diagram

  • Title

16

Snapper 40772

Spacer

$

$

Currently unavailable

17

Snapper 40773

Hopper

$

$

Currently unavailable

21

Snapper 40774

Baffle Plate

$

$

Currently unavailable

22

Snapper 40775

Front Axle Mounting Bracket

$

$

Currently unavailable

23

Snapper 40776

Axle

$

$

Currently unavailable

24

Snapper 40777

Axle Bracket

$

$

Currently unavailable

25

Snapper 40778

Tow Hitch

$

$

Currently unavailable

26

Snapper 40779

Pull Handle

$

$

Currently unavailable

28

Snapper 40780

Belt Tensioner

$

$

Currently unavailable

29

Snapper 40781

Hopper Flex Guard

$

$

Currently unavailable

38

Snapper 40782

Tie Rod

$

$

Currently unavailable

39

Snapper 7090627

5/16-18 x 1-1/4 Hex Hd. Cap Screw GR 5

$

$

Not available

42

Snapper 7090873

Washer, 7/16" Internal Lock

$2.49

$

Usually ships in 2-12 days

0

52

Snapper 40801

Push Button

$

$

Currently unavailable

54

Snapper 40799

Vibration Dampner

$

$

Currently unavailable

55

Snapper 7027174

5/16-18 x 2 Hex Hd. Cap Screw Pltd.
(Superseded to 703867)

Note: Was 90930

$4.99

$

In Stock, Qty 6

0

56

Snapper 7090194

5/16-18 Grip-Co Lock Nut Pltd.

$

$

Currently unavailable

57

Snapper 7090692

5/16 Flat Washer Pltd.
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

58

Snapper 7091706

5/16-18 Flex Lock Nut Pltd.
(Superseded to 7091706SM)

Note: Was 40861

$3.99

$

In Stock, only 1 left!

0

59

Snapper 7076934

5/16-18 x 3/4 Hex Hd. Cap Screw Pltd.
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

60

Snapper 7091086

3/8-16 x 3/4 Hex Hd. Cap Screw Pltd.
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

61

Snapper 7091299

3/8-16 Grip-Co Lock Nut Pltd.
(Superseded to 703117)

Note: Was 90490

$3.49

$

In Stock, Qty 20+

0

62

Snapper 7091497

3/8-16 x 1-1/2 Hex Hd. Cap Screw Pltd.
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, Qty 6

0

63

Snapper 7090517

3/8 Flatwasher Pltd.
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

64

Snapper 7091299

3/8-16 Flex Lock Nut Pltd.
(Superseded to 703117)

Note: Was 40863

$3.49

$

In Stock, Qty 20+

0

65

Snapper 40873

Handle Grip

$

$

Currently unavailable

66

Snapper 7091809

1/8 x 1-1/4 Cotter Pin
(Superseded to 7091809YP)

Note: Was 90042

$4.49

$

In Stock, only 2 left!

0

67

Snapper 7091628

5/8 Flatwasher Pltd.
(Superseded to 7091628SM)

Note: Was 40864

$4.49

$

In Stock, Qty 5

0

68

Snapper 40788

Axle Spacer

$

$

Currently unavailable

69

Snapper 1915726

5/8-11 Hex Nut Pltd.
(Superseded to 703912)

Note: Was 40865

$3.49

$

In Stock, only 1 left!

0

70

Snapper 40907

7/16-20 x 3/4" Hex Hd. Cap Screw

$

$

Currently unavailable

71

Snapper 40798

Belt Guard

$

$

Currently unavailable

72

Snapper 40886

Clutch

Note: Was 40783 (See "Clutch" illustration and parts list for assembly)

$

$

Currently unavailable

73

Snapper 77681

Set Screw (Used on early clutch only)
(Superseded to 77681GS)

$6.99

$

Usually ships in 2-12 days

0

74

Snapper 7090500

Flatwasher 7/16"

$2.99

$

In Stock, Qty 7

0

75

Snapper 40789

Rotor Pulley

Note: (Includes item #76)

$

$

Currently unavailable

76

Snapper 7090201

5/16-18 x 5/16 Set Screw
(Superseded to 7090201SM)

$

$

Not available

77

Snapper 7013250

1/4 x 1/4 x 1 Shaft Key
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

78

Snapper 40784

Belt 4L-450

$

$

Currently unavailable

79

Snapper 40785

Wheel 10.5 x 3.50

$

$

Currently unavailable

80

* ENGINE, 8 HP (B&S 190402-3126-01)

$

$

Not available

86

Snapper 40808

Cover Plate

$

$

Currently unavailable

88

Snapper 7090204

5/16-18 x 5/8 Hex Hd. Cap Screw
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

89

Snapper 40787

Axle Rod

$

$

Currently unavailable

Snapper 40841

Handle Kit

Note: (Optional; Incl. item 26 & 62-65)

$

$

Currently unavailable
