SG390HN - Exmark Stump Grinder, Honda (SN: 312000000 - 312999999) (2012) Belt Drive Assembly Parts Diagram

Stump Grinder, Honda

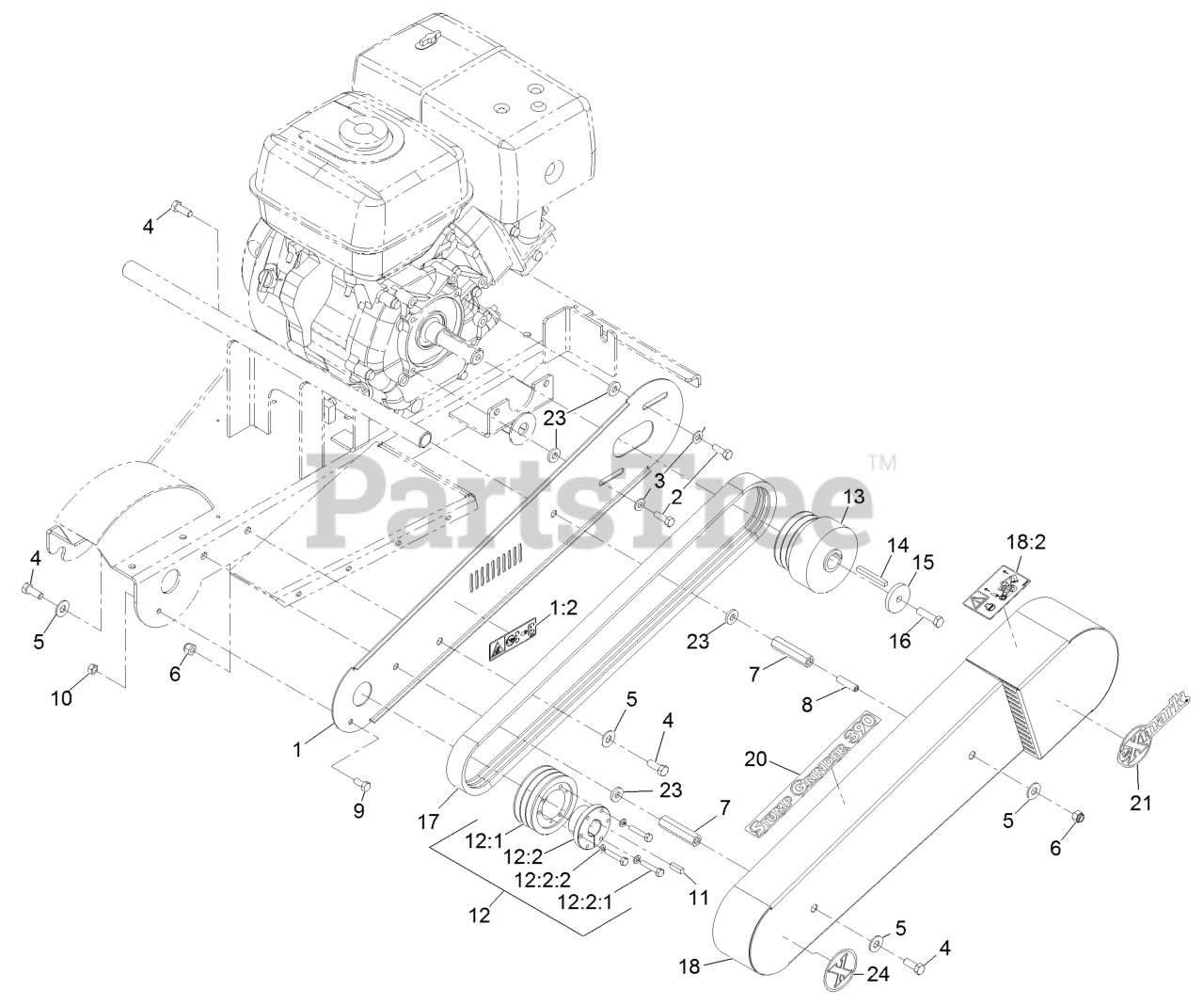

Belt Drive Assembly Parts Diagram

  • Title

1

Exmark 121-4413

PLATE-GUARD

$76.99

$

Usually ships in 3-6 days

0

1:2

Exmark 117-4979

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

2

Exmark 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 6

0

3

Exmark 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

4

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Exmark 120-1234

SPACER-GUARD

$28.99

$

Usually ships in 3-6 days

0

8

Exmark 3247-8

SCREW-SET, HSH

$13.99

$

Usually ships in 3-6 days

0

9

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

11

Exmark 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 8

0

12

Exmark 120-1298

SHEAVE ASM

$115.99

$

Usually ships in 3-6 days

0

12:1

Exmark 95-0883

PULLEY

$163.99

$

In Stock, only 3 left!

0

12:2

Exmark 61-3340

BUSHING

$87.99

$

In Stock, only 1 left!

0

12:2:1

Exmark 321-13

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

12:2:2

Exmark 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Exmark 120-1204

CLUTCH

$744.99

$

Usually ships in 3-6 days

0

14

Exmark 63-8150

KEY-SQUARE

$8.99

$

Usually ships in 3-6 days

0

15

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$14.99

$

In Stock, Qty 20+

0

16

Exmark 3211-6

SCREW-HH

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on threads.

$4.49

$

Usually ships in 3-6 days

0

17

Exmark 120-1203

BELT-3V

$87.99

$

Usually ships in 3-6 days

0

18

Exmark 121-4414

BELT GUARD ASM

$158.99

$

Usually ships in 3-6 days

0

18:2

Exmark 119-4692

DECAL-CAUTION

$4.99

$

Usually ships in 3-6 days

0

20

Exmark 116-6958

DECAL-STUMP GRINDER 390

$

$

Not available

21

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 15

0

23

Exmark 43-0940

SPACER

$5.49

$

In Stock, Qty 10

0

24

Exmark 116-6987

DECAL-EXMARK X-LOGO 2.64

$

$

Not available
