SGC 220 DL - RedMax Reciprocator Trimmer (SN: 918000 & Above) (1989-02) 028 - CUTTER SECTION Parts Diagram

Reciprocator Trimmer

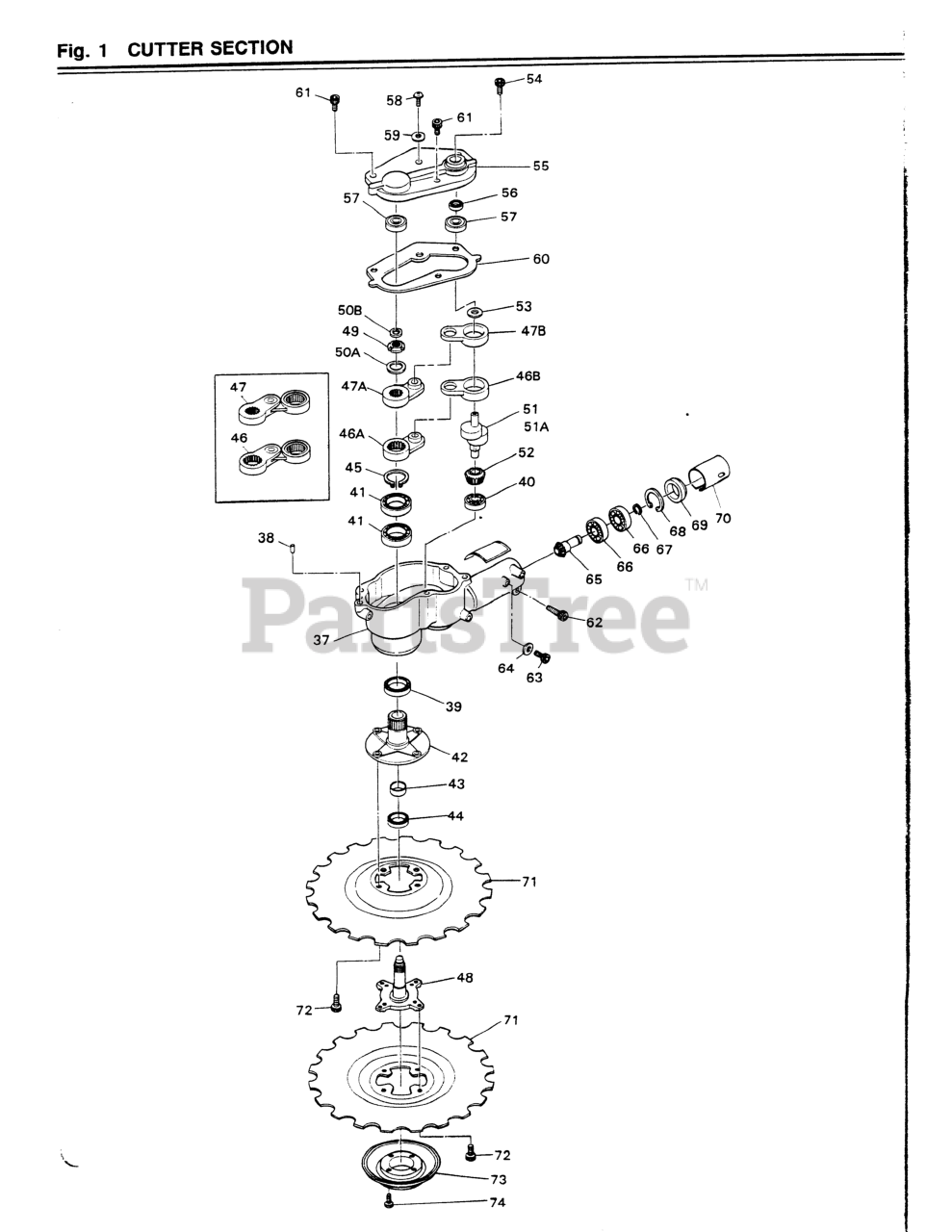

028 - CUTTER SECTION Parts Diagram

  • Title

37

RedMax 380513101

3805-13102
(Superseded to 521239501)

$157.99

$

Usually ships in 3-10 days

0

38

RedMax 030500512

PIN, DOWELL

$0.73

$

Usually ships in 3-10 days

0

39

RedMax 380513130

SEAL, OIL
(Superseded to 515065801)

$11.99

$

Usually ships in 3-10 days

0

40

RedMax 0600000608

BEARING

$

$

Not available

41

RedMax 0600006804

BEARING
(Superseded to 516129201)

$

$

Not available

42

RedMax 380513200

SHAFT, OUTER-C
(Superseded to 521239801)

$398.99

$

In Stock, only 1 left!

0

43

RedMax 380513220

BUSHING
(Superseded to 515066301)

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 380513230

SEAL, OIL
(Superseded to 515066401)

$9.49

$

Usually ships in 3-10 days

0

45

RedMax 0406402012

RING, SNAP, M20 x 1.2
(Superseded to 516124601)

$4.99

$

Usually ships in 3-10 days

0

46

RedMax 380513400

LINK-L-C

$177.86

$

Usually ships in 3-10 days

0

46A

RedMax 380513411

3805-13412
(Superseded to 515066701)

$125.99

$

Usually ships in 3-10 days

0

46B

RedMax 380513431

3805-13432
(Superseded to 521530001)

$102.99

$

Usually ships in 3-10 days

0

47

RedMax 380513600

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

47A

RedMax 380513611

3805-13612
(Superseded to 380513612)

$79.22

$

Usually ships in 3-10 days

0

47B

RedMax 380513431

3805-13432
(Superseded to 521530001)

$102.99

$

Usually ships in 3-10 days

0

48

RedMax 380513510

SHAFT, INNER
(Superseded to 515067001)

$113.99

$

Usually ships in 3-10 days

0

49

RedMax 380513520

NUT

$8.59

$

Usually ships in 3-10 days

0

50A

RedMax 380513550

SHIM, 0.3t

$0.76

$

Usually ships in 3-10 days

0

NI

RedMax 380513570

SHIM, 0.2T
(Superseded to 515067501)

$3.49

$

Usually ships in 3-10 days

0

50B

RedMax 380513560

SHIM

$0.76

$

Usually ships in 3-10 days

0

51

RedMax 380513710

3805-13711
(Superseded to 515067901)

$159.99

$

In Stock, only 1 left!

0

51A

RedMax 380513711

CRANKSHAFT (RPLS -13710)
(Superseded to 515067901)

$159.99

$

In Stock, only 1 left!

0

52

RedMax 380513720

GEAR
(Superseded to 515068001)

$62.99

$

In Stock, only 2 left!

0

53

RedMax 0164120812

WASHER, M8 x 1.2
(Superseded to 516077901)

$4.99

$

In Stock, only 1 left!

0

54

RedMax 380513750

BOLT
(Superseded to 515068101)

$3.49

$

Usually ships in 3-10 days

0

55

RedMax 380513800

COVER

$48.29

$

Usually ships in 3-10 days

0

56

RedMax 380513840

SEAL, OIL
(Superseded to 515068601)

$7.99

$

In Stock, only 2 left!

0

57

RedMax 0600200608

BEARING (RPLS. T4001-31340)
(Superseded to 516130201)

$18.99

$

Usually ships in 3-10 days

0

58

RedMax 026300610

SCREW, M6 x 10

$

$

Not available

59

RedMax 0700500612

GASKET
(Superseded to 516137501)

$3.99

$

Usually ships in 3-10 days

0

60

RedMax 380513910

GASKET
(Superseded to 515068701)

$4.99

$

Usually ships in 3-10 days

0

61

RedMax 0125240520

BOLT, M5 x 20
(Superseded to 516072901)

$3.99

$

In Stock, only 1 left!

0

62

RedMax 0125240525

BOLT, M5 X 25

$0.78

$

Usually ships in 3-10 days

0

63

RedMax 0125240514

BOLT, M5 x 14

$0.78

$

Usually ships in 3-10 days

0

64

RedMax 380513920

GASKET

$1.80

$

Usually ships in 3-10 days

0

65

RedMax 380513930

PINION
(Superseded to 515068901)

$28.99

$

In Stock, only 1 left!

0

66

RedMax 0600006000

BEARING (RPLS T3403-13510)
(Superseded to 505170201)

$9.99

$

Usually ships in 3-10 days

0

67

RedMax 318013330

RING, SNAP
(Superseded to 514128201)

$4.99

$

Usually ships in 3-10 days

0

68

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 1 left!

0

69

RedMax 380513940

PACKING
(Superseded to 521242801)

$7.99

$

Usually ships in 3-10 days

0

70

RedMax 380513950

3805-13951

$

$

Not available

71

RedMax 380595110

3805-6

$

$

Not available

72

RedMax 0125240608

BOLT, M6 x 8
(Superseded to 516073201)

$3.49

$

In Stock, Qty 15

0

73

RedMax 380515151

3805-15140
(Superseded to 515070001)

$20.99

$

In Stock, Qty 11

0

74

RedMax 026330508

SCREW, M5 X 8
(Superseded to 510478101)

$4.99

$

In Stock, Qty 19

0
