SGC 2300 DL - RedMax Reciprocator Trimmer (SN: 660001 & Above) (1997-01) 014 - DRIVE UNIT/ACCESSORIES Parts Diagram

Reciprocator Trimmer

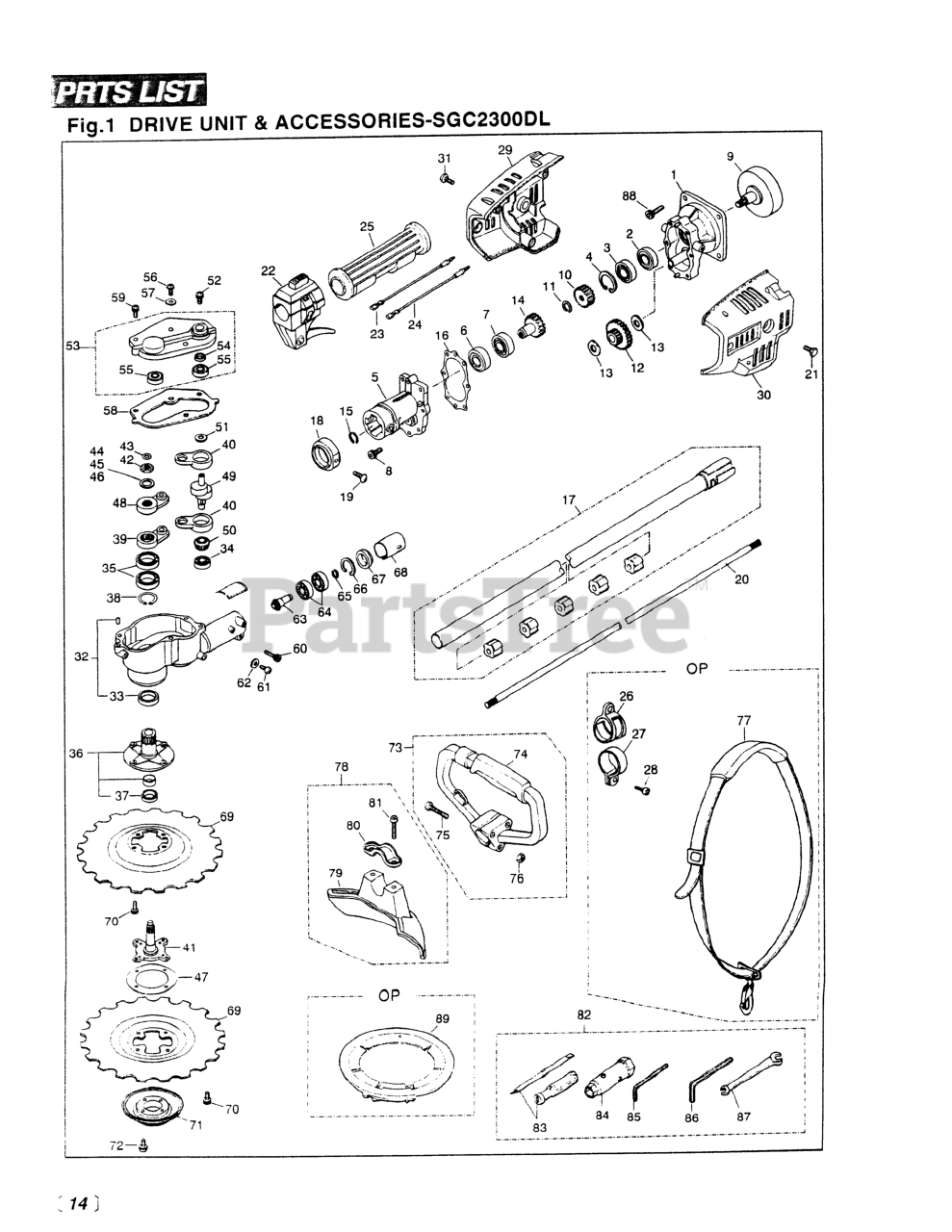

014 - DRIVE UNIT/ACCESSORIES Parts Diagram

  • Title

1

RedMax 380511101

3805-11102
(Superseded to 521236901)

$145.99

$

Usually ships in 3-10 days

0

2

RedMax 0600406001

BEARING
(Superseded to 506610101)

$24.99

$

Usually ships in 3-10 days

0

3

RedMax 0600006001

BEARING
(Superseded to 516127901)

$10.99

$

Usually ships in 3-10 days

0

4

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 1 left!

0

5

RedMax 380511211

CASE, FRONT
(Superseded to 515063201)

$84.99

$

Usually ships in 3-10 days

0

6

RedMax 0600406001

BEARING
(Superseded to 506610101)

$24.99

$

Usually ships in 3-10 days

0

7

RedMax 0600006001

BEARING
(Superseded to 516127901)

$10.99

$

Usually ships in 3-10 days

0

8

RedMax 0125230520

BOLT, M5 X 20
(Superseded to 516070801)

$6.49

$

In Stock, Qty 15

0

9

RedMax 380511310

DRUM
(Superseded to 515063401)

$93.99

$

Usually ships in 3-10 days

0

10

RedMax 380511320

GEAR, PINION

$14.05

$

Usually ships in 3-10 days

0

11

RedMax 318013330

RING, SNAP
(Superseded to 514128201)

$4.99

$

In Stock, Qty 6

0

12

RedMax 380511331

GEAR (RPLS 3805-11330)
(Superseded to 515063601)

$40.99

$

Usually ships in 3-10 days

0

13

RedMax 380511370

WASHER
(Superseded to 516968901)

$3.49

$

Usually ships in 3-10 days

0

14

RedMax 380511360

GEAR, WHEEL

$56.35

$

Usually ships in 3-10 days

0

15

RedMax 313013270

04064-01210
(Superseded to 516124101)

$4.99

$

In Stock, only 1 left!

0

16

RedMax 380511411

3805-11412
(Superseded to 521238101)

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 380512100

3805-12101
(Superseded to 521238501)

$133.99

$

Usually ships in 3-10 days

0

18

RedMax 356511341

CAP
(Superseded to 514381901)

$6.49

$

Usually ships in 3-10 days

0

19

RedMax 026390510

SCREW, M5 X 10
(Superseded to 516112901)

$3.99

$

Usually ships in 3-10 days

0

20

RedMax 380512210

SHAFT
(Superseded to 515065001)

$72.99

$

Usually ships in 3-10 days

0

21

RedMax 022500608

BOLT, M6 x 8

$0.31

$

Usually ships in 3-10 days

0

22

RedMax 604112400

T3065-12200
(Superseded to 521529901)

$

$

Not available

23

RedMax 611614420

CORD-A, BLACK
(Superseded to 521423101)

$

$

Not available

24

RedMax 611614430

CORD-B, RED
(Superseded to 521423201)

$

$

Not available

25

RedMax 357732140

3577-32141

$

$

Not available

26

RedMax 613018101

HANGER (REPLACES -18100)

$8.32

$

Usually ships in 3-10 days

0

27

RedMax 613018200

CLAMP

$4.35

$

Usually ships in 3-10 days

0

28

RedMax 026390520

SCREW, M5X20 (RPLS.1400-75510)

$0.25

$

Usually ships in 3-10 days

0

29

RedMax 380511511

COVER, RIGHT (RPLS. -11510)

$8.98

$

Usually ships in 3-10 days

0

30

RedMax 380511521

COVER, LEFT (RPLS -11520)
(Superseded to 521238301)

$

$

Not available

31

RedMax 220076210

SCREW

$0.32

$

Usually ships in 3-10 days

0

32

RedMax 397413102

CASE, CUTTER (RPLS -13100)

$

$

Not available

33

RedMax 380513130

SEAL, OIL
(Superseded to 515065801)

$12.99

$

In Stock, only 1 left!

0

34

RedMax 0600000608

BEARING

$

$

Not available

35

RedMax 0600006804

BEARING
(Superseded to 516129201)

$

$

Not available

36

RedMax 380513200

SHAFT, OUTER-C
(Superseded to 521239801)

$241.99

$

In Stock, only 1 left!

0

37

RedMax 380513230

SEAL, OIL
(Superseded to 515066401)

$9.99

$

Usually ships in 3-10 days

0

38

RedMax 0406402012

RING, SNAP, M20 x 1.2
(Superseded to 516124601)

$3.49

$

Usually ships in 3-10 days

0

39

RedMax 380513412

ARM, LOWER (RPLS -13411)
(Superseded to 515066701)

$136.99

$

Usually ships in 3-10 days

0

40

RedMax 380513432

848-8R2-61M3
(Superseded to 521530001)

$121.99

$

Usually ships in 3-10 days

0

41

RedMax 380513510

SHAFT, INNER
(Superseded to 515067001)

$169.99

$

Usually ships in 3-10 days

0

42

RedMax 380513520

NUT

$8.59

$

Usually ships in 3-10 days

0

43

RedMax 380513560

SHIM

$0.76

$

Usually ships in 3-10 days

0

44

RedMax 380513550

SHIM, 0.3t

$0.76

$

Usually ships in 3-10 days

0

45

RedMax 380513570

SHIM, 0.2T
(Superseded to 515067501)

$3.99

$

Usually ships in 3-10 days

0

46

RedMax 380513580

SHIM, 0.1t
(Superseded to 521241201)

$3.99

$

In Stock, only 2 left!

0

47

RedMax 380513590

SHIM

$4.99

$

Usually ships in 3-10 days

0

48

RedMax 380513612

ARM, UPPER (RPLS -13611)

$79.22

$

Usually ships in 3-10 days

0

49

RedMax 380513711

CRANKSHAFT (RPLS -13710)
(Superseded to 515067901)

$169.99

$

In Stock, only 1 left!

0

50

RedMax 380513720

GEAR
(Superseded to 515068001)

$80.99

$

In Stock, only 2 left!

0

51

RedMax 0164120812

WASHER, M8 x 1.2
(Superseded to 516077901)

$3.99

$

In Stock, only 1 left!

0

52

RedMax 380513750

BOLT
(Superseded to 515068101)

$3.99

$

In Stock, only 2 left!

0

53

RedMax 397413800

COVER
(Superseded to 521314301)

$91.99

$

Usually ships in 3-10 days

0

54

RedMax 380513840

SEAL, OIL
(Superseded to 515068601)

$8.99

$

Usually ships in 3-10 days

0

55

RedMax 0600200608

BEARING (RPLS. T4001-31340)
(Superseded to 516130201)

$18.99

$

In Stock, only 1 left!

0

56

RedMax 026300610

SCREW, M6 x 10

$0.25

$

Usually ships in 3-10 days

0

57

RedMax 0700500612

GASKET
(Superseded to 516137501)

$3.99

$

Usually ships in 3-10 days

0

58

RedMax 380513910

GASKET
(Superseded to 515068701)

$6.49

$

In Stock, only 1 left!

0

59

RedMax 0125240520

BOLT, M5 x 20
(Superseded to 516072901)

$3.99

$

In Stock, only 2 left!

0

60

RedMax 380513970

BOLT

$0.85

$

Usually ships in 3-10 days

0

61

RedMax 026360514

SCREW, M5 x 14
(Superseded to 516112001)

$3.99

$

Usually ships in 3-10 days

0

62

RedMax 380513920

GASKET

$1.80

$

Usually ships in 3-10 days

0

63

RedMax 380513930

PINION
(Superseded to 515068901)

$74.99

$

In Stock, only 1 left!

0

64

RedMax 0600006000

BEARING (RPLS T3403-13510)
(Superseded to 505170201)

$9.99

$

In Stock, only 4 left!

0

65

RedMax 318013330

RING, SNAP
(Superseded to 514128201)

$4.99

$

In Stock, Qty 6

0

66

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 4 left!

0

67

RedMax 380513940

PACKING
(Superseded to 521242801)

$7.99

$

In Stock, only 2 left!

0

68

RedMax 380513951

SPACER (RPLS -13950)
(Superseded to 515069201)

$15.99

$

Usually ships in 3-10 days

0

69

RedMax 380515111

3805-6

$

$

Not available

70

RedMax 0125240608

BOLT, M6 x 8
(Superseded to 516073201)

$4.99

$

Usually ships in 3-10 days

0

71

RedMax 380515140

STABILIZER (RPLS -15151)
(Superseded to 515070001)

$26.99

$

In Stock, Qty 12

0

72

RedMax 026330508

SCREW, M5 X 8
(Superseded to 510478101)

$4.99

$

In Stock, Qty 9

0

73

RedMax 397414300

6420-14100
(Superseded to 521465701)

$

$

Not available

74

RedMax 380514311

HANDLE (RPLS -14310)

$41.25

$

Usually ships in 3-10 days

0

75

RedMax 026000530

SCREW, M5 x 30(RPLS 0263-00530

$0.25

$

Usually ships in 3-10 days

0

76

RedMax 028010504

NUT, M5 X 4
(Superseded to 505172301)

$4.99

$

In Stock, only 2 left!

0

77

RedMax 611217201

6112-17202

$

$

Not available

78

RedMax 356524001

GUARD ASSY (RPLS -24000)
(Superseded to 521197701)

$34.99

$

Usually ships in 3-10 days

0

79

RedMax 356524111

GUARD (RPLS -24110)
(Superseded to 521197801)

$15.99

$

Usually ships in 3-10 days

0

80

RedMax 352024120

CLAMP (REPLACES 5807-24120)
(Superseded to 521160201)

$

$

Not available

81

RedMax 354024130

BOLT, M6 x 1.30
(Superseded to 521176001)

$4.99

$

In Stock, only 2 left!

0

82

RedMax 380591000

TOOL SET

$18.95

$

Usually ships in 3-10 days

0

83

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

84

RedMax 314491160

SOCKET

$4.42

$

Usually ships in 3-10 days

0

85

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

86

RedMax 0900700528

WRENCH (TOOL)
(Superseded to 516144701)

$4.99

$

Usually ships in 3-10 days

0

87

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$7.49

$

In Stock, Qty 10

0

88

RedMax 022550616

BOLT

$0.35

$

Usually ships in 3-10 days

0

89

RedMax 625115910

COVER (REPLACES D0041) ACC.

$9.86

$

Usually ships in 3-10 days

0
