SGCZ 2450 S - RedMax Reciprocator Trimmer (SN: 90800101 & Above) (2009-08) 002 - CASE UNIT Parts Diagram

Reciprocator Trimmer

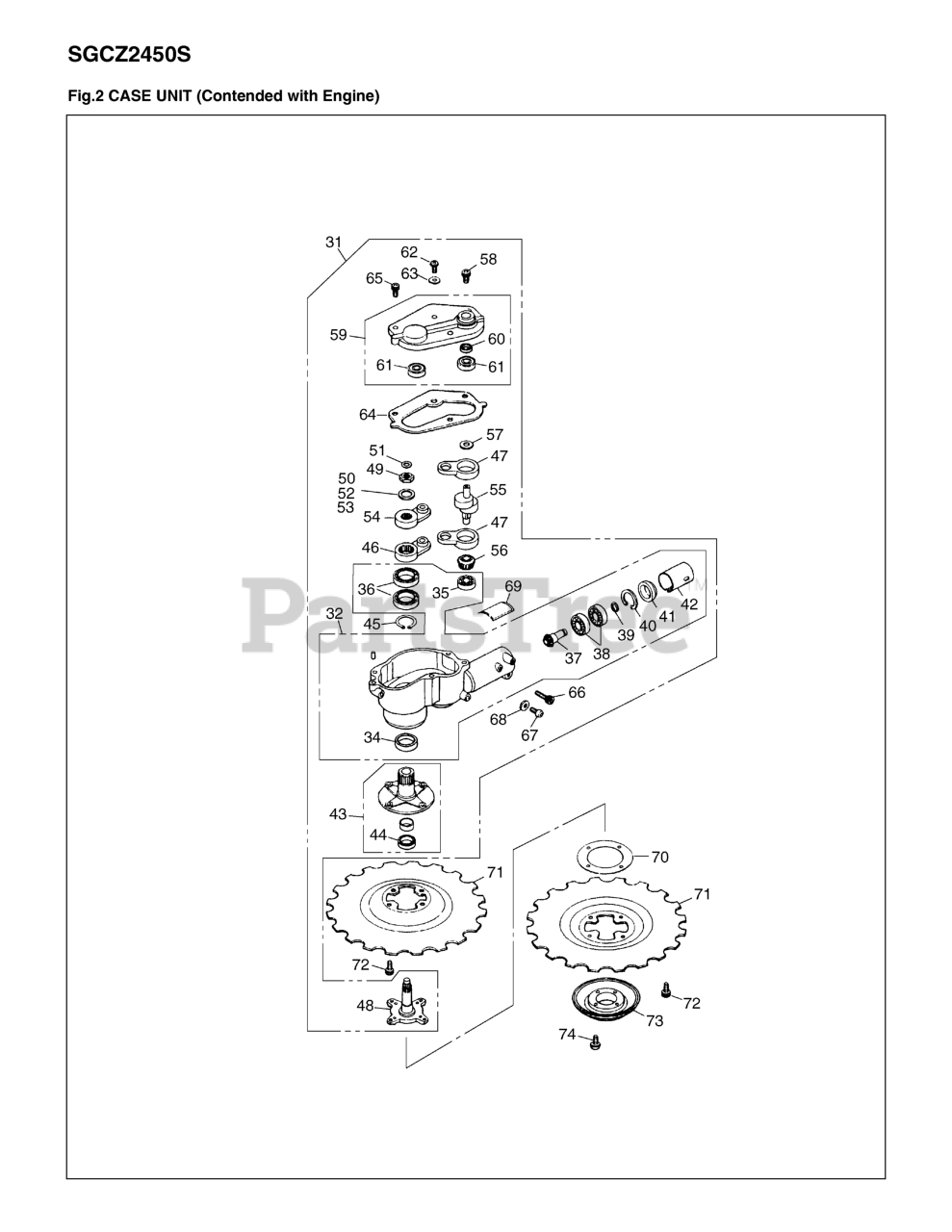

002 - CASE UNIT Parts Diagram

  • Title

31

RedMax T306598000

CUTTERCASE ASSEMBLY
(Superseded to 570920301)

$787.99

$

Usually ships in 3-10 days

0

32

RedMax 397498102

CUTTERCASE (RPLS -98100)
(Superseded to 521315201)

$363.99

$

Usually ships in 3-10 days

0

34

RedMax 380513130

SEAL, OIL
(Superseded to 515065801)

$12.99

$

In Stock, only 1 left!

0

35

RedMax 0600000608

BEARING

$

$

Not available

36

RedMax 0600006804

BEARING
(Superseded to 516129201)

$

$

Not available

37

RedMax 380513930

PINION
(Superseded to 515068901)

$74.99

$

In Stock, only 1 left!

0

38

RedMax 0600006000

BEARING (RPLS T3403-13510)
(Superseded to 505170201)

$9.99

$

In Stock, only 4 left!

0

39

RedMax 318013330

RING, SNAP
(Superseded to 514128201)

$4.99

$

In Stock, Qty 6

0

40

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 4 left!

0

41

RedMax 380513940

PACKING
(Superseded to 521242801)

$7.99

$

In Stock, only 2 left!

0

42

RedMax 380513951

SPACER (RPLS -13950)
(Superseded to 515069201)

$15.99

$

Usually ships in 3-10 days

0

43

RedMax 380513200

SHAFT, OUTER-C
(Superseded to 521239801)

$241.99

$

In Stock, only 1 left!

0

44

RedMax 380513230

SEAL, OIL
(Superseded to 515066401)

$9.99

$

Usually ships in 3-10 days

0

45

RedMax 0406402012

RING, SNAP, M20 x 1.2
(Superseded to 516124601)

$3.49

$

Usually ships in 3-10 days

0

46

RedMax 380513412

ARM, LOWER (RPLS -13411)
(Superseded to 515066701)

$136.99

$

Usually ships in 3-10 days

0

47

RedMax 8488R261M3

CONROD (RPLS 3805-13432)
(Superseded to 521530001)

$121.99

$

Usually ships in 3-10 days

0

48

RedMax 380513510

SHAFT, INNER
(Superseded to 515067001)

$169.99

$

Usually ships in 3-10 days

0

49

RedMax 380513520

NUT

$8.59

$

Usually ships in 3-10 days

0

50

RedMax 380513550

SHIM, 0.3t

$0.76

$

Usually ships in 3-10 days

0

51

RedMax 380513560

SHIM

$0.76

$

Usually ships in 3-10 days

0

52

RedMax 380513570

SHIM, 0.2T
(Superseded to 515067501)

$3.99

$

Usually ships in 3-10 days

0

53

RedMax 380513580

SHIM, 0.1t
(Superseded to 521241201)

$3.99

$

In Stock, only 2 left!

0

54

RedMax 380513612

ARM, UPPER (RPLS -13611)

$79.22

$

Usually ships in 3-10 days

0

55

RedMax 380513711

CRANKSHAFT (RPLS -13710)
(Superseded to 515067901)

$169.99

$

In Stock, only 1 left!

0

56

RedMax 380513720

GEAR
(Superseded to 515068001)

$80.99

$

In Stock, only 2 left!

0

57

RedMax 0164120812

WASHER, M8 x 1.2
(Superseded to 516077901)

$3.99

$

In Stock, only 1 left!

0

58

RedMax 380513750

BOLT
(Superseded to 515068101)

$3.99

$

In Stock, only 2 left!

0

59

RedMax T306513800

COVER COMP

$75.82

$

Usually ships in 3-10 days

0

60

RedMax 380513840

SEAL, OIL
(Superseded to 515068601)

$8.99

$

Usually ships in 3-10 days

0

61

RedMax 0600000608

BEARING

$

$

Not available

62

RedMax 026300610

SCREW, M6 x 10

$0.25

$

Usually ships in 3-10 days

0

63

RedMax 0164220608

WASHER, M6 x .8
(Superseded to 516078601)

$

$

Not available

64

RedMax 380513910

GASKET
(Superseded to 515068701)

$6.49

$

In Stock, only 1 left!

0

65

RedMax 0125240520

BOLT, M5 x 20
(Superseded to 516072901)

$3.99

$

In Stock, only 2 left!

0

66

RedMax 354013260

BOLT, M6 x 1.35
(Superseded to 521171901)

$3.99

$

In Stock, only 1 left!

0

67

RedMax 026360514

SCREW, M5 x 14
(Superseded to 516112001)

$3.99

$

Usually ships in 3-10 days

0

68

RedMax 0164220508

WASHER, M5x.8(RPLS 01624-20508
(Superseded to 544276501)

$

$

Not available

69

RedMax 397413991

LABEL, CAUTION

$0.85

$

Usually ships in 3-10 days

0

70

RedMax 380513590

SHIM

$4.99

$

Usually ships in 3-10 days

0

71

RedMax 380595111

BLADE
(Superseded to 597545902)

$133.99

$

Usually ships in 3-10 days

0

72

RedMax 0125240608

BOLT, M6 x 8
(Superseded to 516073201)

$4.99

$

Usually ships in 3-10 days

0

73

RedMax 380515140

STABILIZER (RPLS -15151)
(Superseded to 515070001)

$26.99

$

In Stock, Qty 12

0

74

RedMax 026330508

SCREW, M5 X 8
(Superseded to 510478101)

$4.99

$

In Stock, Qty 9

0
