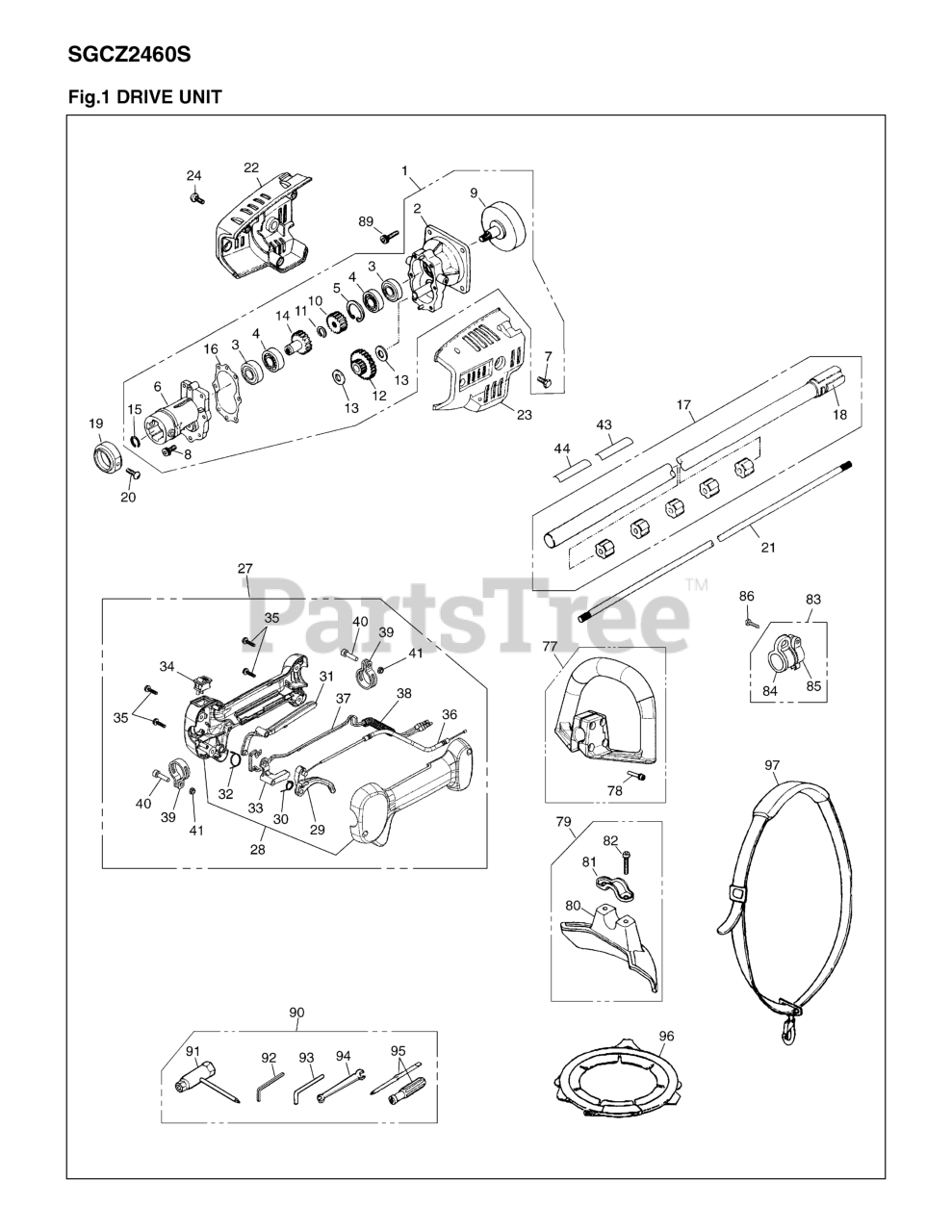

SGCZ 2460 S - RedMax Reciprocator Trimmer (SN: 00100101 & Above) (2010-04) > Parts Diagrams (3) > 002 - DRIVE UNIT

  • Title
521808101

1

MISSION ASSEMBLY

Part# 521808101 (Superseded to 570919501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $313.03

521236901

2

CASE,REAR COMP(R

Part# 521236901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $134.15

529269801

3

BEARING

Part# 529269801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.05

516127901

4

BEARING

Part# 516127901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $10.05

506609901

5

RING

Part# 506609901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521237201

6

CASE, FRONT

Part# 521237201 (Superseded to 515063201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $72.66

516087501

7

BOLT, M6 x 8

Part# 516087501 (Superseded to 510453101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

516070801

8

BOLT, M5 x 20

Part# 516070801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

521237301

9

DRUM

Part# 521237301 (Superseded to 515063401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $72.66

521237401

10

GEAR, PINION

Part# 521237401 (Superseded to 515063501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $22.35

520891101

11

RING, SNAP

Part# 520891101 (Superseded to 514128201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521237601

12

GEAR (RPLS 38051

Part# 521237601 (Superseded to 515063601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $33.53

516968901

13

WASHER

Part# 516968901 (Superseded to 522638901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.11

521237801

14

GEAR, WHEEL

Part# 521237801 (Superseded to 515063801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $78.25

520863501

15

RING

Part# 520863501

OEM Warranty Repair Part for RedMax

Not available

521238101

16

GASKET (RPLS 380

Part# 521238101 (Superseded to 515064101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

521238501

17

PIPE COMP (RPLS

Part# 521238501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $122.97

521238801

18

CUSHION (RPLS 38

Part# 521238801 (Superseded to 515064901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $11.17

521196401

19

CAP

Part# 521196401 (Superseded to 514381901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

516112901

20

SCREW, M5 x 10

Part# 516112901 (Superseded to 510481801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

521238901

21

SHAFT

Part# 521238901 (Superseded to 515065001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $61.48

521238201

22

COVER,RIGHT(RPLS

Part# 521238201 (Superseded to 515064201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $13.41

521238301

23

COVER, LEFT(RPLS

Part# 521238301 (Superseded to 515064301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $11.17

516665801

24

SCREW

Part# 516665801 (Superseded to 513495601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

574390401

27

GRIP ASSY

Part# 574390401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $72.66

576475201

28

GRIP, HALF SET

Part# 576475201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $22.35

529258801

29

LEVER, THROTTLE

Part# 529258801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

529259601

30

SPRING, THROTTLE

Part# 529259601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

529259001

31

LEVER FOR GRIP (

Part# 529259001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

574390801

32

SPRING

Part# 574390801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

529259201

33

LEVER JOINT

Part# 529259201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

521851601

34

SWITCH

Part# 521851601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

521517701

35

SCREW

Part# 521517701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

529257501

36

CABLE COMP

Part# 529257501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.05

529256201

37

CORD COMP

Part# 529256201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

521348001

38

TUBE

Part# 521348001 (Superseded to 512497101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

529259401

39

BAND

Part# 529259401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

521345401

40

BOLT (RPLS 28501

Part# 521345401 (Superseded to 504114301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

510911101

41

NUT

Part# 510911101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $6.70

576119101

43

NAME PLATE

Part# 576119101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

510962901

44

LABEL CAUTON FOR

Part# 510962901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

526056401

77

HANDLE ASSY. (RP

Part# 526056401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $25.70

521863101

78

SCREW

Part# 521863101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521197701

79

GUARD ASSY (RPLS

Part# 521197701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $27.94

521197801

80

GUARD (RPLS 3565

Part# 521197801 (Superseded to 514383601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $14.52

521160201

81

CLAMP (RPLS 5807

Part# 521160201 (Superseded to 514346001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

521176001

82

BOLT, M6 x 1.30

Part# 521176001 (Superseded to 514363501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

521822101

83

HANGER COMP.

Part# 521822101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

521822201

84

HANGER

Part# 521822201 (Superseded to 521822101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

521822301

85

CLAMP

Part# 521822301

OEM Warranty Repair Part for RedMax

Not available

521515301

86

SCREW

Part# 521515301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

521477601

89

BOLT, M6 x 20

Part# 521477601 (Superseded to 505312401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

510959101

90

TOOL SET

Part# 510959101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $8.93

510960201

91

SOCKET

Part# 510960201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

505311901

92

WRENCH

Part# 505311901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

516144701

93

WRENCH (TOOL)

Part# 516144701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

521176201

94

SPANNER,8 x 10(R

Part# 521176201 (Superseded to 506615001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $6.70

516153801

95

SCREWDRIVER

Part# 516153801 (Superseded to 506689501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

521664101

96

COVER

Part# 521664101 (Superseded to 515557601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $6.70

510997801

97

STRAP ASSY

Part# 510997801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $33.53
