SGCZ 2460 S - RedMax Reciprocator Trimmer (SN: 00100101 & Above) (2010-04) 003 - CASE UNIT Parts Diagram

Reciprocator Trimmer

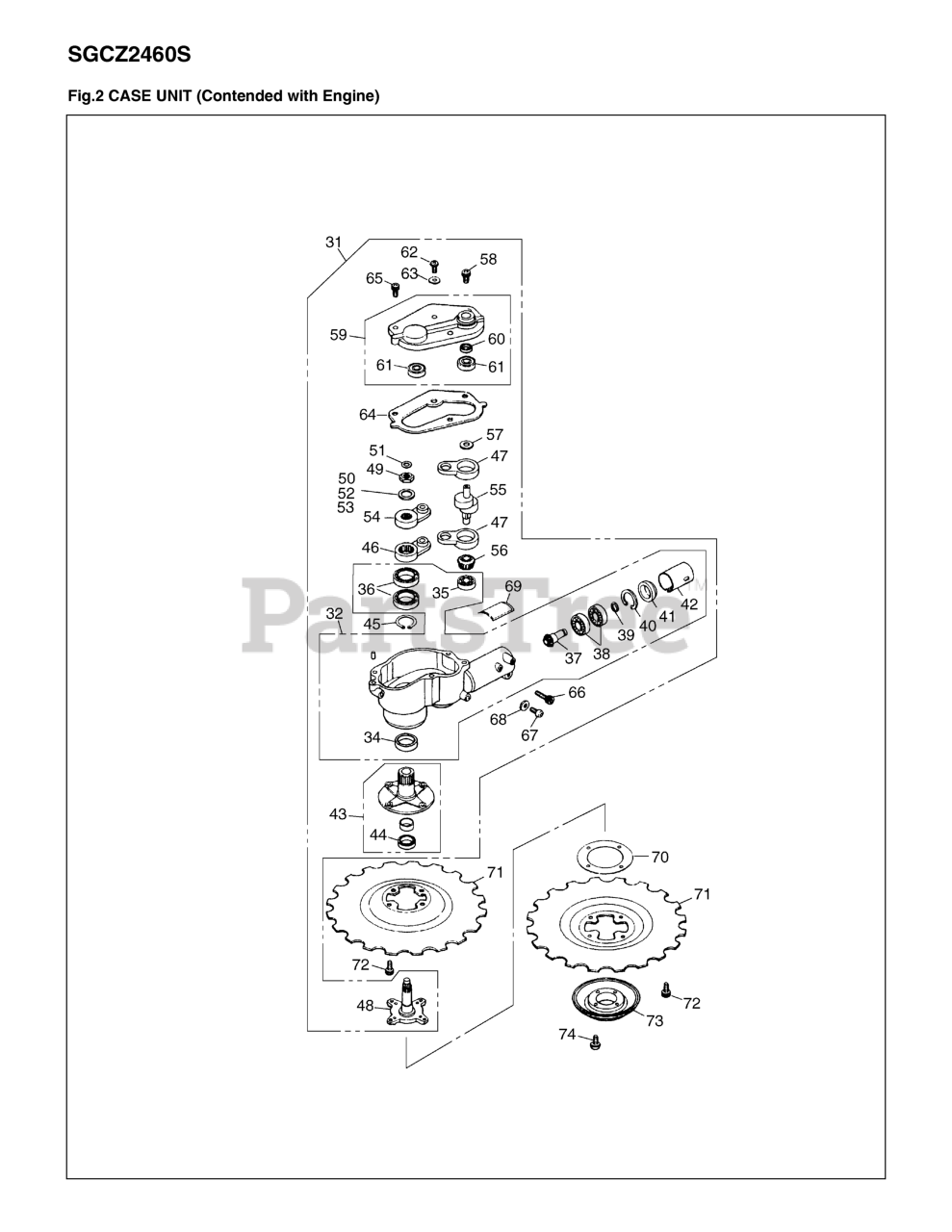

003 - CASE UNIT Parts Diagram

  • Title

31

RedMax 526026501

CUTTERCASE ASSEM
(Superseded to 570920301)

$787.99

$

Usually ships in 3-10 days

0

32

RedMax 521315201

CUTTERCASE (R-98

$363.99

$

Usually ships in 3-10 days

0

34

RedMax 521239701

SEAL, OIL
(Superseded to 515065801)

$12.99

$

In Stock, only 1 left!

0

35

RedMax 516127501

BEARING (RPL 060

$10.99

$

In Stock, only 3 left!

0

36

RedMax 516129201

BEARING

$

$

Not available

37

RedMax 521242701

PINION
(Superseded to 515068901)

$74.99

$

In Stock, only 1 left!

0

38

RedMax 505170201

BEARING (RPLS 06

$9.99

$

In Stock, only 2 left!

0

39

RedMax 520891101

RING, SNAP
(Superseded to 514128201)

$4.99

$

In Stock, Qty 5

0

40

RedMax 516125501

RING,SNAP M26x1.

$4.99

$

In Stock, only 4 left!

0

41

RedMax 521242801

PACKING
(Superseded to 515069101)

$7.99

$

In Stock, only 2 left!

0

42

RedMax 521242901

SPACER (RPLS 380
(Superseded to 515069201)

$15.99

$

Usually ships in 3-10 days

0

43

RedMax 521239801

SHAFT, OUTER-C

$241.99

$

In Stock, only 1 left!

0

44

RedMax 521240101

SEAL, OIL
(Superseded to 515066401)

$9.99

$

Usually ships in 3-10 days

0

45

RedMax 516124601

RING, SNAP, M20

$3.49

$

Usually ships in 3-10 days

0

46

RedMax 521240401

ARM, LOWER (RPLS
(Superseded to 515066701)

$136.99

$

Usually ships in 3-10 days

0

47

RedMax 521530001

CONROD (RPLS 380

$121.99

$

Usually ships in 3-10 days

0

48

RedMax 521240701

SHAFT, INNER
(Superseded to 515067001)

$169.99

$

Usually ships in 3-10 days

0

49

RedMax 521240801

NUT
(Superseded to 515067201)

$13.99

$

Usually ships in 3-10 days

0

50

RedMax 521240901

SHIM, 0.3t
(Superseded to 515067301)

$3.99

$

In Stock, only 2 left!

0

51

RedMax 521241001

SHIM
(Superseded to 515067401)

$3.99

$

Usually ships in 3-10 days

0

52

RedMax 521241101

SHIM, 0.2t
(Superseded to 515067501)

$3.99

$

Usually ships in 3-10 days

0

53

RedMax 521241201

SHIM, 0.1t
(Superseded to 515067601)

$3.99

$

In Stock, only 2 left!

0

54

RedMax 521241601

ARM, UPPER (RPLS
(Superseded to 515067801)

$133.99

$

Usually ships in 3-10 days

0

55

RedMax 521241801

CRANKSHAFT (RPLS
(Superseded to 515067901)

$169.99

$

In Stock, only 1 left!

0

56

RedMax 521241901

GEAR
(Superseded to 515068001)

$80.99

$

In Stock, only 1 left!

0

57

RedMax 516077901

WASHER, M8 x 1.2

$3.99

$

In Stock, only 1 left!

0

58

RedMax 521242001

BOLT
(Superseded to 515068101)

$3.99

$

In Stock, only 2 left!

0

59

RedMax 521808401

COVER COMP
(Superseded to 570920001)

$84.99

$

Usually ships in 3-10 days

0

60

RedMax 521242401

SEAL, OIL
(Superseded to 515068601)

$8.99

$

Usually ships in 3-10 days

0

61

RedMax 516127501

BEARING (RPL 060

$10.99

$

In Stock, only 3 left!

0

62

RedMax 516107501

SCREW, M6 x 10
(Superseded to 510474401)

$3.99

$

In Stock, only 3 left!

0

63

RedMax 516078601

WASHER, M6 x .8

$

$

Not available

64

RedMax 521242501

GASKET
(Superseded to 515068701)

$6.49

$

Usually ships in 3-10 days

0

65

RedMax 516072901

BOLT, M5 x 20

$3.99

$

In Stock, only 2 left!

0

66

RedMax 521171901

BOLT, M6 x 1.35
(Superseded to 506614901)

$3.99

$

In Stock, only 1 left!

0

67

RedMax 516112001

SCREW, M5 x 14
(Superseded to 510480601)

$3.99

$

Usually ships in 3-10 days

0

68

RedMax 516078501

WASHER
(Superseded to 544276501)

$

$

Not available

69

RedMax 521314401

LABEL, CAUTION
(Superseded to 515326701)

$

$

Not available

70

RedMax 521241301

SHIM
(Superseded to 515067701)

$4.99

$

In Stock, Qty 11

0

71

RedMax 526493401

BLADE
(Superseded to 597545902)

$133.99

$

In Stock, Qty 20+

0

72

RedMax 516073201

BOLT, M6 x 8

$4.99

$

Usually ships in 3-10 days

0

73

RedMax 521243401

STABILIZER (RPLS
(Superseded to 515070001)

$26.99

$

In Stock, Qty 12

0

74

RedMax 516109801

SCREW, M5x8 (RPL
(Superseded to 510478101)

$4.99

$

In Stock, Qty 9

0
