SGCZ 2460 S - RedMax Reciprocator Trimmer (SN: 00100101 & Above) (2010-04) 004 - ENGINE UNIT Parts Diagram

Reciprocator Trimmer

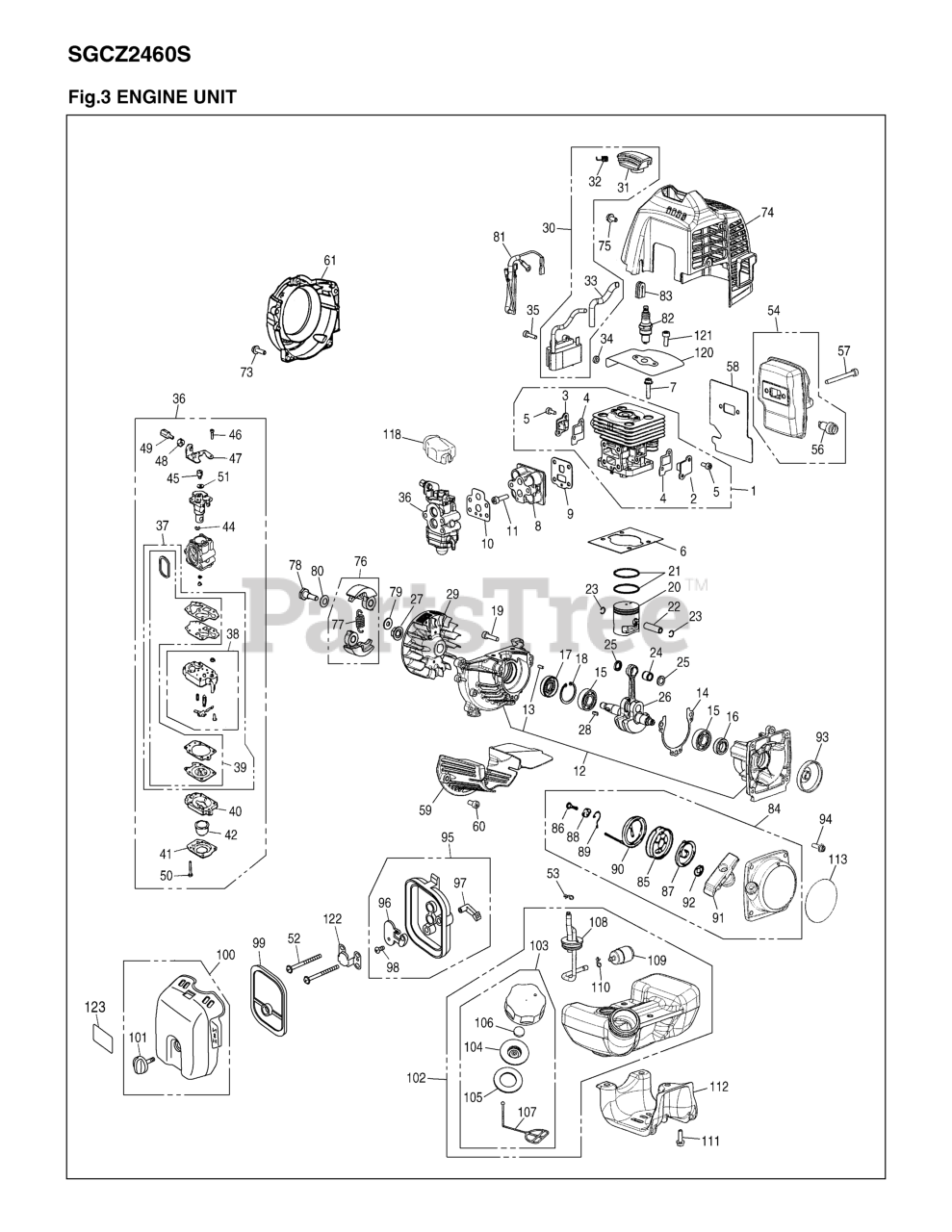

004 - ENGINE UNIT Parts Diagram

  • Title

1

RedMax 528052101

CYLINDER COMP

$101.99

$

In Stock, only 2 left!

0

2

RedMax 506654101

COVER, TR-S

$5.99

$

Usually ships in 3-10 days

0

3

RedMax 506654201

COVER, TR-F

$6.99

$

Usually ships in 3-10 days

0

4

RedMax 506654301

GASKET, TR

$4.99

$

In Stock, only 3 left!

0

5

RedMax 521515601

BOLT
(Superseded to 504119201)

$3.99

$

In Stock, only 2 left!

0

6

RedMax 521751901

GASKET, BASE

$3.49

$

In Stock, Qty 7

0

7

RedMax 521345201

BOLT
(Superseded to 506616001)

$4.99

$

In Stock, only 3 left!

0

8

RedMax 511349701

INSULATOR

$14.99

$

In Stock, only 3 left!

0

9

RedMax 511350001

INSULATOR GASKET
(Superseded to 593136001)

$5.99

$

In Stock, Qty 17

0

10

RedMax 506654801

GASKET, CARB
(Superseded to 521755001)

$4.99

$

In Stock, Qty 20+

0

11

RedMax 506689001

BOLT, TORX

$4.99

$

In Stock, only 4 left!

0

12

RedMax 521752701

CRANKCASE-C
(Superseded to 512325801)

$179.99

$

Usually ships in 3-10 days

0

13

RedMax 516762801

PIN
(Superseded to 505296101)

$

$

Not available

14

RedMax 506684801

GASKET, CASE

$3.99

$

In Stock, Qty 12

0

15

RedMax 523071701

BEARING MAIN
(Superseded to 506610301)

$10.99

$

In Stock, only 3 left!

0

16

RedMax 521340001

SEAL
(Superseded to 504121501)

$9.49

$

In Stock, Qty 20+

0

17

RedMax 516539201

SEAL, OIL (RPLS
(Superseded to 506612901)

$3.49

$

In Stock, Qty 6

0

18

RedMax 506609901

RING

$3.99

$

In Stock, only 4 left!

0

19

RedMax 521345401

BOLT (RPLS 28501
(Superseded to 506689001)

$4.99

$

In Stock, only 4 left!

0

20

RedMax 528052301

PISTON

$41.99

$

Usually ships in 3-10 days

0

21

RedMax 506618101

RING, PISTON

$8.49

$

In Stock, Qty 20+

0

22

RedMax 516385601

PIN, PISTON
(Superseded to 505040701)

$7.49

$

In Stock, only 2 left!

0

23

RedMax 516255701

RING, SNAP (RPLS
(Superseded to 505045201)

$2.49

$

In Stock, only 3 left!

0

24

RedMax 506685001

BEARING

$7.99

$

In Stock, Qty 5

0

25

RedMax 516181201

WASHER
(Superseded to 505041001)

$2.49

$

Usually ships in 3-10 days

0

26

RedMax 528058401

CRANKSHAFT-C

$250.99

$

Usually ships in 3-10 days

0

27

RedMax 516437401

NUT (RPLS 1140-4

$

$

Not available

28

RedMax 516147801

KEY
(Superseded to 506689401)

$3.49

$

In Stock, Qty 20+

0

29

RedMax 574763401

ROTOR

$53.99

$

Usually ships in 3-10 days

0

30

RedMax 574763201

COIL ASSY

$131.99

$

In Stock, only 1 left!

0

31

RedMax 521610001

CAP(RPLS 4810721

$8.49

$

In Stock, only 2 left!

0

32

RedMax 506655201

SPRING

$3.99

$

In Stock, Qty 5

0

33

RedMax 506618201

TUBE

$3.49

$

In Stock, only 1 left!

0

34

RedMax 516258101

SPACER

$3.99

$

In Stock, only 2 left!

0

35

RedMax 521346901

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 11

0

36

RedMax 575459001

CARBURETOR ASSY

$79.99

$

In Stock, only 1 left!

0

37

RedMax 528070101

REBUILD KIT

$79.99

$

In Stock, Qty 20+

0

38

RedMax 516543601

BODY, PUMP
(Superseded to 502238401)

$51.99

$

In Stock, only 2 left!

0

39

RedMax 525313101

GASKET KIT
(Superseded to 583983301)

$59.99

$

In Stock, only 1 left!

0

40

RedMax 516543801

BODY, PURGE

$9.49

$

In Stock, only 2 left!

0

41

RedMax 516543901

COVER, PUMP

$5.99

$

In Stock, Qty 6

0

42

RedMax 516525801

PUMP, PRIMING
(Superseded to 505306701)

$9.99

$

In Stock, Qty 20+

0

44

RedMax 516523601

RING
(Superseded to 506738601)

$

$

Not available

45

RedMax 516597701

SWIVEL

$

$

Not available

46

RedMax 516528701

SCREW

$

$

Not available

47

RedMax 521359901

BRACKET

$5.99

$

Usually ships in 3-10 days

0

48

RedMax 516524101

NUT
(Superseded to 510487401)

$3.99

$

In Stock, Qty 9

0

49

RedMax 516617201

SCREW
(Superseded to 521756001)

$3.99

$

In Stock, Qty 9

0

50

RedMax 516544001

SCREW
(Superseded to 506741101)

$3.99

$

In Stock, Qty 12

0

51

RedMax 521360401

WASHER
(Superseded to 506746101)

$

$

Not available

52

RedMax 521515501

BOLT TORX

$2.49

$

Usually ships in 3-10 days

0

53

RedMax 516624801

CLIP
(Superseded to 506741501)

$3.49

$

Usually ships in 3-10 days

0

54

RedMax 521613501

MUFFLER

$9.99

$

In Stock, only 3 left!

0

56

RedMax 521338301

ARRESTER
(Superseded to 506615601)

$7.49

$

In Stock, only 3 left!

0

57

RedMax 521345501

BOLT
(Superseded to 504116501)

$2.49

$

In Stock, Qty 10

0

58

RedMax 511350401

GASKET, MUFFLER

$3.99

$

In Stock, only 3 left!

0

59

RedMax 506629601

PLATE

$11.99

$

Usually ships in 3-10 days

0

60

RedMax 521345301

BOLT
(Superseded to 504119601)

$3.99

$

In Stock, only 3 left!

0

61

RedMax 511354501

COVER

$

$

Not available

73

RedMax 521347901

BOLT
(Superseded to 515391301)

$2.49

$

In Stock, Qty 5

0

74

RedMax 511350501

COVER, ENGINE

$15.99

$

In Stock, Qty 9

0

75

RedMax 521515901

BOLT (RPLS T4950

$3.49

$

Usually ships in 3-10 days

0

76

RedMax 512328301

SHOE COMP

$33.99

$

In Stock, only 1 left!

0

77

RedMax 521346701

SPRING
(Superseded to 515389301)

$4.99

$

In Stock, Qty 7

0

78

RedMax 516207901

BOLT
(Superseded to 513189601)

$3.49

$

In Stock, Qty 9

0

79

RedMax 516207701

WASHER
(Superseded to 505054401)

$3.49

$

Usually ships in 3-10 days

0

80

RedMax 516207801

WASHER (RPLS 114
(Superseded to 513189501)

$3.99

$

Usually ships in 3-10 days

0

81

RedMax 521753801

CORD COMP.
(Superseded to 512328601)

$11.99

$

Usually ships in 3-10 days

0

82

RedMax 528074001

SPARKPLUG

$5.99

$

In Stock, Qty 20+

0

83

RedMax 521342501

GROMMET
(Superseded to 506615901)

$2.49

$

In Stock, only 2 left!

0

84

RedMax 521753901

RECOIL-A
(Superseded to 512328801)

$59.99

$

In Stock, Qty 20+

0

85

RedMax 521326701

REEL
(Superseded to 504114701)

$14.99

$

In Stock, Qty 20+

0

86

RedMax 521326801

SCREW
(Superseded to 515367101)

$2.49

$

In Stock, Qty 5

0

87

RedMax 516541701

SPRING, SPIRAL
(Superseded to 521326701)

$13.99

$

In Stock, Qty 20+

0

88

RedMax 521327001

COLLAR
(Superseded to 504114601)

$5.99

$

In Stock, Qty 10

0

89

RedMax 521327101

ARM
(Superseded to 504114801)

$5.99

$

In Stock, Qty 10

0

90

RedMax 521342801

ROPE (RPLS 45007
(Superseded to 504114901)

$7.99

$

In Stock, only 2 left!

0

91

RedMax 521025501

KNOB (RPLS 3330-
(Superseded to 506614701)

$7.49

$

Usually ships in 3-10 days

0

92

RedMax 521342901

PLATE, STOPPER
(Superseded to 515385601)

$3.49

$

In Stock, only 1 left!

0

93

RedMax 521327201

PULLEY
(Superseded to 504114401)

$7.49

$

In Stock, Qty 5

0

94

RedMax 521346501

BOLT, TORX
(Superseded to 506745601)

$3.99

$

In Stock, Qty 20+

0

95

RedMax 528074901

CLEANER BODY ASS

$17.99

$

Usually ships in 3-10 days

0

96

RedMax 528074301

PLATE, CHOKE

$5.99

$

Usually ships in 3-10 days

0

97

RedMax 528074401

LEVER

$4.99

$

In Stock, only 2 left!

0

98

RedMax 521740901

SCREW
(Superseded to 506673801)

$3.99

$

Usually ships in 3-10 days

0

99

RedMax 528074701

ELEMENT
(Superseded to 587930701)

$11.99

$

In Stock, Qty 20+

0

100

RedMax 575832701

COVER ASSY
(Superseded to 575331103)

$14.99

$

In Stock, Qty 20+

0

101

RedMax 528074601

CLEANER KNOB

$5.99

$

Usually ships in 3-10 days

0

102

RedMax 528050101

TANK ASSY
(Superseded to 581493301)

$33.99

$

Usually ships in 3-10 days

0

103

RedMax 521732201

CAP ASSY
(Superseded to 505309601)

$14.99

$

In Stock, Qty 7

0

104

RedMax 521329501

HOLDER (RPLS 450
(Superseded to 515369401)

$6.99

$

Usually ships in 3-10 days

0

105

RedMax 521329301

PACKING
(Superseded to 506744301)

$3.49

$

In Stock, Qty 8

0

106

RedMax 521377101

FILTER
(Superseded to 506746801)

$3.49

$

In Stock, only 2 left!

0

107

RedMax 521347801

STOPPER
(Superseded to 506745801)

$3.99

$

Usually ships in 3-10 days

0

108

RedMax 521754601

PIPE-C
(Superseded to 579138307)

$

$

Not available

109

RedMax 525313601

FILTER
(Superseded to 506614601)

$

$

Not available

110

RedMax 516262101

CLIP (RPLS 28413
(Superseded to 506707001)

$3.99

$

In Stock, Qty 16

0

111

RedMax 521347901

BOLT
(Superseded to 515391301)

$2.49

$

In Stock, Qty 5

0

112

RedMax 521753101

GUARD, TANK
(Superseded to 512326501)

$

$

Not available

113

RedMax 528052501

LABEL, RECOIL

$4.99

$

In Stock, only 2 left!

0

118

RedMax 521327901

COVER
(Superseded to 506744201)

$5.99

$

In Stock, Qty 11

0

120

RedMax 511349501

PLATE

$

$

Not available

121

RedMax 521345301

BOLT
(Superseded to 504119601)

$3.99

$

In Stock, only 3 left!

0

122

RedMax 575750401

PLATE

$2.49

$

In Stock, only 1 left!

0

123

RedMax 523071401

LABEL

$3.99

$

In Stock, only 1 left!

0
