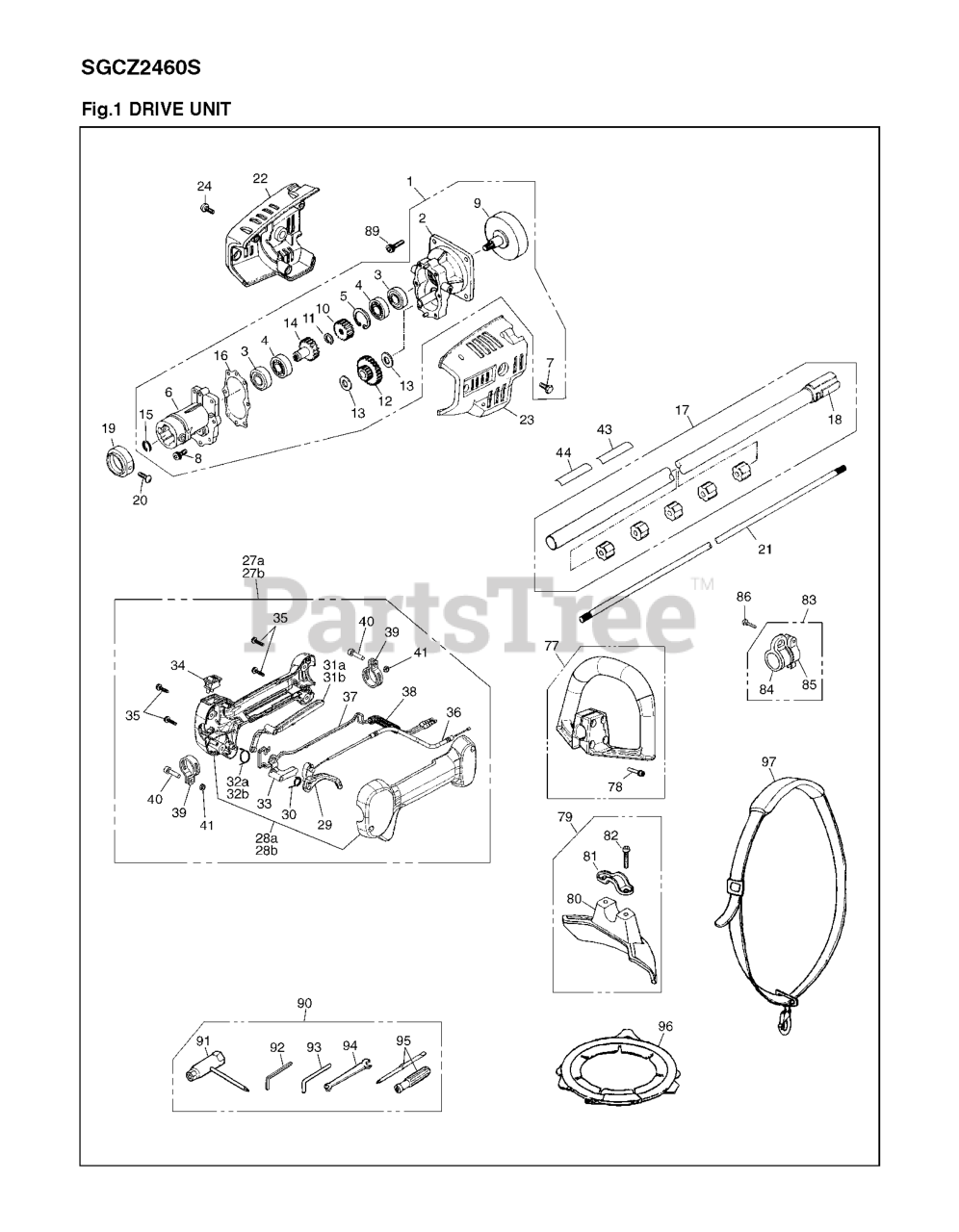

SGCZ 2460 S - RedMax Reciprocator Trimmer (SN: 00100101 & Above) (2012-08) DRIVE Parts Diagram

Reciprocator Trimmer

DRIVE Parts Diagram

  • Title

1

RedMax 570919501

MISSION ASSY

Note: INCL 2 THRU 16

$363.99

$

Usually ships in 3-10 days

0

2

RedMax 521236901

CASE,REAR COMP(RPLS 3805-11101

$145.99

$

Usually ships in 3-10 days

0

3

RedMax 529269801

BEARING

$12.99

$

In Stock, only 2 left!

0

4

RedMax 516127901

BEARING

$10.99

$

Usually ships in 3-10 days

0

5

RedMax 506609901

RING

$4.99

$

In Stock, only 1 left!

0

6

RedMax 515063201

CASE(F)

$84.99

$

Usually ships in 3-10 days

0

7

RedMax 510453101

BOLT

$3.99

$

Usually ships in 3-10 days

0

8

RedMax 506609301

BOLT
(Superseded to 516070801)

$6.49

$

In Stock, Qty 15

0

9

RedMax 515063401

DRUM

$93.99

$

Usually ships in 3-10 days

0

10

RedMax 515063501

GEAR

$27.99

$

In Stock, only 1 left!

0

11

RedMax 514128201

RING

$4.99

$

In Stock, Qty 6

0

12

RedMax 515063601

GEAR

$40.99

$

Usually ships in 3-10 days

0

13

RedMax 506614201

WASHER

$6.49

$

In Stock, only 4 left!

0

14

RedMax 515063801

GEAR

$91.99

$

Usually ships in 3-10 days

0

15

RedMax 514121301

RING
(Superseded to 516124101)

$4.99

$

In Stock, only 1 left!

0

16

RedMax 515064101

GASKET

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 521238501

PIPE COMP (RPLS 380512100)

$133.99

$

Usually ships in 3-10 days

0

18

RedMax 515064901

CUSHION

$13.99

$

Usually ships in 3-10 days

0

19

RedMax 514381901

CAP

$6.49

$

Usually ships in 3-10 days

0

20

RedMax 510481801

SCREW

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 515065001

SHAFT

$72.99

$

Usually ships in 3-10 days

0

22

RedMax 515064201

COVER-R

$

$

Not available

23

RedMax 515064301

COVER(L)

$

$

Not available

24

RedMax 513495601

SCREW

$

$

Not available

27

RedMax 574390401

GRIP ASSY
(Superseded to 574390402)

Note: UP TO SN11299999

$84.99

$

In Stock, only 1 left!

0

27

RedMax 574390402

GRIP ASSY

Note: FROM SN20400101

$84.99

$

In Stock, only 1 left!

0

28

RedMax 576475201

GRIP HALF SET
(Superseded to 576475202)

Note: UP TO SN11299999

$31.99

$

Usually ships in 3-10 days

0

28

RedMax 576475202

GRIP HALF SET

Note: FROM SN20400101

$31.99

$

Usually ships in 3-10 days

0

29

RedMax 529258801

LEVER, THROTTLE

$7.49

$

In Stock, only 4 left!

0

30

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 3 left!

0

31

RedMax 529259001

LEVER FOR GRIP (RPLS -0600)
(Superseded to 578778001)

Note: UP TO SN11299999

$3.99

$

In Stock, only 1 left!

0

31

RedMax 578778001

LEVER, SAFETY

Note: FROM SN20400101

$3.99

$

In Stock, only 1 left!

0

32

RedMax 574390801

SPRING JOINT

Note: UP TO SN11299999

$3.99

$

In Stock, only 3 left!

0

32

RedMax 511591801

SPRING

Note: FROM SN20400101

$3.99

$

In Stock, only 3 left!

0

33

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

34

RedMax 521851601

SWITCH

$10.99

$

In Stock, Qty 12

0

35

RedMax 521517701

SCREW

$4.99

$

In Stock, Qty 5

0

36

RedMax 529257501

THROTTLE CABLE

$10.99

$

Usually ships in 3-10 days

0

37

RedMax 529256201

CORD

$

$

Not available

38

RedMax 515402101

$

$

Not available

39

RedMax 529259401

BAND

$10.99

$

Usually ships in 3-10 days

0

40

RedMax 504114301

BOLT

$6.49

$

In Stock, Qty 12

0

41

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

Usually ships in 3-10 days

0

43

RedMax 576119101

LABEL
(Superseded to 580261116)

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 510962901

LABEL CAUTON FOR BC

$7.49

$

Usually ships in 3-10 days

0

77

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

$34.99

$

In Stock, Qty 5

0

78

RedMax 521863101

SCREW

$4.99

$

In Stock, Qty 17

0

79

RedMax 521197701

GUARD ASSY (RPLS 3565-24000)

$34.99

$

Usually ships in 3-10 days

0

80

RedMax 514383601

GUARD

$15.99

$

Usually ships in 3-10 days

0

81

RedMax 514346001

CLAMP

$

$

Not available

82

RedMax 514363501

BOLT

$4.99

$

In Stock, only 2 left!

0

83

RedMax 521822101

HANGER COMP.

$

$

Not available

84

RedMax 521822201

HANGER
(Superseded to 521822101)

$

$

Not available

85

RedMax 521822301

$

$

Not available

86

RedMax 521515301

SCREW

$4.99

$

Usually ships in 3-10 days

0

89

RedMax 505312401

BOLT

$3.99

$

Usually ships in 3-10 days

0

90

RedMax 510959101

TOOL SET

$

$

Not available

91

RedMax 510960201

SOCKET

$8.49

$

Usually ships in 3-10 days

0

92

RedMax 505311901

WRENCH

$

$

Not available

93

RedMax 516144701

Wrench Tool

$4.99

$

Usually ships in 3-10 days

0

94

RedMax 506615001

SPANNER

$7.49

$

In Stock, Qty 10

0

95

RedMax 506689501

DRIVER

$7.99

$

Usually ships in 3-10 days

0

96

RedMax 521664101

COVER BLADE
(Superseded to 515557601)

$7.49

$

In Stock, only 4 left!

0

97

RedMax 510997801

STRAP ASSY

$40.99

$

Usually ships in 3-10 days
