SGT 18H46 C - Weed Eater Lawn Tractor (2001) Chassis Parts Diagram

Lawn Tractor

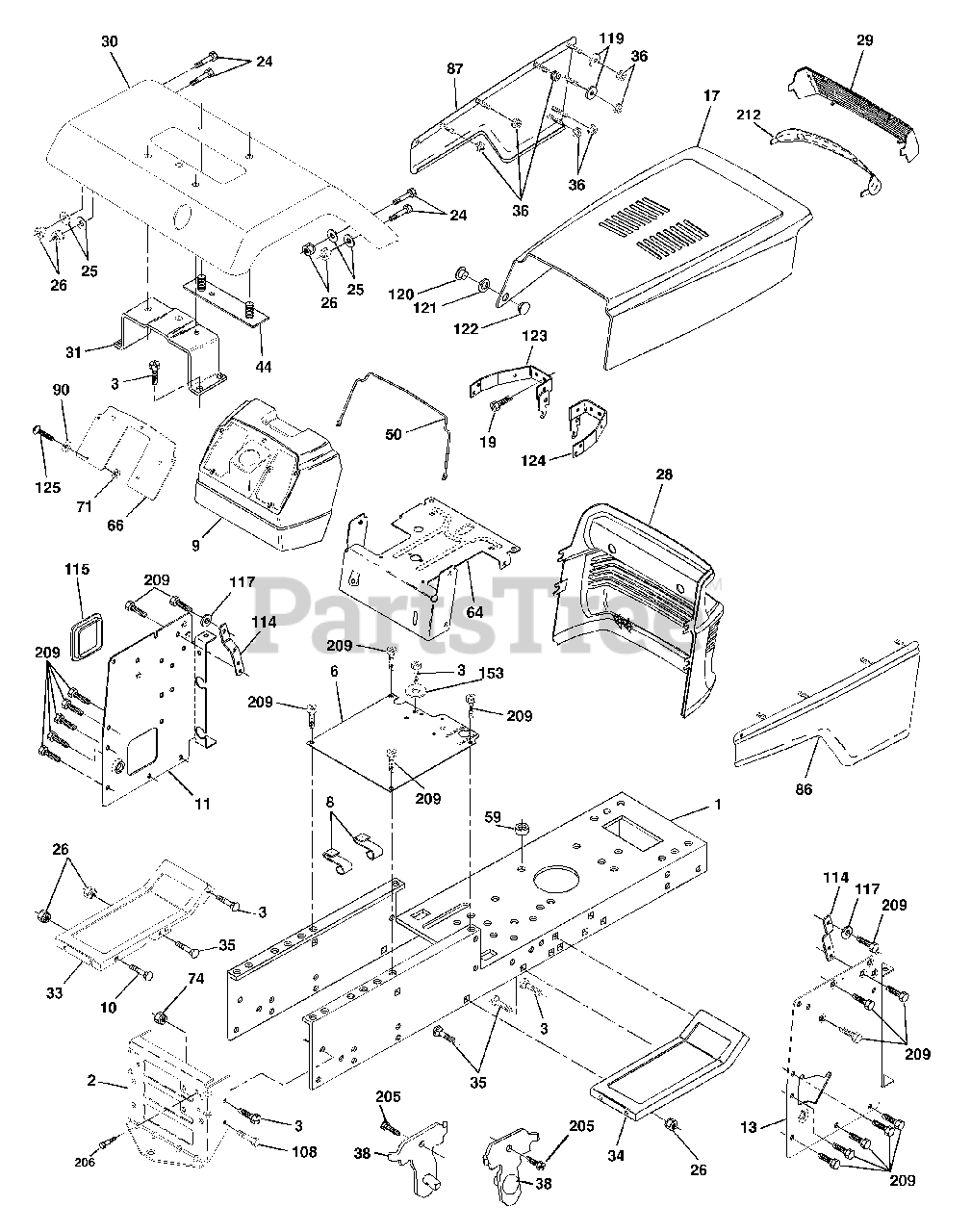

Chassis Parts Diagram

  • Title

1

Electrolux/AYP 174620

Chassis
(Superseded to 532174620)

$

$

Not available

2

Electrolux/AYP 176554

Drawbar
(Superseded to 532176554)

$47.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 155923

Saddle Flat Lt
(Superseded to 532155923)

$

$

Not available

8

Electrolux/AYP 126471X

Clip Insulator
(Superseded to 532126471)

$

$

Not available

9

Electrolux/AYP 170119

Dash

$

$

Not available

10

Murray 72140608

Bolt Rd Hd Sqnk. 3/8-16 Unc x 1

$

$

Not available

11

Electrolux/AYP 159954

Panel Dash Lh

$

$

Not available

13

Electrolux/AYP 159953

Panel Dash Rh

$21.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 136673X550

Hood

$77.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 164863

Screw Hwhd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$21.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5
(Superseded to 874780616)

$

$

Not available

25

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$7.49

$

In Stock, Qty 15

0

26

Electrolux/AYP 73800600

Nut Lock Hex w/Insert 3/8-16 UNC
(Superseded to 873680600)

$

$

Not available

28

Electrolux/AYP 136375

Grill / Lens Asm
(Superseded to 532136375)

$

$

Not available

29

Electrolux/AYP 136374X599

Lens Grille
(Superseded to 532136374)

$

$

Not available

30

Electrolux/AYP 167270X550

Fender Asm YTGT

$88.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 175315

Bracket Fender
(Superseded to 532183569)

$28.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 145244X550

Footrest Pnt. Lh
(Superseded to 532182874)

$

$

Not available

34

Electrolux/AYP 145243X550

Footrest Pnt. Rh
(Superseded to 179717X550)

$11.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110606

Bolt Rd Hd Sht. Sqnk. 3/8-16 x 3/4
(Superseded to 872110606)

$

$

Not available

36

Electrolux/AYP 108067X

Nut Pal
(Superseded to 532108067)

$

$

Not available

38

Electrolux/AYP 175710

Bracket Asm Pivot Mower Rear
(Superseded to 532175710)

$

$

Not available

44

Electrolux/AYP 140675

Strap Asm Fender
(Superseded to 532140675)

$

$

Not available

50

Electrolux/AYP 137304

Rod Support Hood

$

$

Not available

59

Electrolux/AYP 110436X

Bushing Snap Split

$

$

Not available

64

Electrolux/AYP 170259

Dash Lower
(Superseded to 583037501)

$

$

Not available

66

Electrolux/AYP 169261X010

Plate Dash Slkscr.

$

$

Not available

71

Electrolux/AYP 73640400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available

74

Electrolux/AYP 73680600

Nut Crownlock 3/8-16 Unc
(Superseded to 873680600)

$

$

Not available

86

Electrolux/AYP 136670X550

Panel Asm. Pnt. Side Rh

$12.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 136671X550

Panel Asm. Pnt. Side Lh

$12.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 19091216

Washer 9/32 x 3/4 x 16 Ga.
(Superseded to 819091216)

$5.99

$

In Stock, Qty 20+

0

108

Electrolux/AYP 74780612

Bolt Fin Hex 3/8-16 Unc x 3/4
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

114

Electrolux/AYP 145349

Bracket Support Dash
(Superseded to 532145349)

$

$

Not available

115

Electrolux/AYP 121794X

Cover Access
(Superseded to 532121794)

$

$

Not available

117

Electrolux/AYP 144283

Washer Serrated Disc 13/32 x 1
(Superseded to 532144283)

$

$

Not available

119

Electrolux/AYP 19092016

Washer 9/32 x 1-1/4 x 16 Ga.
(Superseded to 819092016)

$7.49

$

Usually ships in 3-10 days

0

120

Electrolux/AYP 137271

Rivet Ratchet Female
(Superseded to 532137271)

$

$

Not available

121

Electrolux/AYP 137269

Washer Nylon
(Superseded to 532137269)

$

$

Not available

122

Electrolux/AYP 137270

Rivet Ratchet Male
(Superseded to 537137270)

$

$

Not available

123

Electrolux/AYP 157105

Bracket Asm. Pivot Hood Lh

$

$

Not available

124

Electrolux/AYP 157107

Bracket Asm. Pivot Hood Rh

$

$

Not available

125

Electrolux/AYP 74180412

Screw Mach Cr. 1/4-20 x 3/4
(Superseded to 874180412)

$4.99

$

In Stock, only 2 left!

0

153

Electrolux/AYP 19132203

Washer 13/32 x 1-3/8 x 3 Ga.
(Superseded to 819132203)

$5.99

$

In Stock, only 2 left!

0

205

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$

$

Not available

206

Electrolux/AYP 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, Qty 20+

0

209

Electrolux/AYP 17000612

Screw Hex wsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

212

Electrolux/AYP 156144

Insert Lens Reflector

$

$

Not available
