SGX3500 (RGR35023020) - Subaru Robin Generator 2400 Control Box Parts Diagram

Generator

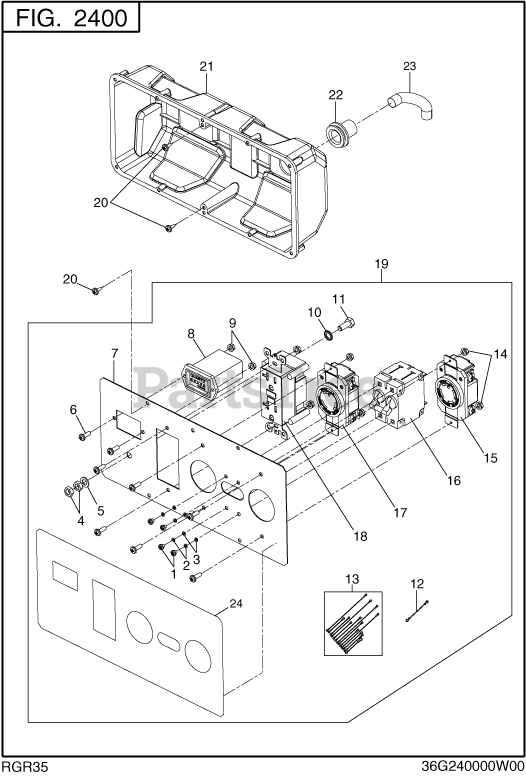

2400 Control Box Parts Diagram

  • Title

1

Subaru Robin RGRGBT818S3

SCREW

$0.99

$

Usually ships in 2-12 days

0

2

Subaru Robin RGRGBT971W3

WASHER FLAT

$0.99

$

Usually ships in 2-12 days

0

3

Subaru Robin RGRGB93WL3

WASHER LOCK

$0.99

$

Usually ships in 2-12 days

0

4

Subaru Robin RGR678810002

NUT HEX

$0.99

$

Usually ships in 2-12 days

0

5

Subaru Robin RGRGBT971W6

WASHER FLAT

$0.99

$

Usually ships in 2-12 days

0

6

Subaru Robin RGRGBT818S4

SCREW

$0.99

$

Usually ships in 2-12 days

0

7

RGR1015350001

FRONT PANEL

$

$

Not available

8

Subaru Robin RGR50010016

HOUR METER

$217.99

$

Usually ships in 2-12 days

0

9

Subaru Robin RGRGB6170N4

NUT HEX

$0.99

$

Usually ships in 2-12 days

0

10

Subaru Robin RGRGB8622WS6

WASHER STAR

$0.99

$

Usually ships in 2-12 days

0

11

Subaru Robin RGR661503011

BOLT HEX

$0.99

$

Usually ships in 2-12 days

0

12

Subaru Robin RGR1010350001

WIRE ASSY

$2.99

$

Usually ships in 2-12 days

0

13

Subaru Robin RGR50010005

PANEL WIRE ASSY

$59.99

$

Usually ships in 2-12 days

0

14

Subaru Robin RGR50010017

NUT HEX FLANGE

$0.99

$

Usually ships in 2-12 days

0

15

Subaru Robin RGR50010013

RECEPTACLE

$64.99

$

Usually ships in 2-12 days

0

16

Subaru Robin RGR50010015

CIRCUIT BREAKER

$301.99

$

Usually ships in 2-12 days

0

18

Subaru Robin RGR50010012

RECEPTACLE GFCI

$99.99

$

Usually ships in 2-12 days

0

19

Subaru Robin RGR50010002

FR.CONTROL BOX ASSY

$557.99

$

Usually ships in 2-12 days

0

20

Subaru Robin RGR660598001

TAPPING SCREW

$0.99

$

Usually ships in 2-12 days

0

21

Subaru Robin RGR50010003

BA.CONTROL BOX

$101.99

$

Usually ships in 2-12 days

0

22

Subaru Robin RGR50010018

WIRE PROTECT SLEEVE

$17.99

$

In Stock, only 1 left!

0

23

RGR1033350001

CORRUGATED PIPE

$

$

Not available

24

RGR1011350101

LABEL POWER-OUTLET

$

$

Not available
