SGX5000 (RGH50053000) - Subaru Robin Generator 2200 Generator Parts Diagram

Generator

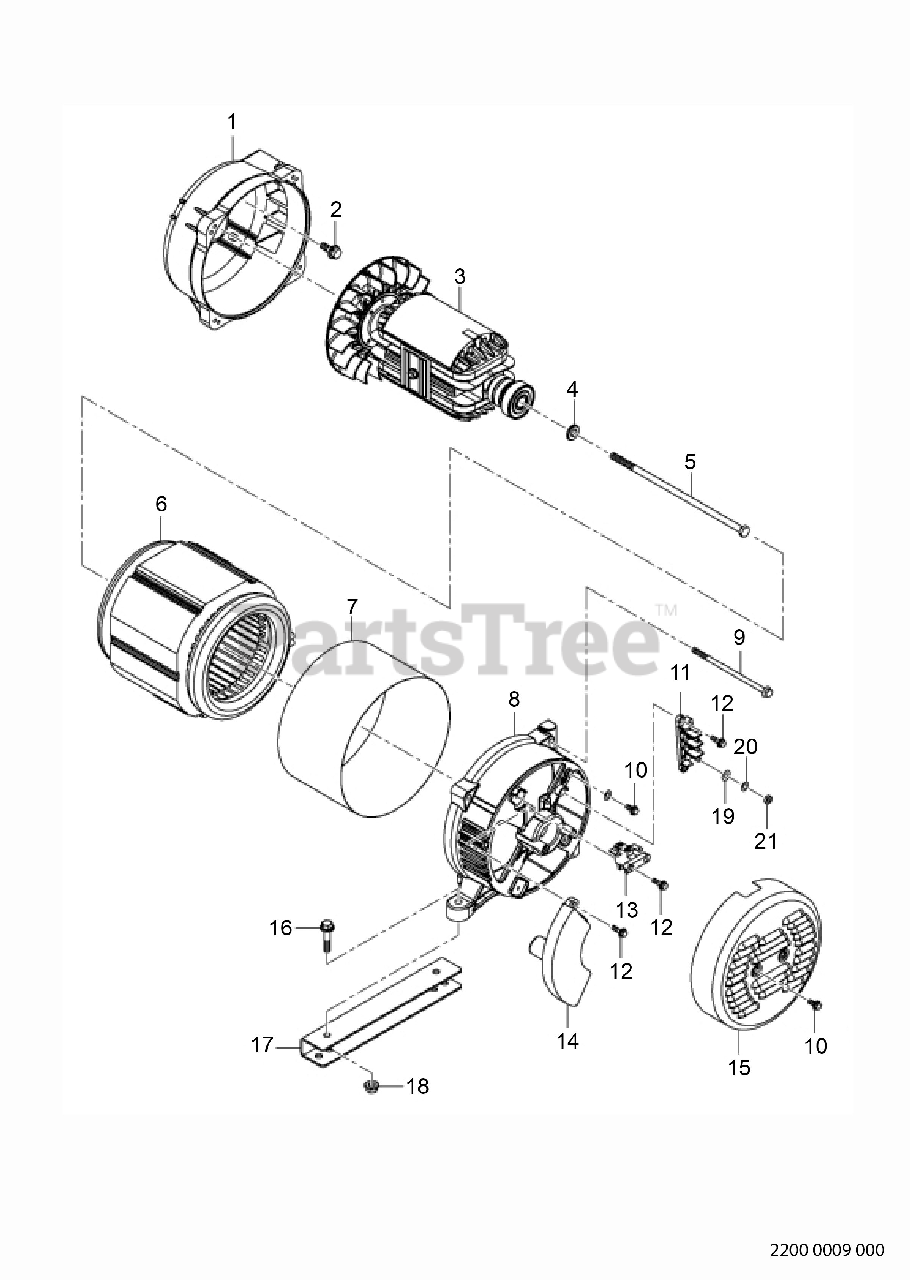

2200 Generator Parts Diagram

  • Title

1

37FF42H7131A2

FRONT BRACKET

$

$

Not available

2

Subaru Robin 37D9010508881

BOLT M8X20

$

$

Currently unavailable

3

37FF42H716000

ROTOR AY

$

$

Not available

4

Subaru Robin 37G9290210300

SPING WASHER

$

$

Currently unavailable

5

Subaru Robin 37G9702810260

BOLT

Note: M10X260

$

$

Currently unavailable

6

37FF42H715010

STATOR AY

$

$

Not available

7

37FF42H715300

STATOR COVER

$

$

Not available

8

37FF29H713121

REAR BRACKET

$

$

Not available

9

37F9582206160

BOLT

Note: M6X160

$

$

Not available

10

Subaru Robin 37D9580205012

BOLT

Note: M5X12

$

$

Currently unavailable

11

37DF24H722000

BASE

$

$

Not available

12

Subaru Robin 37E9580205016

BOLT

Note: M5X16

$

$

Currently unavailable

13

Subaru Robin 37EF29TS00100

BRUSH

$15.99

$

Usually ships in 2-12 days

0

14

37FF42H722A00

AVR

$

$

Not available

15

Subaru Robin 37EF29H717400

END COVER

$

$

Currently unavailable

16

37F9580208035

FLANGE BOLT

Note: M8X35

$

$

Not available

17

37FF42F419F00

MOUNT BASE

$

$

Not available

18

37D9570208500

NUT FLANGE

Note: M8

$

$

Not available

19

37E9290205200

WASHER

$

$

Not available

20

37E9290205100

SPRING WASHER

$

$

Not available

21

37E9530205600

NUT

$

$

Not available
