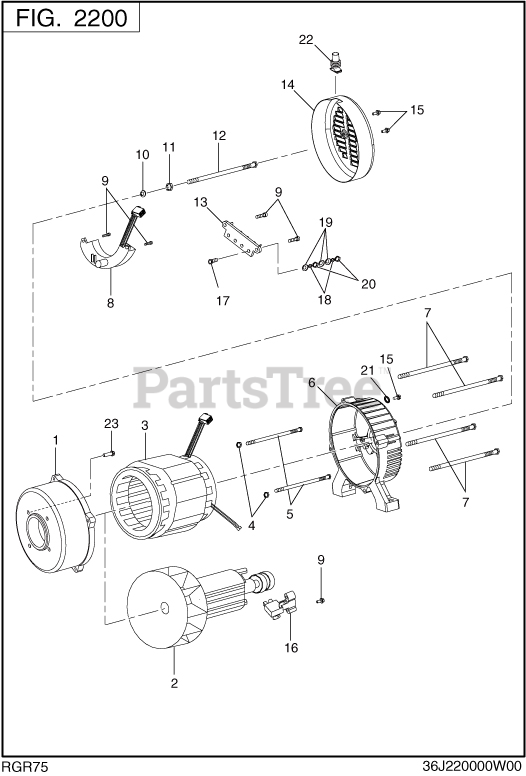

SGX7500 (RGR75023020) - Subaru Robin Generator 2200 Generator Parts Diagram

Generator

2200 Generator Parts Diagram

  • Title

1

Subaru Robin RGR40020004

ENGINE ADAPTOR

$84.99

$

Usually ships in 2-12 days

0

2

Subaru Robin RGR40030002

ROTOR ASSY

$681.99

$

Usually ships in 2-12 days

0

3

Subaru Robin RGR40030003

STATOR ASSY

$835.99

$

Usually ships in 2-12 days

0

4

RGRGBT8891NF5

NUT HEX FLANGE

$

$

Not available

5

Subaru Robin RGRGB5782B52

BOLT HEX

$6.49

$

Usually ships in 2-12 days

0

6

Subaru Robin RGR40010005

BEARING ADAPTOR

$130.99

$

Usually ships in 2-12 days

0

7

Subaru Robin RGRGB16674BF63

BOLT HEX FLANGE

$6.49

$

Usually ships in 2-12 days

0

8

Subaru Robin RGR40030005

AVR

$453.99

$

Usually ships in 2-12 days

0

9

Subaru Robin RGRGB5789BF516

BOLT HEX FLANGE

$0.99

$

Usually ships in 2-12 days

0

10

Subaru Robin RGRGBT971W10

WASHER FLAT

$0.99

$

Usually ships in 2-12 days

0

11

Subaru Robin RGRGB93WL10

WASHER LOCK

$0.99

$

Usually ships in 2-12 days

0

12

Subaru Robin RGR40030004

BOLT HEX

$3.99

$

Usually ships in 2-12 days

0

13

Subaru Robin RGR40010009

WIRING BOARD ASSY

$17.99

$

Usually ships in 2-12 days

0

14

Subaru Robin RGR40010006

MOTOR COVER

$60.99

$

Usually ships in 2-12 days

0

15

Subaru Robin RGRGB5789B58

BOLT HEX FLANGE

$0.99

$

Usually ships in 2-12 days

0

16

Subaru Robin RGR40010007

BRUSH

$60.99

$

In Stock, only 1 left!

0

17

Subaru Robin RGRGB5789BF520

BOLT HEX FLANGE

$0.99

$

Usually ships in 2-12 days

0

18

Subaru Robin RGRGB93WL5

WASHER LOCK

$0.99

$

Usually ships in 2-12 days

0

19

Subaru Robin RGRGBT971W5

WASHER FLAT

$0.99

$

Usually ships in 2-12 days

0

20

Subaru Robin RGRGB6170N5

NUT HEX

$0.99

$

Usually ships in 2-12 days

0

21

Subaru Robin RGRGB8622WS5

WASHER STAR

$0.99

$

Usually ships in 2-12 days

0

22

Subaru Robin RGR5001008

RUBBER SLEEVE

$4.49

$

Usually ships in 2-12 days

0

23

Subaru Robin RGR660596002

BOLT HEX FLANGE

$2.99

$

Usually ships in 2-12 days

0
