SGX7500 (RGR75023020) - Subaru Robin Generator 2300 Pipe Frame Parts Diagram

Generator

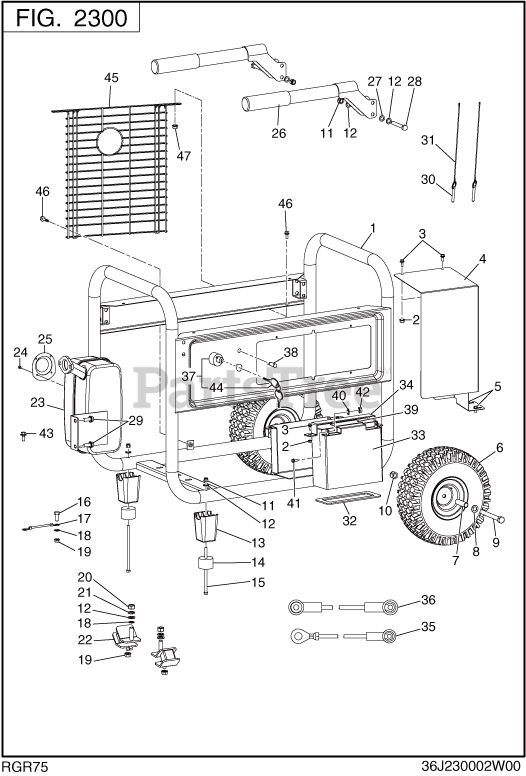

2300 Pipe Frame Parts Diagram

  • Title

1

Subaru Robin RGR30030001

CARRIER ASSY

$517.99

$

Usually ships in 2-12 days

0

2

Subaru Robin RGR325491002

NUT HEX FLANGE

$0.99

$

Usually ships in 2-12 days

0

3

Subaru Robin RGRGB166741BF5

BOLT HEX FLANGE

$0.99

$

Usually ships in 2-12 days

0

4

Subaru Robin RGR30020014

HEATSHIELD

$67.99

$

Usually ships in 2-12 days

0

5

Subaru Robin RGRGB158564SF4

TAPPING SCREW

$0.99

$

Usually ships in 2-12 days

0

6

Subaru Robin RGR310223001

WHEEL

$95.99

$

Usually ships in 2-12 days

0

7

Subaru Robin RGR638498001

SPACER

$1.99

$

Usually ships in 2-12 days

0

8

Subaru Robin RGRGBT971W10

WASHER FLAT

$0.99

$

Usually ships in 2-12 days

0

9

Subaru Robin RGR661558002

BOLT HH

$7.99

$

Usually ships in 2-12 days

0

10

Subaru Robin RGR678659001

NUT LOCK

$1.49

$

Usually ships in 2-12 days

0

11

Subaru Robin RGR678259003

NUT LOCK

$1.49

$

Usually ships in 2-12 days

0

12

Subaru Robin RGRGBT971W8

WASHER FLAT

$0.99

$

Usually ships in 2-12 days

0

13

Subaru Robin RGR80010012

PLASTIC FOOT

$16.99

$

Usually ships in 2-12 days

0

14

Subaru Robin RGR570355001

RUBBER FOOT

$26.99

$

Usually ships in 2-12 days

0

15

Subaru Robin RGR0501620115

BOLT HEX

$5.99

$

Usually ships in 2-12 days

0

16

Subaru Robin RGR661502005

BOLT HEX

$1.49

$

Usually ships in 2-12 days

0

17

Subaru Robin RGR290404001

ASSY WIRE GROUND

$4.99

$

Usually ships in 2-12 days

0

18

Subaru Robin RGRGB8622WS8

WASHER STAR

$0.99

$

Usually ships in 2-12 days

0

19

Subaru Robin RGR678145002

BOLT HEX

$1.49

$

Usually ships in 2-12 days

0

20

Subaru Robin RGR30020015

NUT HEX

$0.99

$

Usually ships in 2-12 days

0

21

Subaru Robin RGRGB93WL8

WASHER LOCK

$0.99

$

Usually ships in 2-12 days

0

22

Subaru Robin RGR30020007

ISOLATOR GENERATOR

$

$

Not available

23

Subaru Robin RGR30030011

MUFFLER ASSY

$421.99

$

Usually ships in 2-12 days

0

24

Subaru Robin RGR661306001

TAPPING SCREW

$0.99

$

Usually ships in 2-12 days

0

25

Subaru Robin RGR30010011

SPARK ARRESTOR

$52.99

$

Usually ships in 2-12 days

0

26

Subaru Robin RGR310224002

HANDLE ASSY

$60.99

$

Usually ships in 2-12 days

0

27

Subaru Robin RGR80010014

WASHER NYLON

$0.99

$

Usually ships in 2-12 days

0

28

Subaru Robin RGR660591004

BOLT HEX

$2.49

$

Usually ships in 2-12 days

0

29

Subaru Robin RGR660599002

BOLT HEX FLANGE

$0.99

$

Usually ships in 2-12 days

0

30

Subaru Robin RGR310712001

RELEASE PIN

$19.99

$

Usually ships in 2-12 days

0

31

Subaru Robin RGR310715001

LANYARD

$0.99

$

Usually ships in 2-12 days

0

32

Subaru Robin RGR7001002

GASKET

$7.99

$

Usually ships in 2-12 days

0

33

Subaru Robin RGR75040001

BATTERY

$212.99

$

Usually ships in 2-12 days

0

34

Subaru Robin RGR678714006

BRACKET

$37.99

$

Usually ships in 2-12 days

0

35

Subaru Robin RGR290419001

BATTERY CABLE

$25.99

$

Usually ships in 2-12 days

0

36

Subaru Robin RGR290418001

BATTERY CABLE

$19.99

$

Usually ships in 2-12 days

0

37

Subaru Robin RGR30030012

SWITCH

$125.99

$

Usually ships in 2-12 days

0

38

Subaru Robin 227-77002-00

LED LAMP AY

$47.99

$

Usually ships in 2-12 days

0

39

Subaru Robin RGR570630002

GASKET

$1.99

$

Usually ships in 2-12 days

0

40

Subaru Robin RGRGBT95W5

WASHER FLAT

$0.99

$

Usually ships in 2-12 days

0

41

Subaru Robin RGRGBT292B5

BOLT

$0.99

$

Usually ships in 2-12 days

0

42

Subaru Robin RGRGBT61771

NUT HEX FLANGE

$0.99

$

Usually ships in 2-12 days

0

43

Subaru Robin RGRGB5789BF616

BOLT HEX FLANGE

$0.99

$

Usually ships in 2-12 days

0

44

Subaru Robin RGR1036350001

KEY

$

$

Not available
