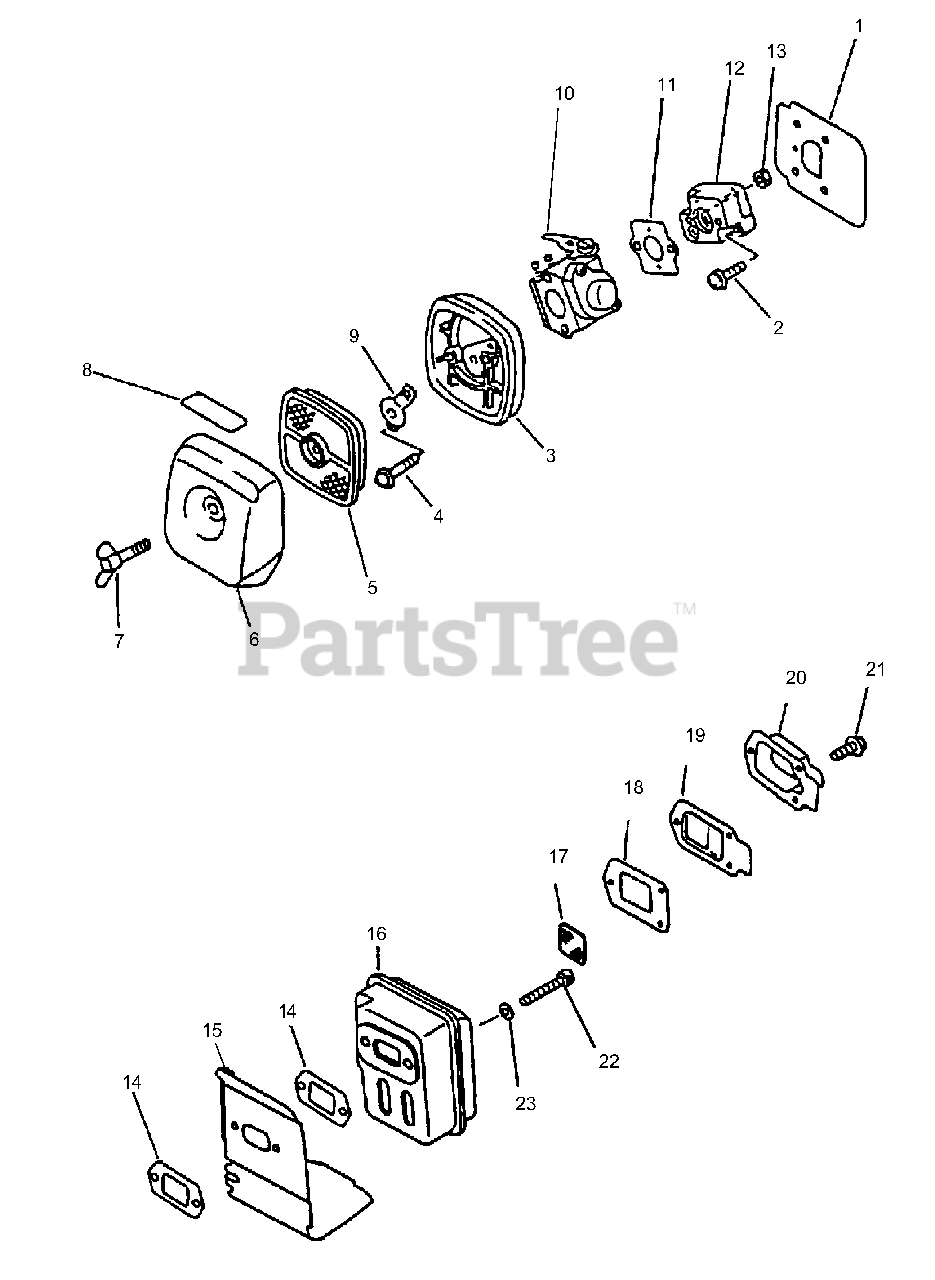

SHC-1700 - Echo Shaft Hedge Trimmer (Type 1) Intake, Air Cleaner, Exhaust Parts Diagram

Shaft Hedge Trimmer (Type 1)

Intake, Air Cleaner, Exhaust Parts Diagram

  • Title

1

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: INCLUDED IN GASKET KIT P/N 88900021462

$2.99

$

In Stock, Qty 12

0

2

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

3

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$14.99

$

In Stock, Qty 9

0

4

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

5

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: INCLUDED IN KIT P/N 90008

$8.99

$

In Stock, Qty 20+

0

6

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.99

$

In Stock, Qty 20+

0

7

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 14

0

8

Echo 89012106360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

8

Echo 89012105360

LABEL, CHOKE

Note: CANADA MODELS

$1.99

$

In Stock, only 4 left!

0

9

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

10

Echo 12520049030

CARBURETOR - C1U-K47
(Superseded to 12520013311)

Note: S/N 001001 & UP TYPE 1

$94.99

$

In Stock, Qty 7

0

10

Echo 12520013311

CARBURETOR - C1U-K52
(Superseded to 12520013312)

Note: S/N 501001 & UP TYPE 1E

$94.99

$

In Stock, Qty 7

0

11

Echo 130016-42031

GASKET, INTAKE

Note: INCLUDED IN GASKET KIT P/N 88900021462

$1.49

$

In Stock, Qty 20+

0

12

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo V104000160

GASKET, EXHAUST

Note: INCLUDED IN GASKET KIT P/N 88900021462

$2.49

$

In Stock, Qty 20+

0

15

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.99

$

In Stock, only 2 left!

0

16

Echo 145806-42030

MUFFLER

$55.99

$

In Stock, only 1 left!

0

17

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

18

Echo 145866-42031

GASKET, EXHAUST

Note: S/N 001001 - 506571 (CANADIAN 001001 - 005513); INCLUDED IN GASKET KIT P/N 88900021462

$2.99

$

In Stock, only 2 left!

0

18

Echo V104000003

GASKET, EXHAUST

Note: S/N 506572 & UP (CANADIAN 005514 & UP); INCLUDED IN GASKET KIT P/N 88900021462

$3.49

$

In Stock, Qty 5

0

19

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

20

Echo 14586354130

GUIDE, EXHAUST - INNER

Note: S/N 001001 - 506571 (CANADIAN 001001 - 005513)

$4.49

$

Usually ships in 2-4 days

0

20

Echo A313000000

GUIDE, EXHAUST - INNER

Note: S/N 506572 & UP (CANADIAN 005514 & UP)

$4.99

$

Usually ships in 2-4 days

0

21

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

22

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

23

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

Echo 88900021462

GASKET KIT
(Superseded to 88900021463)

$18.99

$

Usually ships in 2-4 days

0

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0
