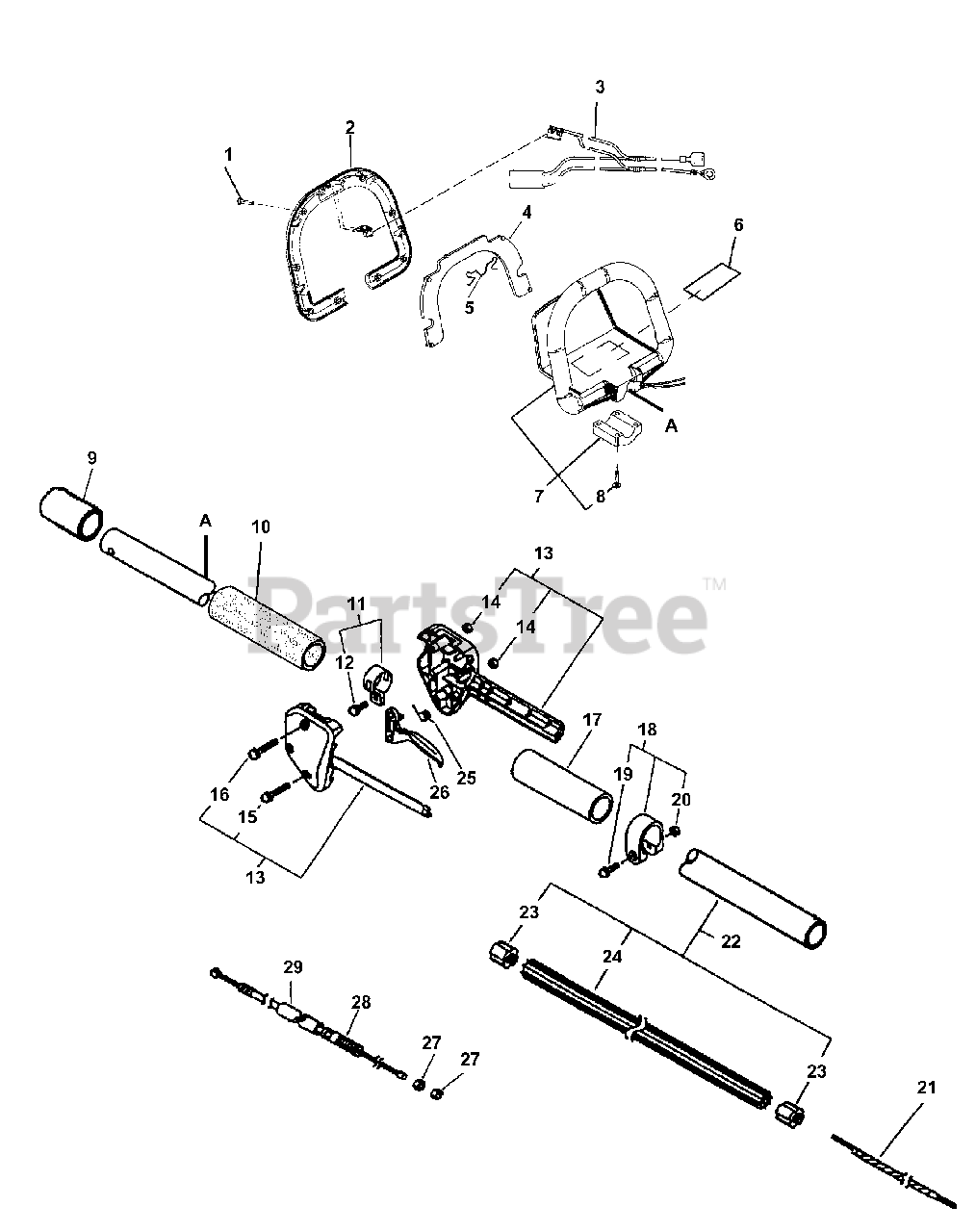

SHC-1700 - Echo Shaft Hedge Trimmer (Type 1E) Driveshaft, Handles, Throttle S/N: 501001 - 504767 Parts Diagram

Shaft Hedge Trimmer (Type 1E)

Driveshaft, Handles, Throttle S/N: 501001 - 504767 Parts Diagram

  • Title

1

Echo 88995021460

SCREW

$

$

Not available

2

Echo 35161021560

COVER, HANDLE

$15.99

$

Usually ships in 2-4 days

0

3

Echo 16340021460

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

4

Echo 17805421460

LEVER

$8.49

$

Usually ships in 2-4 days

0

5

Echo 16331121460

SPRING

$6.99

$

Usually ships in 2-4 days

0

6

Echo 89016021460

LABEL, CAUTION
(Superseded to Discontinued)

$

$

Not available

7

Echo 2001396

HANDLE ASSY, FRONT

Note: Includes ITEM 8

$47.99

$

Usually ships in 2-4 days

0

8

Echo 88995021560

SCREW 5

$0.99

$

In Stock, only 2 left!

0

9

Echo 61022555330

COLLAR
(Superseded to 61022555331)

$7.99

$

In Stock, only 2 left!

0

10

Echo 17812721460

TUBE
(Superseded to 17812721461)

$

$

Not available

11

Echo 30120152730

CLAMP KIT

Note: Includes ITEM 12

$11.99

$

Usually ships in 2-4 days

0

12

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

13

Echo 17800352730

THROTTLE BRACKET SET
(Superseded to 17800352731)

Note: Includes ITEMS 14-16

$12.99

$

Usually ships in 2-4 days

0

14

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

15

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

16

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

17

Echo 35121352730

GRIP, HANDLE
(Superseded to Discontinued)

$

$

Not available

18

Echo 61027252730

CLAMP

Note: INCLUDES ITEMS 19 & 20

$11.99

$

Usually ships in 2-4 days

0

19

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

20

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

21

Echo 61001321460

DRIVESHAFT - FLEXIBLE

$13.99

$

Usually ships in 2-4 days

0

22

Echo 61020621460

MAIN PIPE ASSY

Note: INCLUDES ITEMS 23 & 24

$45.99

$

Usually ships in 2-4 days

0

23

Echo 61024655330

STOPPER

$5.49

$

In Stock, only 2 left!

0

24

Echo 61021721460

LINER - FLEXIBLE

$11.99

$

Usually ships in 2-4 days

0

25

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

26

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

27

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

28

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

29

Echo 17812721360

TUBE, PROTECTIVE - CORRUGATED
(Superseded to Discontinued)

$

$

Not available
